995367 – Revision A Page 26 of 39
Refitting / Replacement
Step 14 - Refitting is a reversal of the removal process noting the following points:

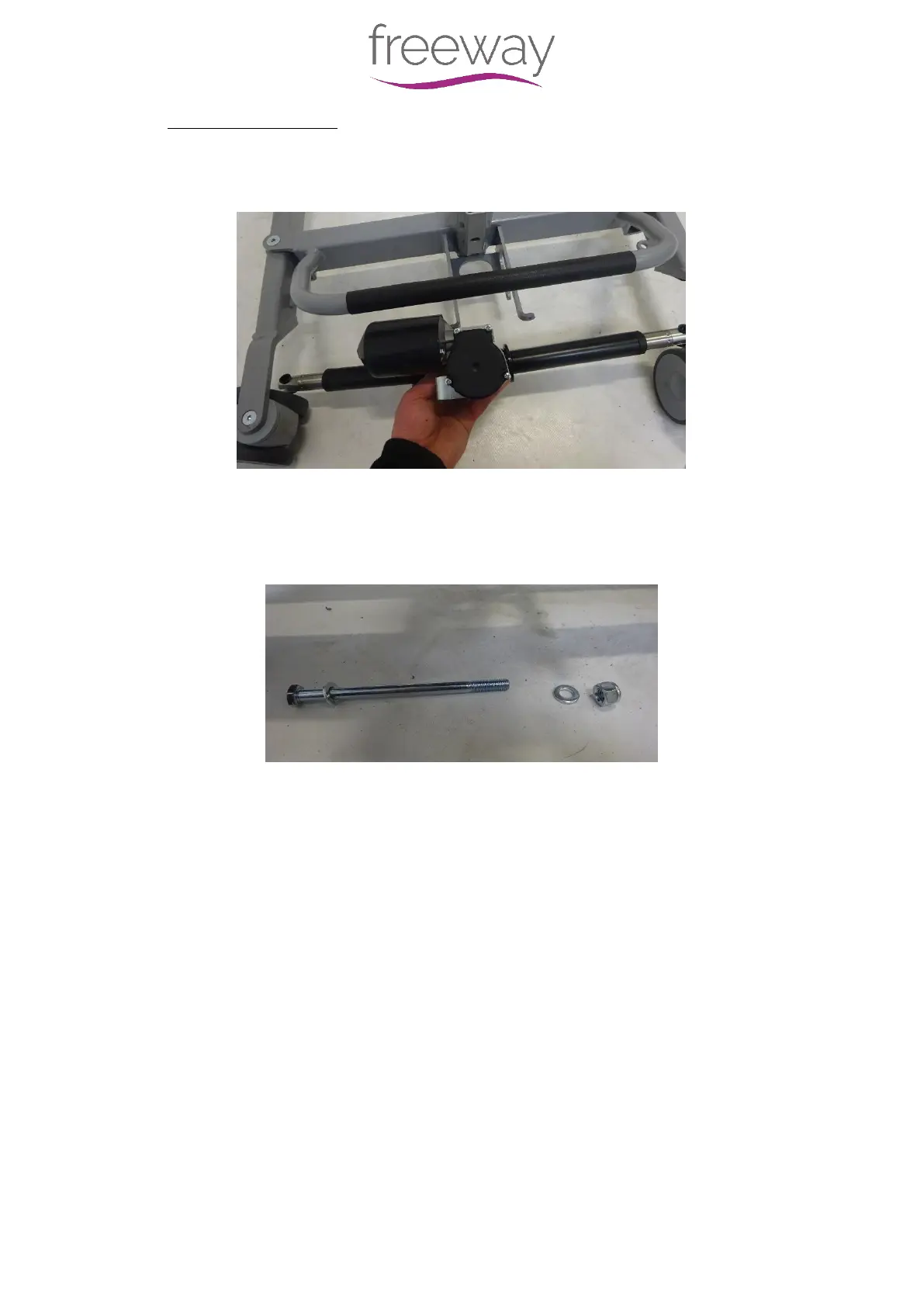

A) When placing the Actuator back onto the Base, ensure it is the correct orientation.
(Use image below for reference)
B) Ensure that the two leg fixing points are aligned correctly and that the actuator
slides into position on the centre bracket of the base.
C) When fixing the bolt below, ensure that the two washers and nut are used in the
correct order: bolt, washer, base, washer, and nut.
D) When fixing the Actuator and Pins to the Leg fixing points, ensure to use brand new
retaining clips to secure the Actuator. DO NOT reuse the current clips as their
structure has been damaged.
