9.5 – Lift Actuator
In this section it will explain the correct procedure on removing and reinstalling the Lift
Actuator for servicing procedures or replacement.
Removal
Step 1 – Remove the Lift Actuator Cable. (See section 9.2.2)

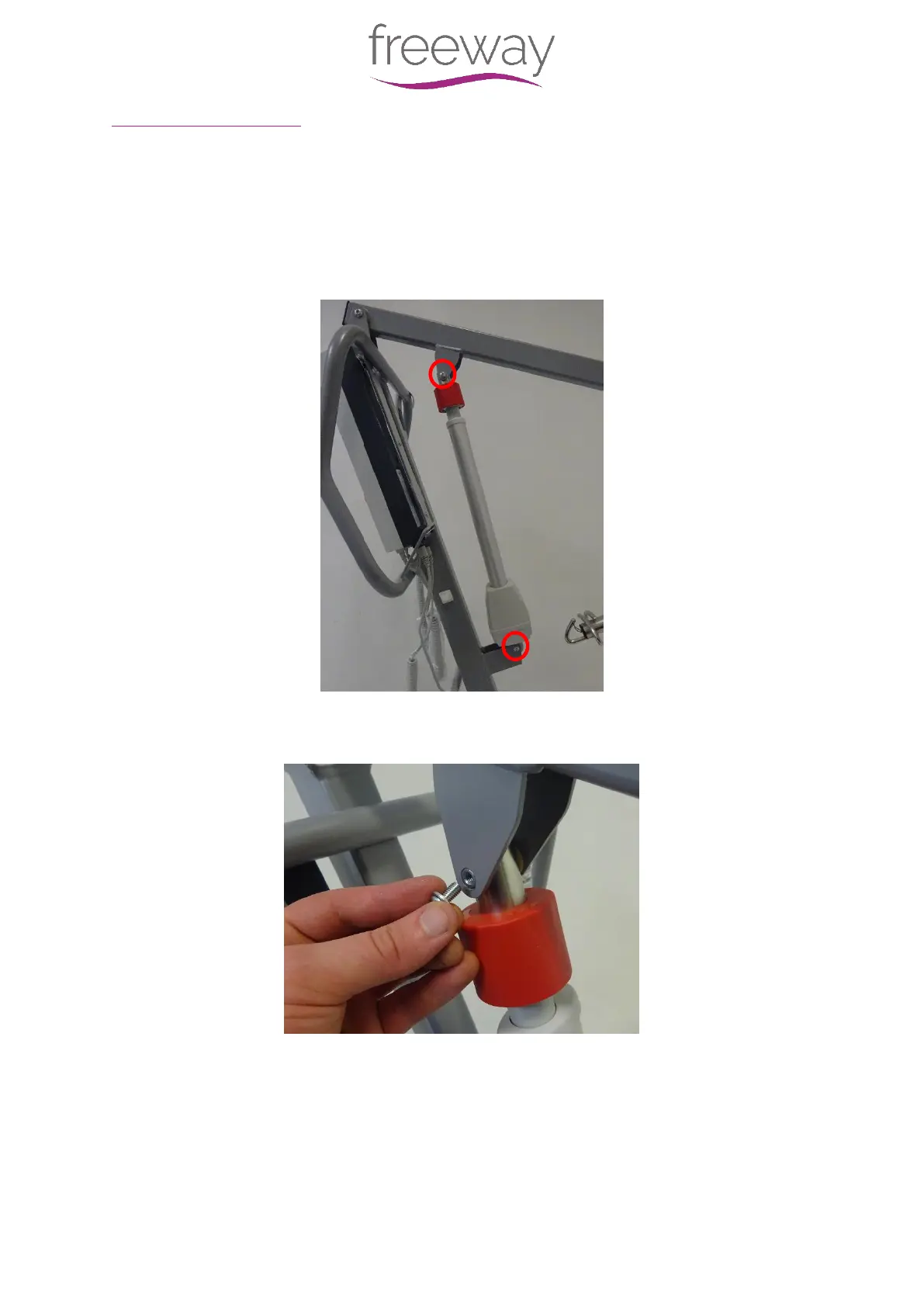

Step 2 - Remove the Four Black Caps from the Actuator fixing points.
Step 3 – Using two 5mm Allen Keys, remove a screw and washer from one end of the
Actuators top fixing point as shown.
Step 4 – Pull the Pin out from the top fixing to release the top end of the Actuator. Once this
pin has been removed, the boom will need manual support to disallow it from falling.
