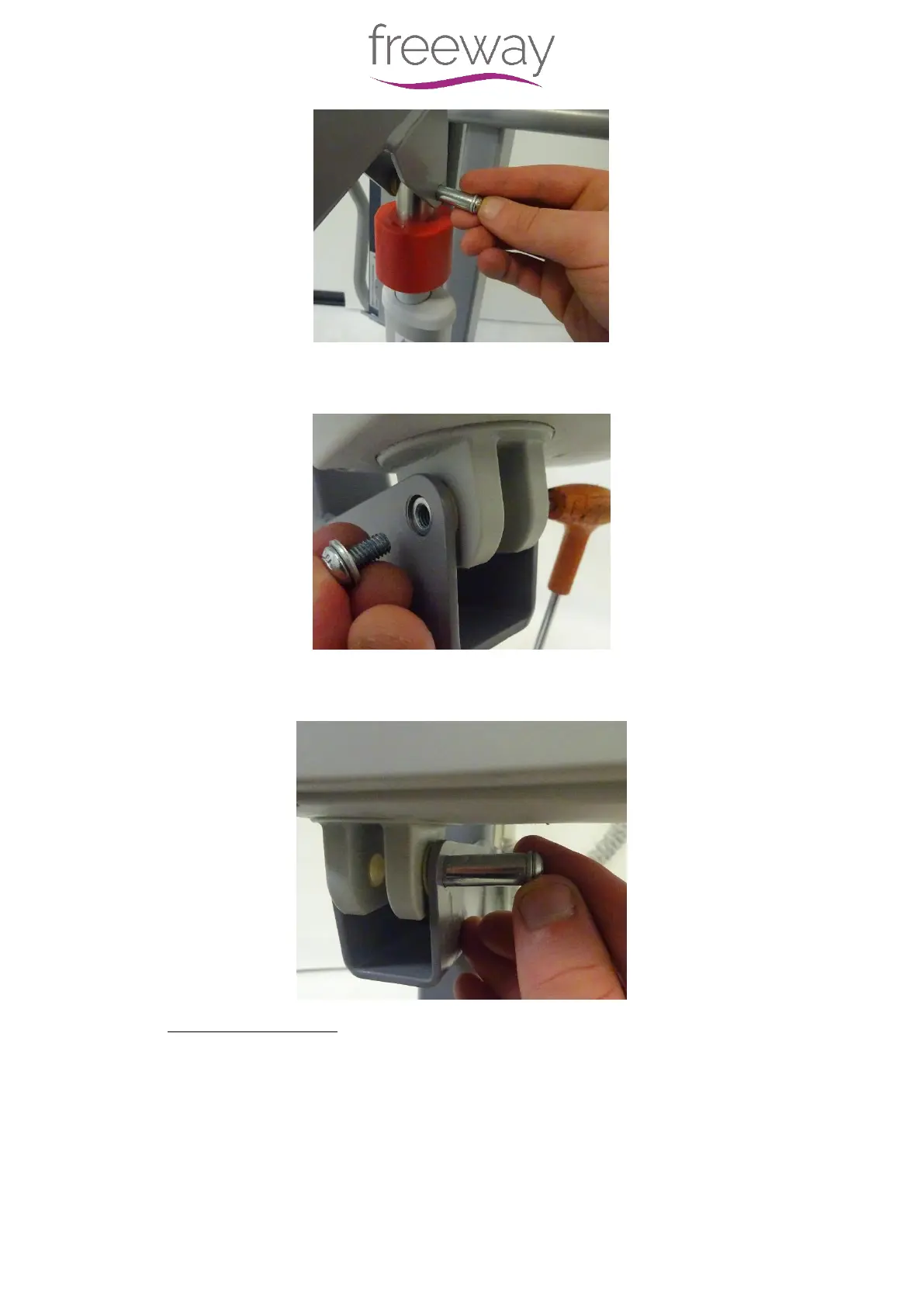

Step 5 – Using two 5mm Allen Keys, remove a screw and washer from one end of the
Actuators bottom fixing point as shown.
Step 6 – Pull the Pin out from the bottom fixing to release the top end of the Actuator. The
Actuator can then be removed from the Hoist.
Refitting / Replacement
Step 7 - Refitting is a reversal of the removal process noting the following point:
A) Ensure the Actuator is fitted in the correct orientation. With the LIANK Specification
label facing towards the rear castors of the Hoist.
B) Ensure the Nuts are tight and secure the Actuator, do not over tighten as this will
bend the framework and will affect the functioning of the Actuator.
C) Apply Loctite 243 to the thread of the Pin where the nut will be secured.
