Frick XJS 95M User Manual

070-450 IOM (NOV 13)
Page 11
XJF ROTARY SCREW COMPRESSOR
INSTALLATION
PORT CONNECTION SIZE
1* 3/4 - 14 NPTF
2 1/8 - 27 NPTF
3 3/8 - 18 NPTF
4 3/8 - 18 NPTF
5 3/4 - 14 NPTF
7 1/4 - 18 NPTF
8 3/8 - 18 NPTF
10 1/4 - 18 NPTF
11 1/4 - 18 NPTF
12 1/4 - 18 NPTF
16 3/4 - 14 NPTF
18** 1/2 - 14 NPTF
20 1/8 - 27 NPTF
21 3/4 - 14 NPTF
22 1/4 - 18 NPTF

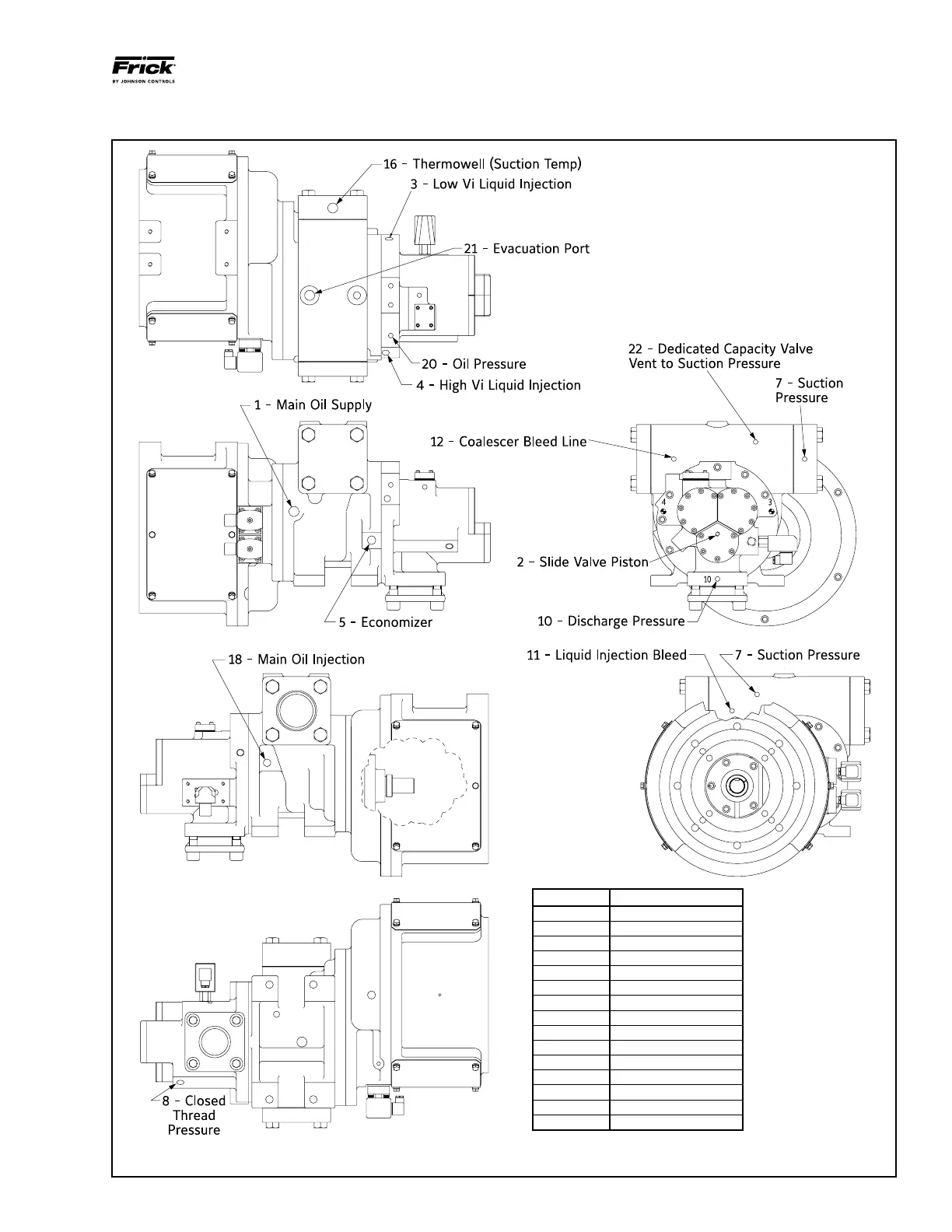

XJF 95 COMPRESSOR PORT LOCATIONS
* Main oil supply needs full oil pressure
** Main oil injection needs regulation valve installed
