Frick XJS 95M User Manual

070-450 IOM (NOV 13)
Page 32
XJF ROTARY SCREW COMPRESSOR
MAINTENANCE
Date: __________________________________________ Sales Order Number: ________________________________
End User: _______________________________________ Installing Contractor: ________________________________
Address: __________________________________________ Service Technician: __________________________________
Equipment ID (As in Microlog): ____________________
Compressor Serial Number: __________________________
Unit Serial Number: _________________________________
National Board Number: _____________________________
Running Hours: _____________________________________
Manufacturer and Size of Coupling: ____________________
Motor Manufacturer: ________________________________
Motor Serial Number: ________________________________
RPM: ________ Frame Size: ___________ H.P. __________
Refrigerant:
Ambient Room Temperature: ____________°F
Operating Conditions:

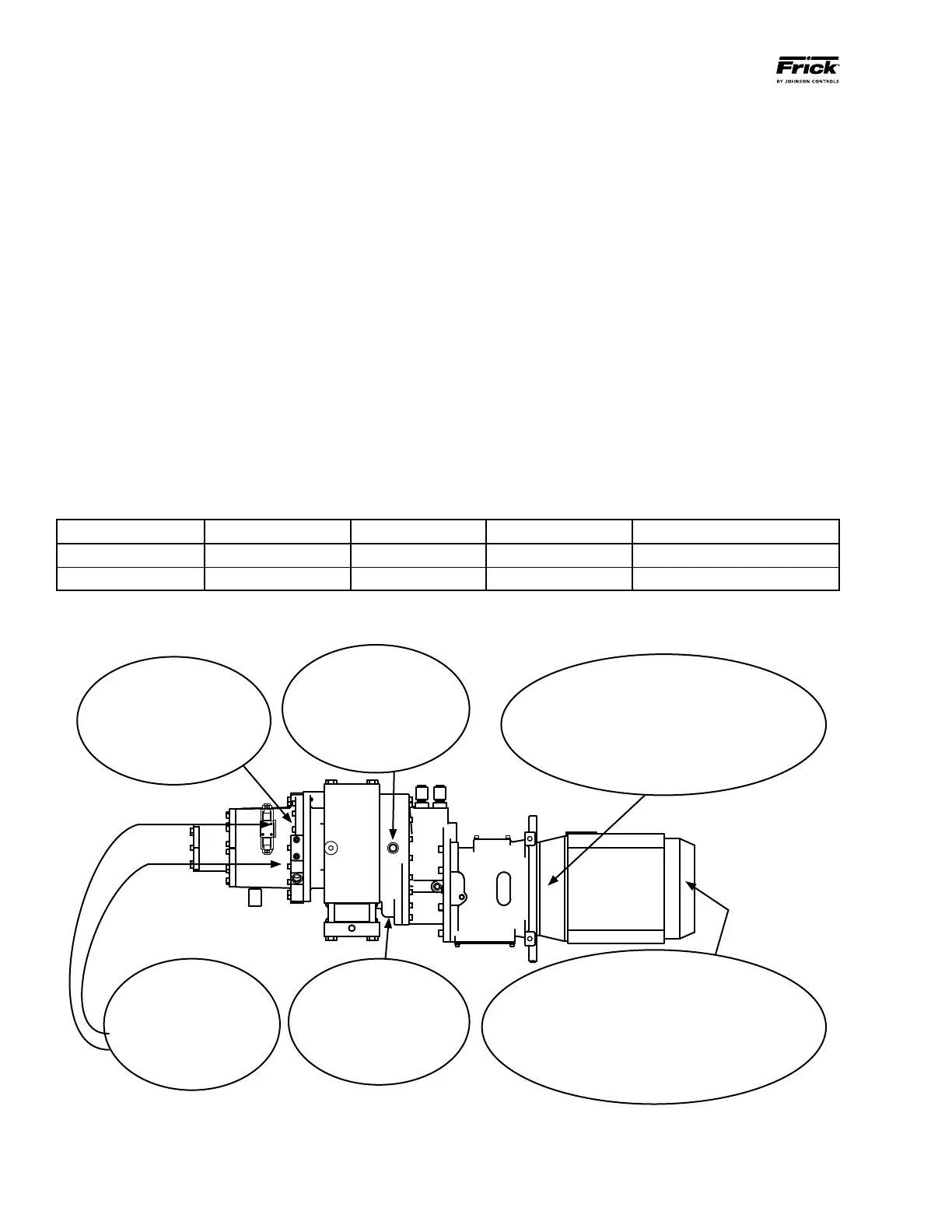

VIBRATION DATA SHEET
SUCTION DISCHARGE OIL SEPARATOR Slide Valve Position %
Press # Press # Press # Temp °F Vi Ratio
Temp °F Temp °F Temp °F F.L.A. %
Compressor Outboard
(Noncoupled End)
Axial Direction
____.____ IPS Overall
Compressor Inboard
(Coupling End Center)
Vertical Direction
____.____ IPS Overall
Motor Inboard (Coupled End)
Horizontal _______ . ______ IPS Overall
Vertical _______ . ______ IPS Overall
Axial _______ . ______ IPS Overall
Compressor
Outboard
Vertical Direction
____.____ IPS (Male)
____.____ IPS (Female)
Compressor Inboard
(Jackshaft)
Horizontal Direction
____.____ IPS Overall
Motor Outboard (Noncoupled End)
Horizontal _______ . ______ IPS Overall
Vertical _______ . ______ IPS Overall
Axial _______ . ______ IPS Overall
