Frick XJS 95M User Manual

070-450 IOM (NOV 13)
Page 13
XJF ROTARY SCREW COMPRESSOR
INSTALLATION

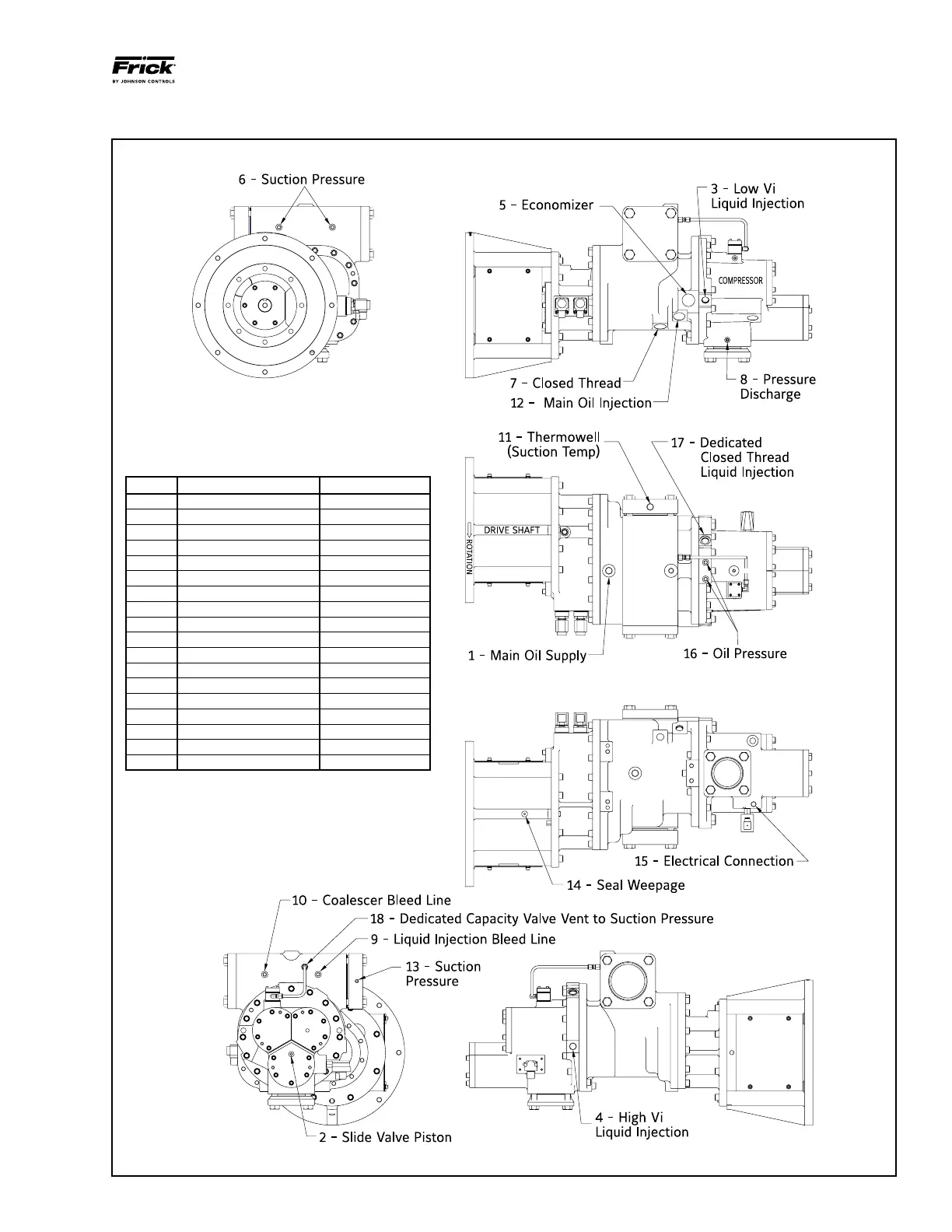

XJF 151 COMPRESSOR PORT LOCATIONS
PORT CONNECTION SIZE O-RING
1*
1Z\zn - 12 UN-2B
980A0012K66
2 7/16 - 20 UNF-2B 980A0012K58
3
1Z\zn - 12 UN-2B
980A0012K66
4
1Z\zn - 12 UN-2B
980A0012K66
5
1M\, - 12 UN-2B
980A0012K72
6 9/16 - 18 UNF-2B 980A0012K60
7
1Z\zn - 12 UN-2B
980A0012K66
8 7/16 - 20 UNF-2B 980A0012K58
9 9/16 - 18 UNF-2B 980A0012K60
10 9/16 - 18 UNF-2B 980A0012K60
11 3/4 - 14 NPTF N/A
12**
1Z\zn - 12 UN-2B
980A0012K66
13 1/4 - 18 NPTF N/A
14 1/8 - 27 NPTF N/A
15 1/2 - 14 NPTF N/A
16 9/16 - 18 UNF-2B 980A0012K60
17
1Z\zn - 12 UN-2B
980A0012K66
18 9/16 - 18 UNF-2B 980A0012K60
* Main oil supply needs full oil pressure
** Main oil injection needs regulation valve installed
