106 PB
PARTS CATALOG
230V Outdoor Unit 24k
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400810 1542623 ‑ panel parts FPHSR24A3A 1
2 67400307 1542217 ‑ propeller fan blade FPHSR24A3A 1
3 67400303 1561964 ‑ DC motor FPHSR24A3A 1
4 67400811 1561919 ‑ motor supporter FPHSR24A3A 1
5 #N/A FPHSR24A3A 1
6 67400813 1878885 ‑ top plate part FPHSR24A3A 1
7 67400814 1819106 ‑ back guard FPHSR24A3A 1
8 67400815 1854549 ‑ Condenser assembly FPHSR24A3A 1
9 67400816 1814292 ‑ base holder part FPHSR24A3A 1
10 67400817 1534867 ‑ valve seat FPHSR24A3A 1
11 67400297 1205797 ‑ PFC inductance FPHSR24A3A 1
12 67400818 2017922 ‑ 4‑way reversing valve
assembly
FPHSR24A3A 1
13 67400819 1830018 ‑ Compressor FPHSR24A3A 1
14 67400196 1847142 ‑ Strong electricity
connect wire
FPHSR24A3A 1
15 67400304 1867906 ‑ Electronic expansion
valve assembly
FPHSR24A3A 1
16 67400310 1536052 ‑ 3/8 2‑way valve FPHSR24A3A 1
17 67400305 1456114 ‑ 5/8 3‑way valve FPHSR24A3A 1

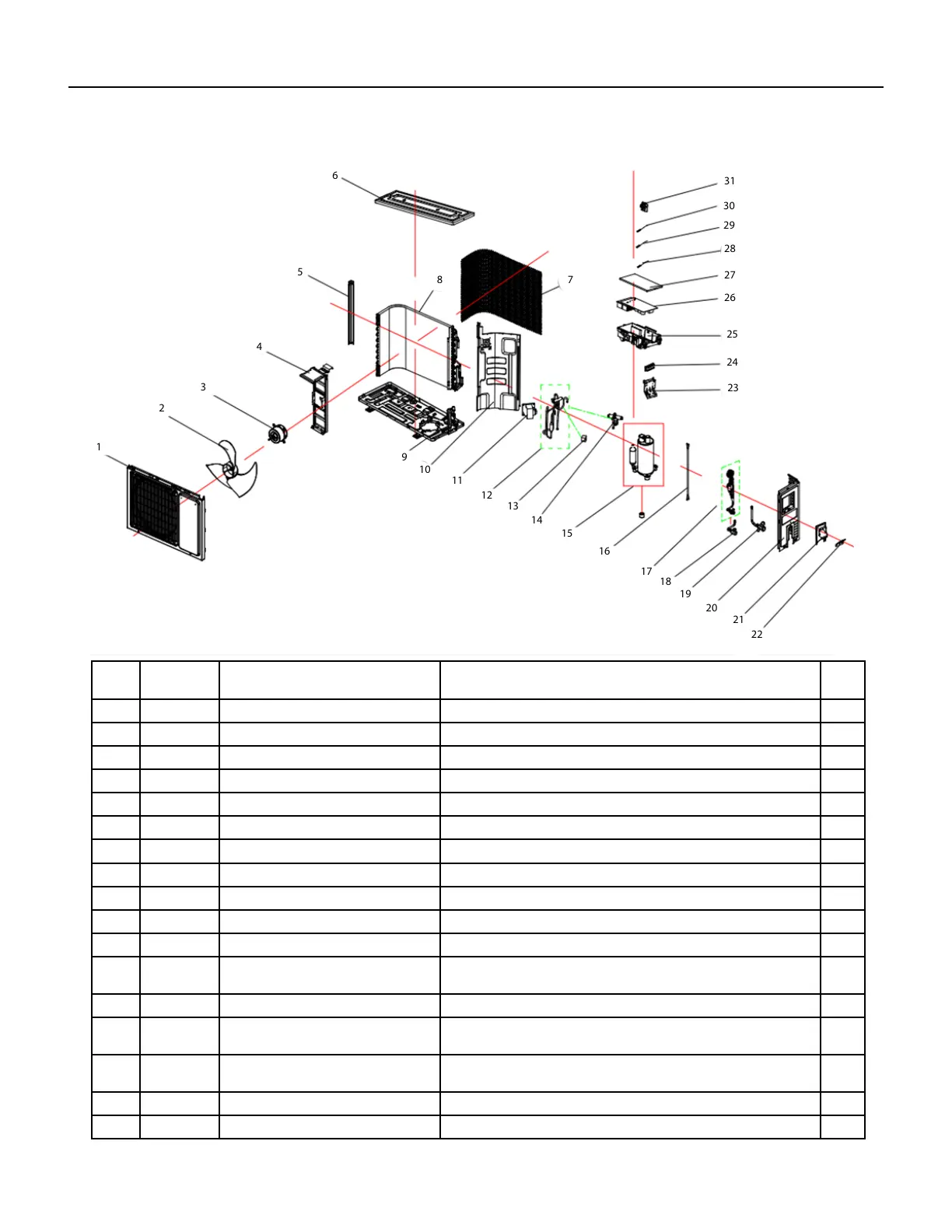

Figure 911
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
