PARTS CATALOG
230V Indoor Unit 18K

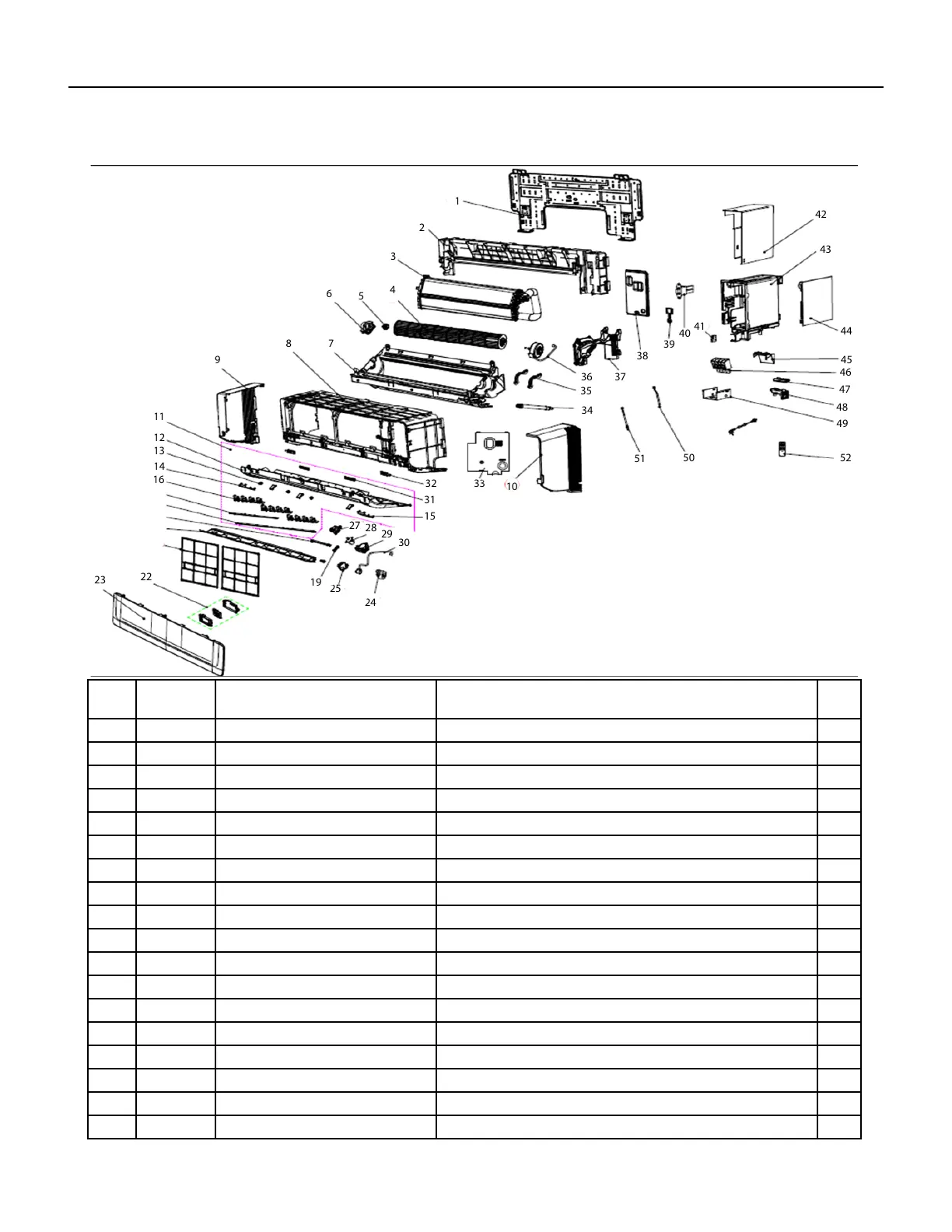

Figure 905
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400463 installation plate FPHFW18A3A, FPHFW18A3B 1
4 67400464 Blower Wheel FPHFW18A3A, FPHFW18A3B 1
5 67400230 bearing FPHFW18A3A, FPHFW18A3B 1
6 67400466 Gear FPHFW18A3A, FPHFW18A3B 1
7 67400467 Air Duct Assembly ‑ frame FPHFW18A3A, FPHFW18A3B 1
8 67400468 Main Shell FPHFW18A3A, FPHFW18A3B 1
9 67400469 Left Side Panel FPHFW18A3A, FPHFW18A3B 1
10 67400470 Right Side Panel FPHFW18A3A, FPHFW18A3B 1
11 67400471 air outlet parts FPHFW18A3A, FPHFW18A3B 1
12 67400472 air outlet FPHFW18A3A, FPHFW18A3B 2
13 67400473 axis sheatht FPHFW18A3A, FPHFW18A3B 2
14 67400474 ornamental part FPHFW18A3A, FPHFW18A3B 2
15 67400475 ornamental part FPHFW18A3A, FPHFW18A3B 2
16 67400476 Vertical Level Vane FPHFW18A3A, FPHFW18A3B 2
17 67400477 center staff FPHFW18A3A, FPHFW18A3B 2
18 67400478 center staff FPHFW18A3A, FPHFW18A3B 1
20 67400479 Wire Vane FPHFW18A3A, FPHFW18A3B 1
21 67400480 Filters FPHFW18A3A, FPHFW18A3B 1
1
2
3
4
5
4
6
78
9
11
12
13
14
16
23
22
19
25
24
27
28
29
30
15
31
32
33
10
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
5250
51
20
21
17
26
18
