88 PB
PARTS CATALOG
230V Indoor Unit 9-12K
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400571 1959683 ‑ installation plate FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
2 67400572 1959764 ‑ Supporting button FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
3 67400573 2008502 ‑ Refrigeration system FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
4 67400154 1466014 ‑ cross‑ow fan blade FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
5 67400155 1223739 ‑ bearing FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
6 67400466 1964935 ‑ bafe FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
7 67400576 1965029 ‑ Air Duct Assembly FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
8 67400577 1959767 ‑ shell FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
9 67400578 1964937 ‑ decorative panel FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
10 67400579 1965032 ‑ air outlet parts FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
11 67400580 1959771 ‑ air outlet FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
12 67400473 1892482 ‑ axis sheath FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
13 67400582 1964944 ‑ ornamental part FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
14 67400583 1950205 ‑ axes FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
15 67400584 1964941 ‑ Vertical Level Vane FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 2
16 67400585 1964942 ‑ center staff FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
17 67400586 1964943 ‑ center staff FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
18 67400587 1959772 ‑ level vane FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1
19 67400179 1506312 ‑ Filter net FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 2
20 67400177 1874771 ‑ Display Component FPHFW09A3A, FPHFW09A3B, FPHFW12A3A, FPHFW12A3B 1

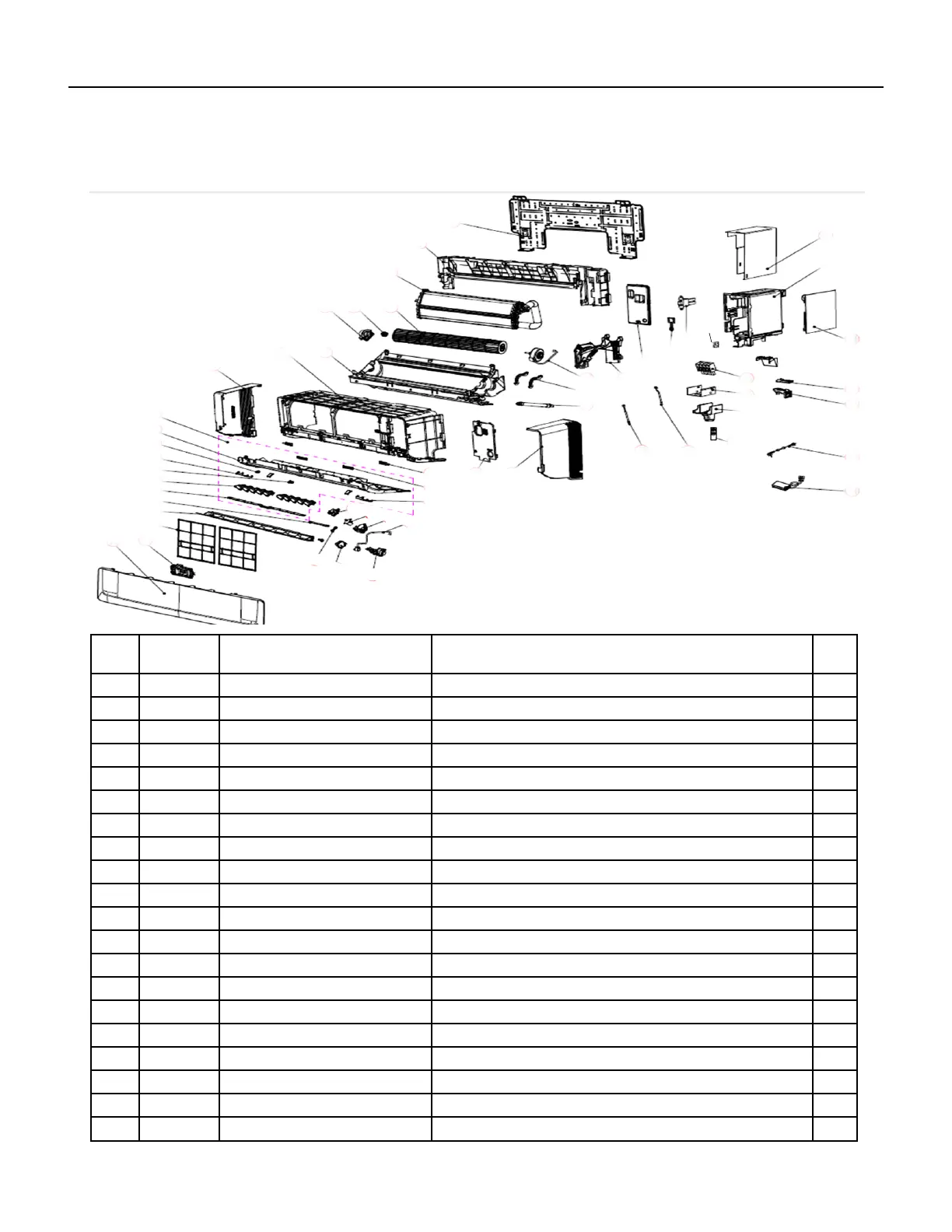

Figure 902
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
