Friedrich FPHSR36A3B - Printed Circuit Board Identification (Indoor)

51 PB
COMPONENTS TESTING

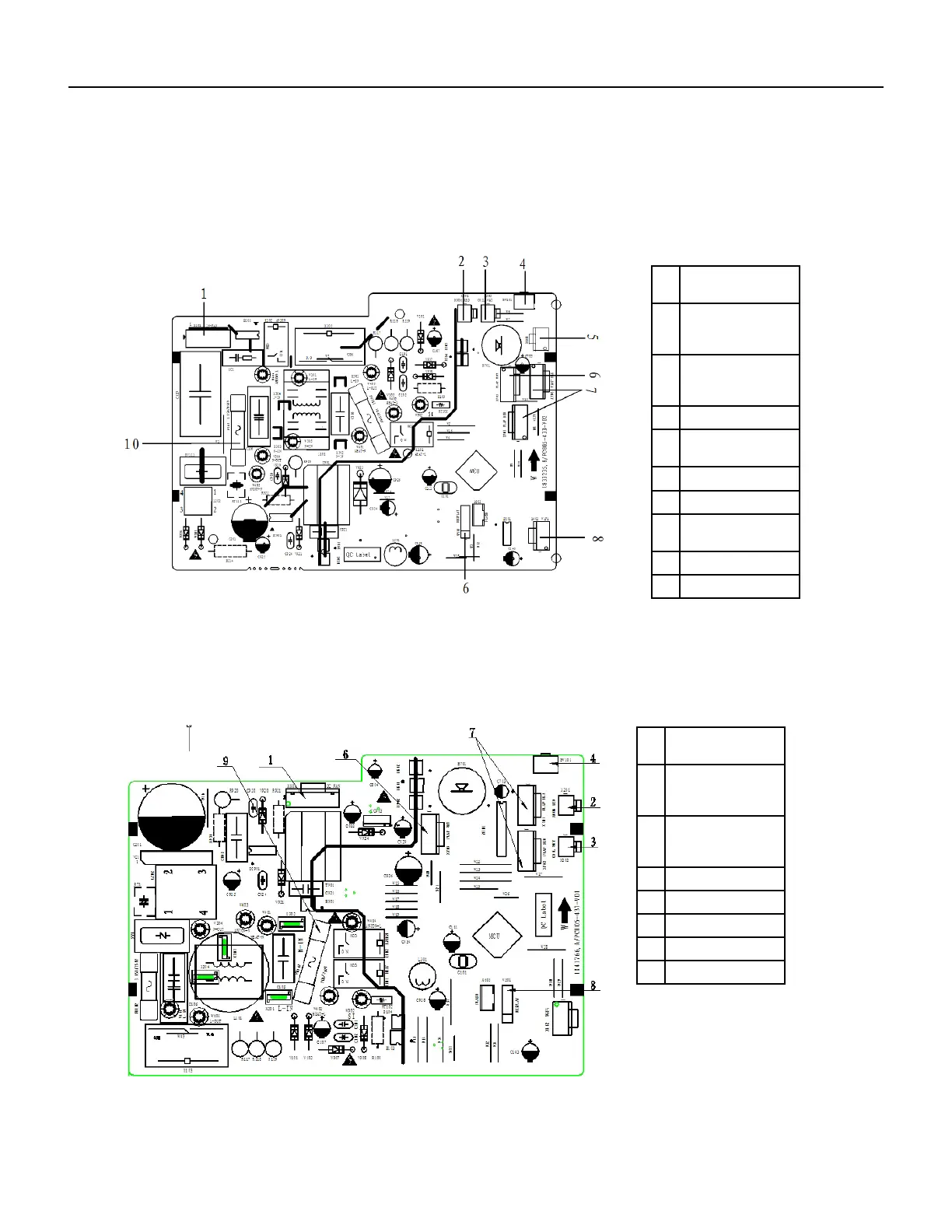

Printed Circuit Board (Indoor)
Figure 609
1833235 Indoor Unit Printed Circuit Board Identication
Figure 610
1841766/1898224 Indoor Unit Printed Circuit Board Identication
1 Interface of PG
motor
2 Room
temperature
sensor
3 Pipe
temperature
sensor
4 Switch button
5 Feedback from
PG motor
6 Up＆down swing
7 Left＆right swing
8 Wiring control or
wi interface
9 Display interface
10 Protective tube
1 Interface of PG
motor
2 Room
temperature
sensor
3 Pipe
temperature
sensor
4 Switch button
6 Up＆down swing
7 Left＆right swing
8 Display interface
9 Protective tube
