110 PB
PARTS CATALOG
115V Outdoor Unit 9K
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400747 1832902 ‑ panel parts FPHSR09A1A 1
2 67400335 1405123 ‑ propeller fan blade FPHSR09A1A 1
3 67400182 1457759 ‑ DC motor FPHSR09A1A 1
4 67400748 1824869 ‑ motor supporter FPHSR09A1A 1
5 67400749 1824871 ‑ mounting plate FPHSR09A1A 1
6 67400750 1824865 ‑ upper board FPHSR09A1A 1
7 67400751 1824902 ‑ back guard FPHSR09A1A 1
7 67400752 1824903 ‑ left guard FPHSR09A1A 1
8 67400753 1948121 ‑ Condenser assembly FPHSR09A1A 1
9 67400754 1854218 ‑ base holder part FPHSR09A1A 1
10 67400755 1895382 ‑ clapboard FPHSR09A1A 1
11 67400268 1302261 ‑ PFC inductance FPHSR09A1A 1
12 67400756 2007558 ‑ 4‑way valve assembly FPHSR09A1A 1
13 67400194 1258654 ‑ 4‑way valve FPHSR09A1A 1
14 67400758 1906608 ‑ Four‑way valve coil FPHSR09A1A 1
15 67400759 1838380 ‑ Compressor FPHSR09A1A 1
16 67400760 1822371 ‑ Compressor connect
wire
FPHSR09A1A 1

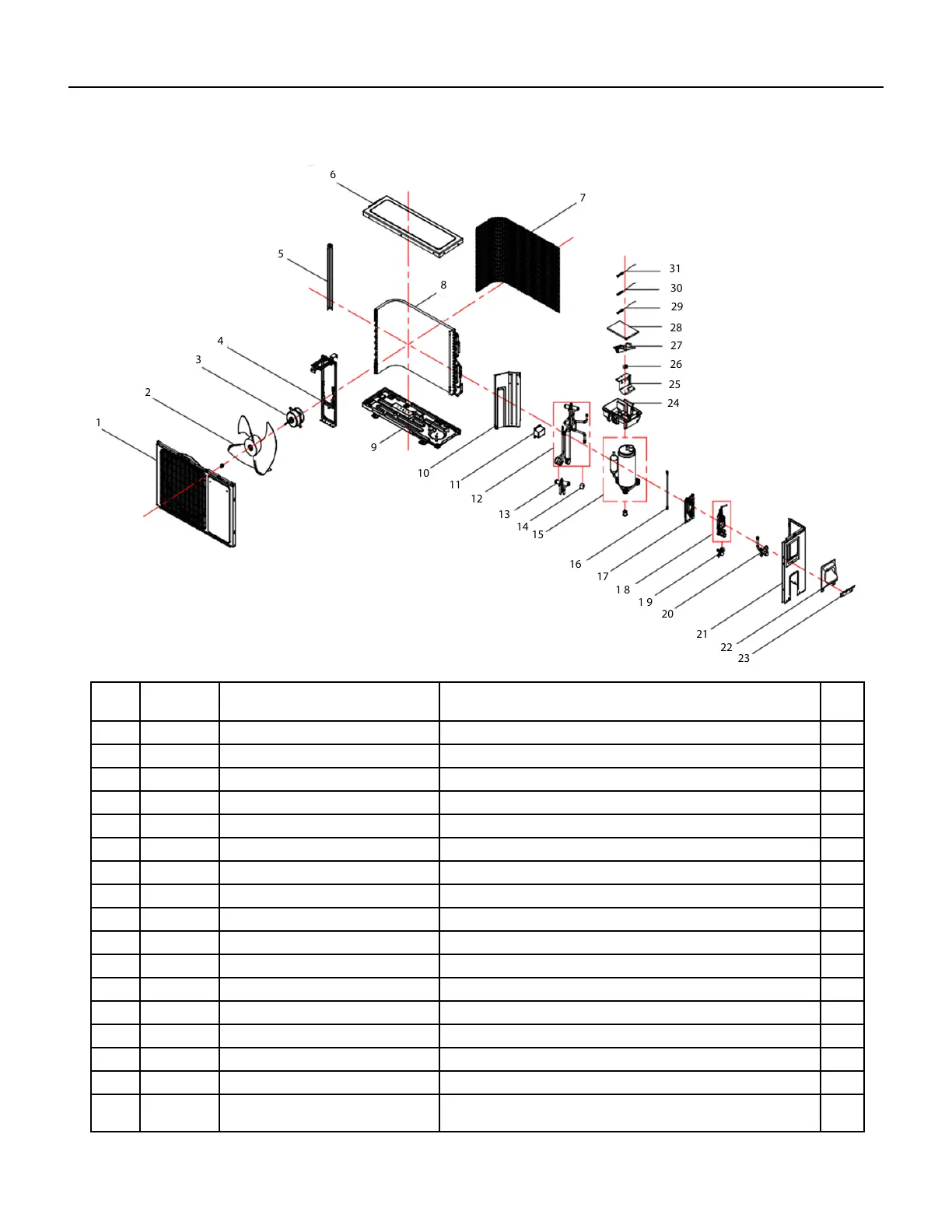

Figure 913
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1 8
1 9
20
21
22
23
24
25
26
27
28
29
30
31
To Next Page
