96 PB
PARTS CATALOG
230V Indoor Unit 24K

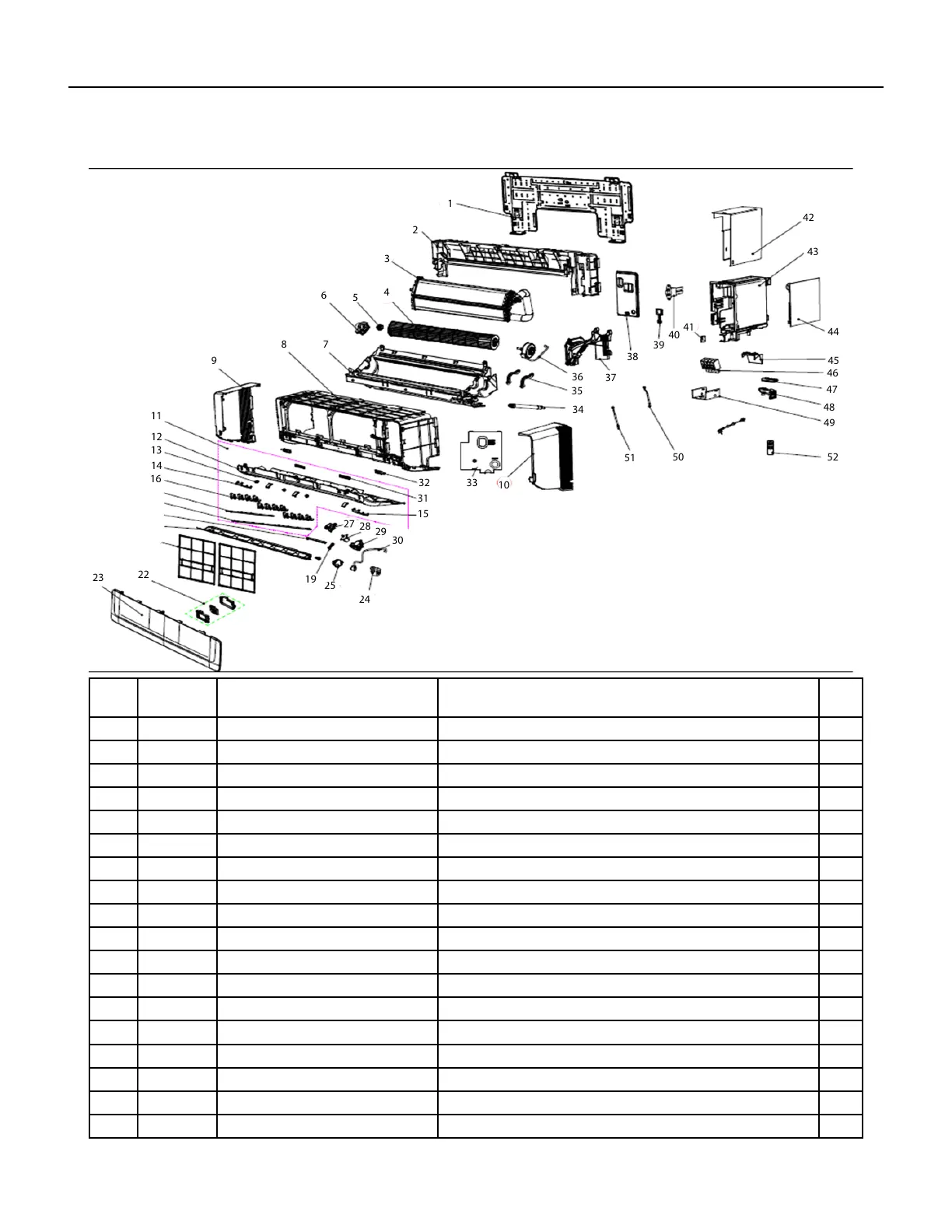

Figure 906
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400463 1981622 ‑ installation plate FPHFW24A3A, FPHFW24A3B 1
2 67400534 1964593 ‑ Main Air Frame FPHFW24A3A, FPHFW24A3B 1
3 67400535 2012367 ‑ EVAP COIL FPHFW24A3A, FPHFW24A3B 1
4 67400464 1541633 ‑ Blower Wheel FPHFW24A3A, FPHFW24A3B 1
5 67400230 1223738 ‑ bearing FPHFW24A3A, FPHFW24A3B 1
6 #N/A FPHFW24A3A, FPHFW24A3B 1
7 67400467 1990852 ‑ Lower Air Duct FPHFW24A3A, FPHFW24A3B 1
8 67400468 1961593 ‑ Main Shell FPHFW24A3A, FPHFW24A3B 1
9 67400469 1977016 ‑ Left Panel FPHFW24A3A, FPHFW24A3B 1
10 67400470 1977018 ‑ Right Panel FPHFW24A3A, FPHFW24A3B 1
11 67400471 2025744 ‑ Louver Kit FPHFW24A3A, FPHFW24A3B 1
*12 67400472 air outlet FPHFW24A3A, FPHFW24A3B 1
*13 67400473 axis sheath FPHFW24A3A, FPHFW24A3B 1
*14 67400474 ornamental part FPHFW24A3A, FPHFW24A3B 1
*15 67400475 ornamental part FPHFW24A3A, FPHFW24A3B 1
*16 67400476 Vertical Level Vane FPHFW24A3A, FPHFW24A3B 1
*17 67400477 center staff FPHFW24A3A, FPHFW24A3B
18 #N/A
1
2
3
4
5
4
6
78
9
11
12
13
14
16
23
22
19
25
24
27
28
29
30
15
31
32
33
10
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
5250
51
20
21
17
26
18
