102 PB
PARTS CATALOG
230V Outdoor Unit 12k
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400180 1847919 ‑ panel parts FPHSR12A3A 1
2 67400181 1556766 ‑ propeller fan blade FPHSR12A3A 1
3 67400182 1457759 ‑ DC motor FPHSR12A3A 1
4 67400183 1849292 ‑ motor supporter assy FPHSR12A3A 1
5 67400184 1846086 ‑ mounting plate FPHSR12A3A 1
6 67400185 1846082 ‑ upper board FPHSR12A3A 1
7 67400187 1854579 ‑ back guard FPHSR12A3A 1
7 67400186 1854580 ‑ back guard FPHSR12A3A 1
8 67400188 1909061 ‑ Condenser assembly FPHSR12A3A 1
9 67400189 1851356 ‑ base holder part FPHSR12A3A 1
10 67400776 2008778 ‑ clapboard part FPHSR12A3A 1
11 67400283 1829624 ‑ PFC inductance FPHSR12A3A 1
12 67400777 2007913 ‑ 4‑way reversing valve
assembly
FPHSR12A3A 1
13 67400193 1511783 ‑ Four‑way valve coil FPHSR12A3A 1
14 67400194 1258654 ‑ 4‑way valve FPHSR12A3A 1
15 67400779 1821191 ‑ Compressor FPHSR12A3A 1
16 67400760 1822371 ‑ Compressor connect
wire
FPHSR12A3A 1

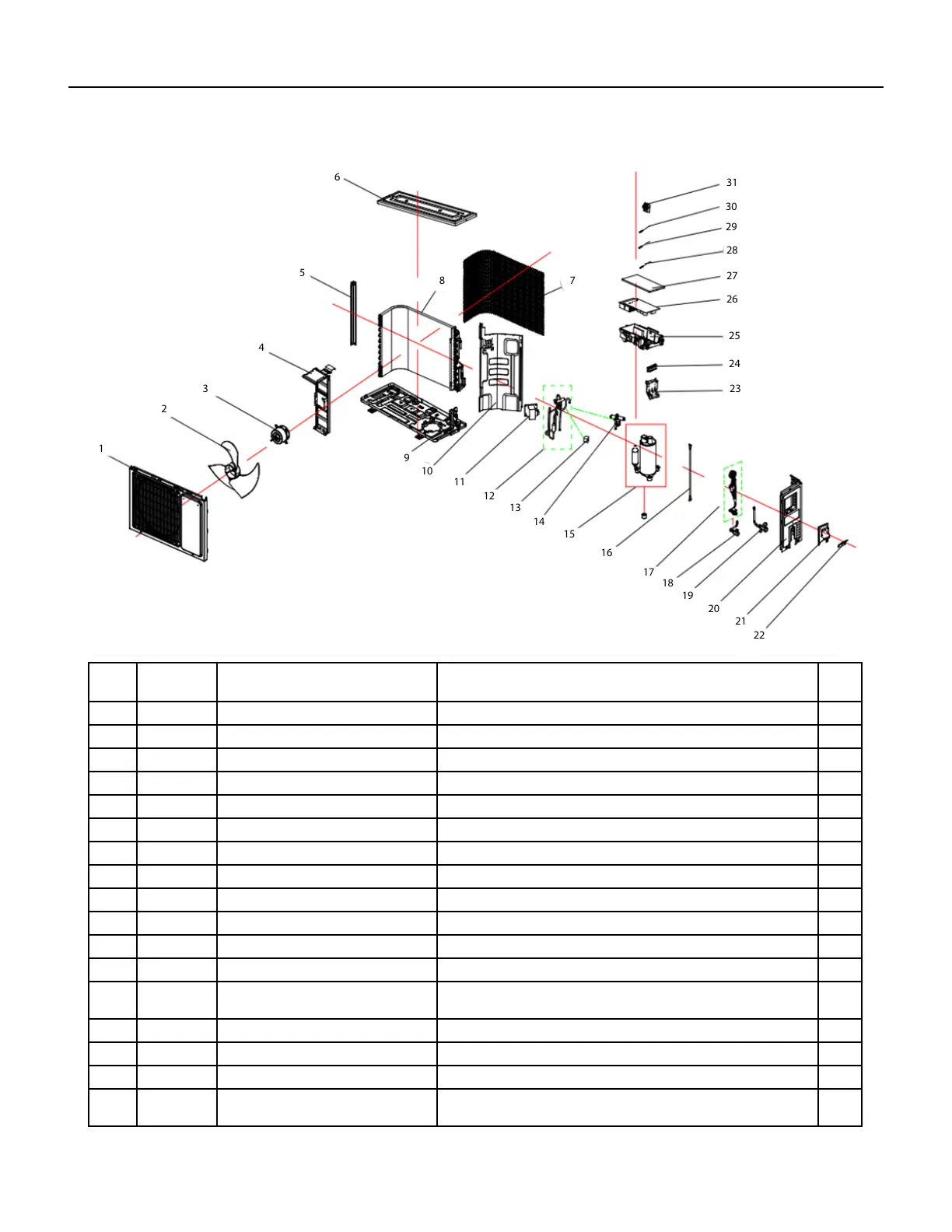

Figure 909
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
To Next Page
