98 PB
PARTS CATALOG
230V Indoor Unit 36k

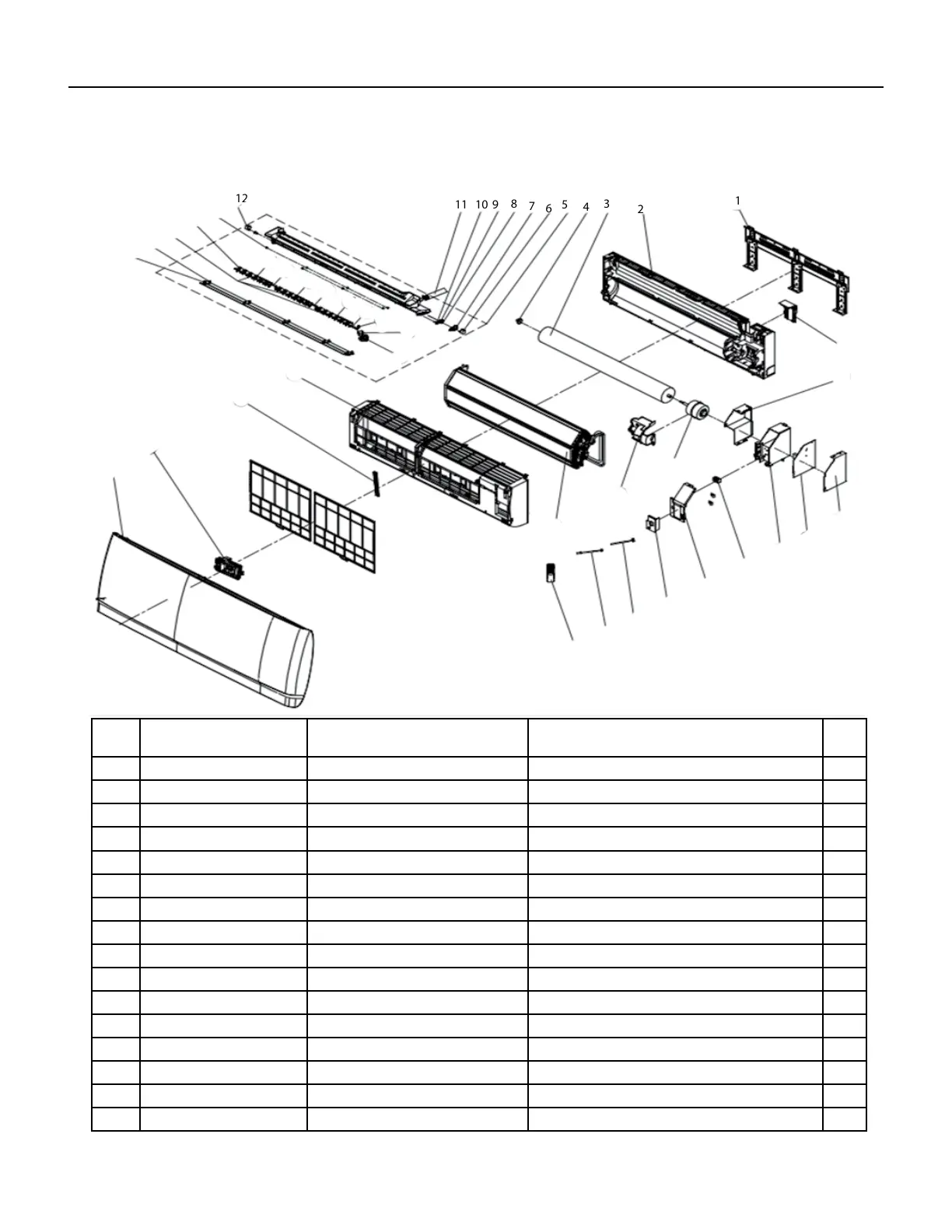

Figure 907
ITEM PART NUMBER PART DESCRIPTION USED ON MODEL QTY
1 67400613 1896952 ‑ installation plate assy FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
2 67400614 1868777 ‑ base holder part FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
3 67400318 1511626 ‑ cross‑ow fan blade FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
4 67400615 1248742 ‑ bearing FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
5 67400616 1868561 ‑ air outlet parts FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
6 67400617 1225096 ‑ Step motor FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
7 67400618 1512013 ‑ mounting plate FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
8 67400619 1508998 ‑ axes FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
9 67400620 1509001 ‑ center staff FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
10 67400621 1509000 ‑ axes FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
11 67400172 1470426 ‑ Water pipe parts FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
12 67400623 1516166 ‑ Step motor FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
13 67400624 1530981 ‑ Vertical Level Vane FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
14 67400173 1222824 ‑ axis sheath FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
15 67400626 1550958 ‑ Vertical Level Vane FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
16 67400627 1530984 ‑ center staff FPHSW36A3A, FPHSW36A3B, FPHSW36A3C 1
1
2
3
4
5
6
7
8
91011
12
13
14
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
