86 PB

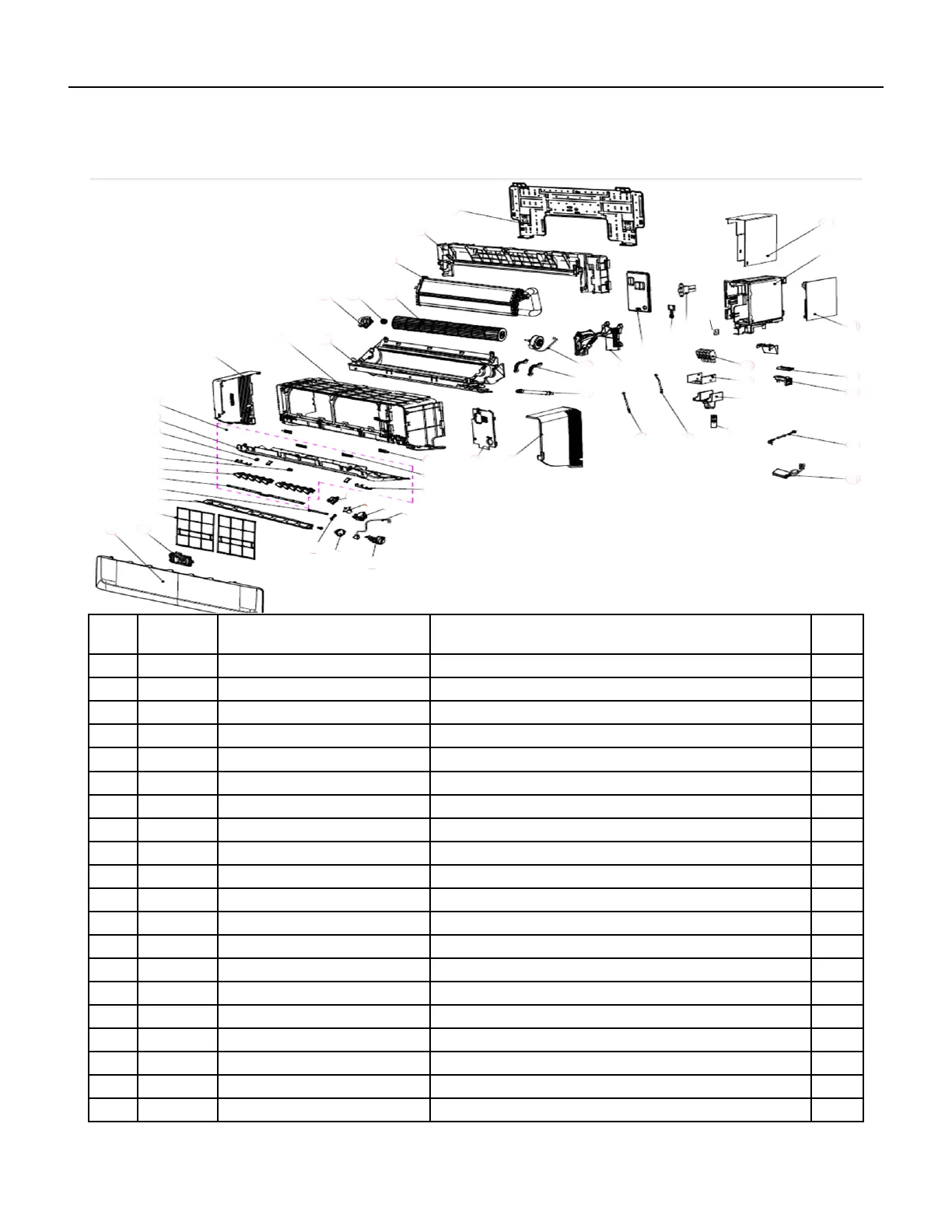

FIgure 901
PARTS CATALOG
115V Indoor Unit 9-12K
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400571 1959683 ‑ installation plate FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
2 67400572 1959764 ‑ Supporting button FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
3 67400573 2008502 ‑ Refrigeration system FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
4 67400154 1466014 ‑ cross‑ow fan blade FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
5 67400155 1223739 ‑ bearing FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
6 67400466 1964935 ‑ bafe FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
7 67400576 1965029 ‑ Air Duct Assembly FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
8 67400577 1959767 ‑ shell FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
9 67400578 1964937 ‑ decorative panel FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
10 67400579 1965032 ‑ air outlet parts FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
11 67400580 1959771 ‑ air outlet FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
12 67400473 1892482 ‑ axis sheath FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
13 67400582 1964944 ‑ ornamental part FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
14 67400583 1950205 ‑ axes FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
15 67400584 1964941 ‑ Vertical Level Vane FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
16 67400585 1964942 ‑ center staff FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
17 67400586 1964943 ‑ center staff FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
18 67400587 1959772 ‑ level vane FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
19 67400179 1506312 ‑ Filter net FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 2
20 67400177 1874771 ‑ Display Component FPHSW09A1A, FPHSW09A1B, FPHSW12A1A, FPHSW12A1B 1
