108 PB
PARTS CATALOG
Outdoor Unit 36k
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67400730 1960394 ‑ panel parts FPHSR36A3A 1
1 67400810 panel parts FPHSR36A3B 1
2 67400307 1542217 ‑ propeller fan blade FPHSR36A3A, FPHSR36A3B 1
3 67400308 1821300 ‑ DC motor FPHSR36A3A, FPHSR36A3B 1
4 67400811 1561919 ‑ motor supporter FPHSR36A3A, FPHSR36A3B 1
6 67400813 1878885 ‑ top plate part FPHSR36A3A, FPHSR36A3B 1
7 67400814 1819106 ‑ back guard FPHSR36A3A, FPHSR36A3B 1
8 67400815 1854549 ‑ Condenser assembly FPHSR36A3A, FPHSR36A3B 1
9 67400816 1814292 ‑ base holder part FPHSR36A3A, FPHSR36A3B 1
10 67400817 1534867 ‑ valve seat FPHSR36A3A, FPHSR36A3B 1
11 67400268 1302261 ‑ PFC inductance FPHSR36A3A, FPHSR36A3B 1
12 67400739 2002716 ‑ 4‑way reversing valve
assembly
FPHSR36A3A, FPHSR36A3B 1
13 67400740 1926428 ‑ Inverter compressor FPHSR36A3A, FPHSR36A3B 1
14 67400196 1847142 ‑ Strong electricity
connect wire
FPHSR36A3A, FPHSR36A3B 1
15 67400309 1817803 ‑ Electronic expansion
valve assembly
FPHSR36A3A 1

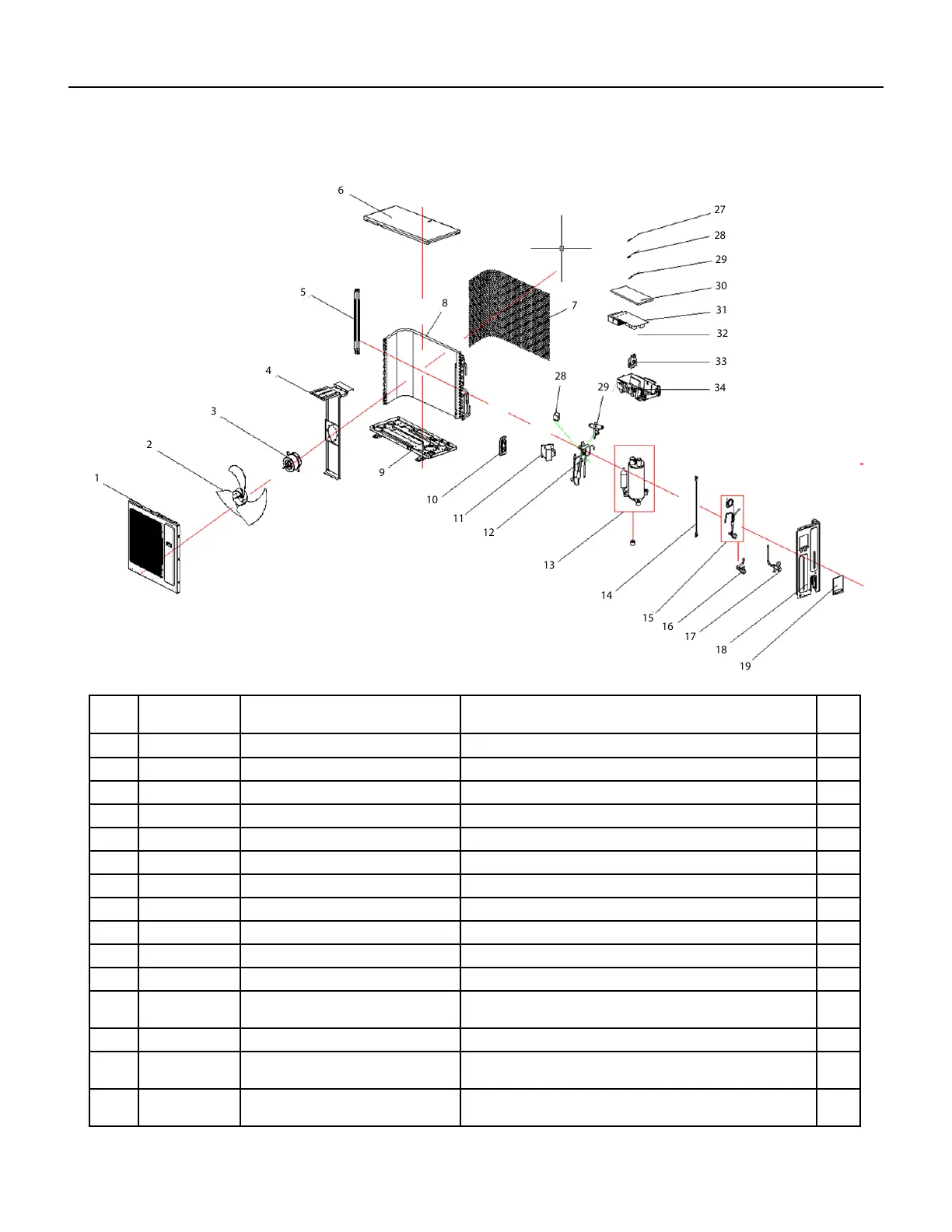

Figure 912
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
27
28
29
30
31
32
33
34
28
29
