Friedrich FPHSR36A3B User Manual

92 PB
PARTS CATALOG
230V Indoor Unit High Seer12K

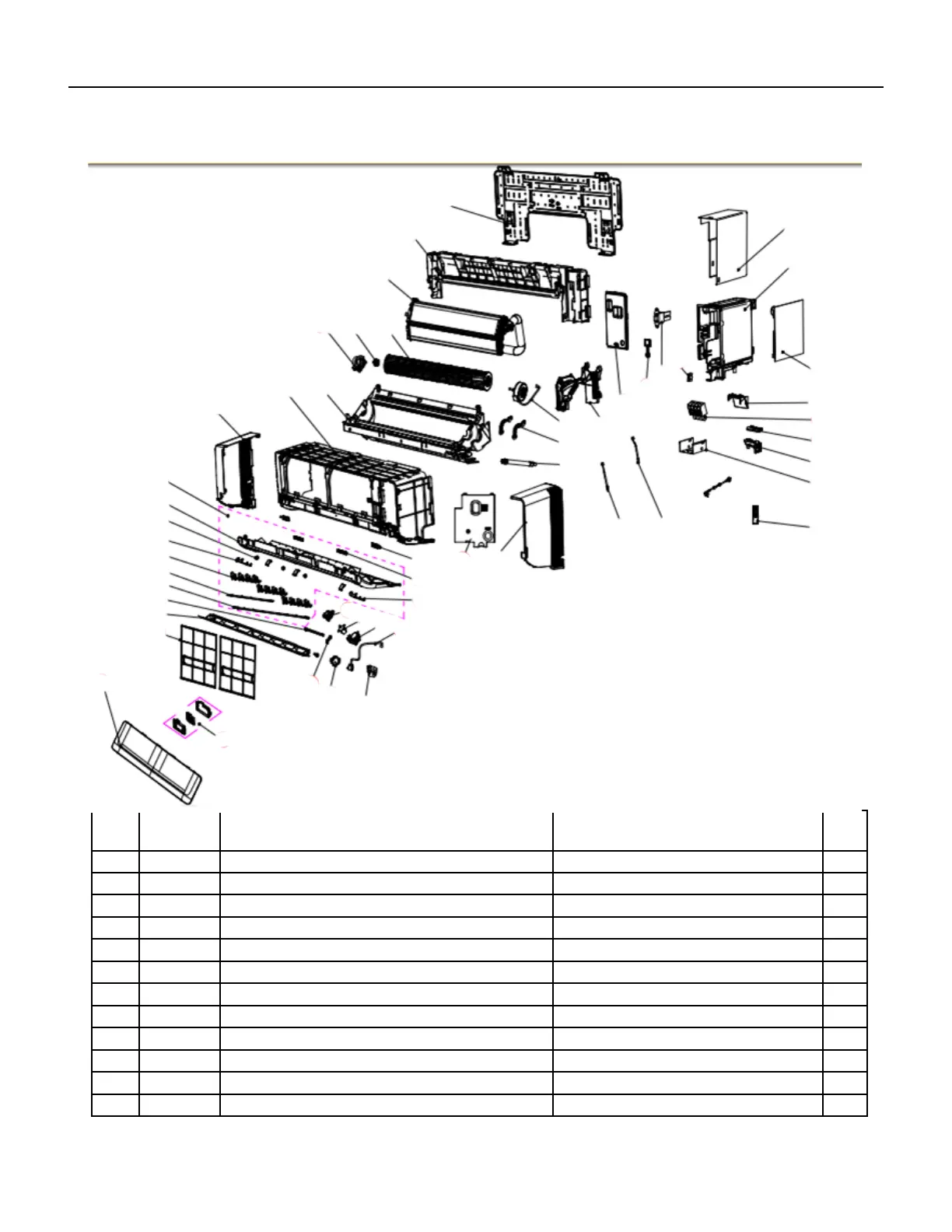

FIgure 904
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 67401204 1969822 ‑ installation plate FRHSW12A3A, FRHSW12A3B 1
2 67401205 1964337 ‑ Supporting button FRHSW12A3A, FRHSW12A3B 1
3 67401206 2008448 ‑ Refrigeration system FRHSW12A3A, FRHSW12A3B 1
4 67400231 1541622 ‑ cross‑ow fan blade FRHSW12A3A, FRHSW12A3B 1
5 67400230 1223738 ‑ bearing FRHSW12A3A, FRHSW12A3B 1
6 67400466 1964935 ‑ bafe FRHSW12A3A, FRHSW12A3B 1
7 67401207 1984618 ‑ Air Duct Assembly FRHSW12A3A, FRHSW12A3B 1
8 67401208 1961597 ‑ shell FRHSW12A3A, FRHSW12A3B 1
9 67401209 1961600 ‑ decorative panel FRHSW12A3A, FRHSW12A3B 1
10 67401210 2018966 ‑ air outlet parts FRHSW12A3A, FRHSW12A3B 1
11 67401211 1961599 ‑ air outlet FRHSW12A3A, FRHSW12A3B 1
12 67400473 1892482 ‑ axis sheath FRHSW12A3A, FRHSW12A3B 2
1
2
3
45
6
7
8
9
10
11
12
20
15
16
14
17
18
19
21
22
24
25
26
27
28
29
30
31
32
33
34 35
36
37
38
39
40
41
42
43
23
13
52
51
50
49
48
47
46
44
45
