Friedrich VRP Series Service & Parts Manual

107 PB
COMPONENTS TESTING

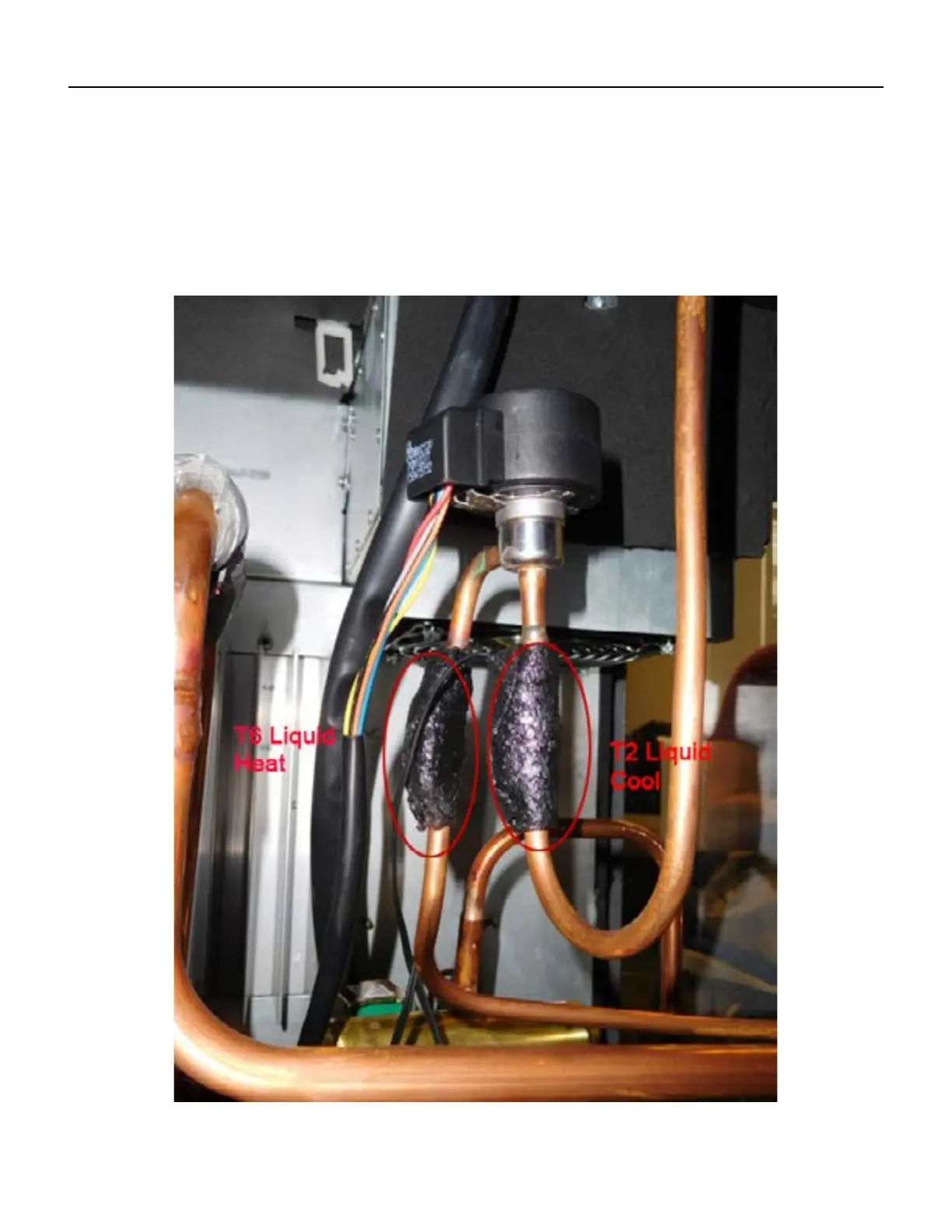

Thermistor Locations
T2 (Liquid Heat)
T6 (Liquid Cool)
The T2 and T6 Sensors are located in the outdoor section attached to the EEV ( Electronic Expansion Valve).
The pipe going into the bottom of the EEV is T2 (Liquid Heat).
The one on the pipe leaving the side of the EEV is T6 (Liquid Cool).
Figure 623 (Thermistor Locations)
