INSTALLATION
Final Wall Plenum And Architectual Louver Installation
18
Final Wall Plenum and Architectural Louver Installation

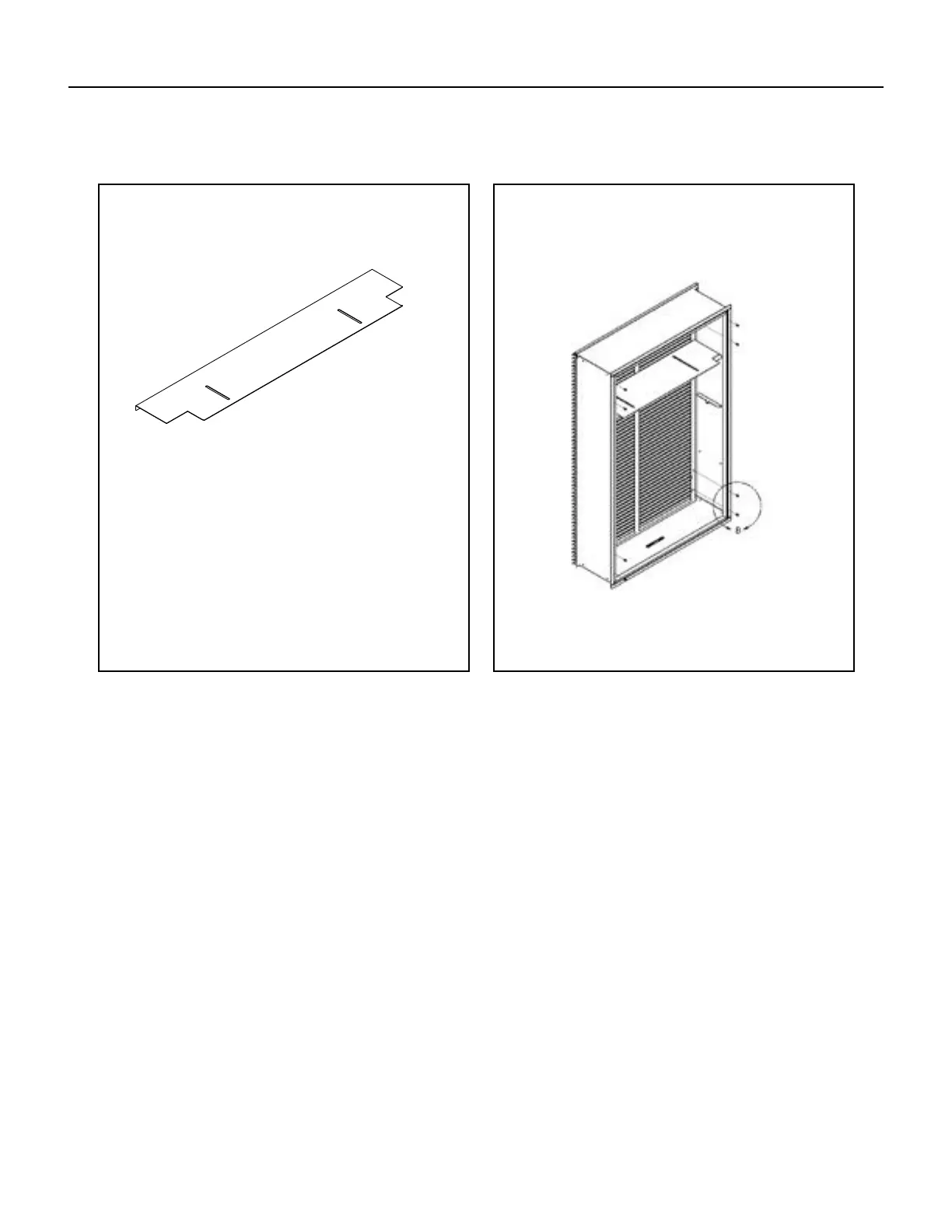

Plenum Divider Extension Plate (Bafe)
Plenum Divider Extension Plate Installed
into Full Plenum Assembly
Ensure that the weather strip is undamaged and provides a continuous
seal around the inner perimeter of the plenum.
Apply silicone grease or other non-petroleum-based lubricants to the weather strip to enhance the sealing
capability of the weather strip and ease installation of the air conditioner chassis.
1) Install the plenum adjuster plate. Ensure the exterior edge is seated against the inside of the
archetiectural louver.
2) Secure the plenum divider extension plate to the archetiectural louver using the two provided screws.
3) Use tape and sealant to seal any gaps.
FIGURE 410 (Final Wall Plenum And Architectual Louver Installation)
