94 PB
COMPONENT TESTING
Replace the Indoor Fan 12k/24k
1. Remove unit from closet.
2. Unplug yellow and white molex connectors. Unlock
connector by pulling down on red tab and squeezing
connector.
3. Remove wires from clips back to fan
4. Remove duct collar by removing screws
5. Remove rear panel by removing perimeter screws.
6. Remove rear panel from fan by removing 10 screws.
7. Remove fan mount bolts (Allen Head bolts (4 places).)
8. Install new fan motor in reverse sequence.

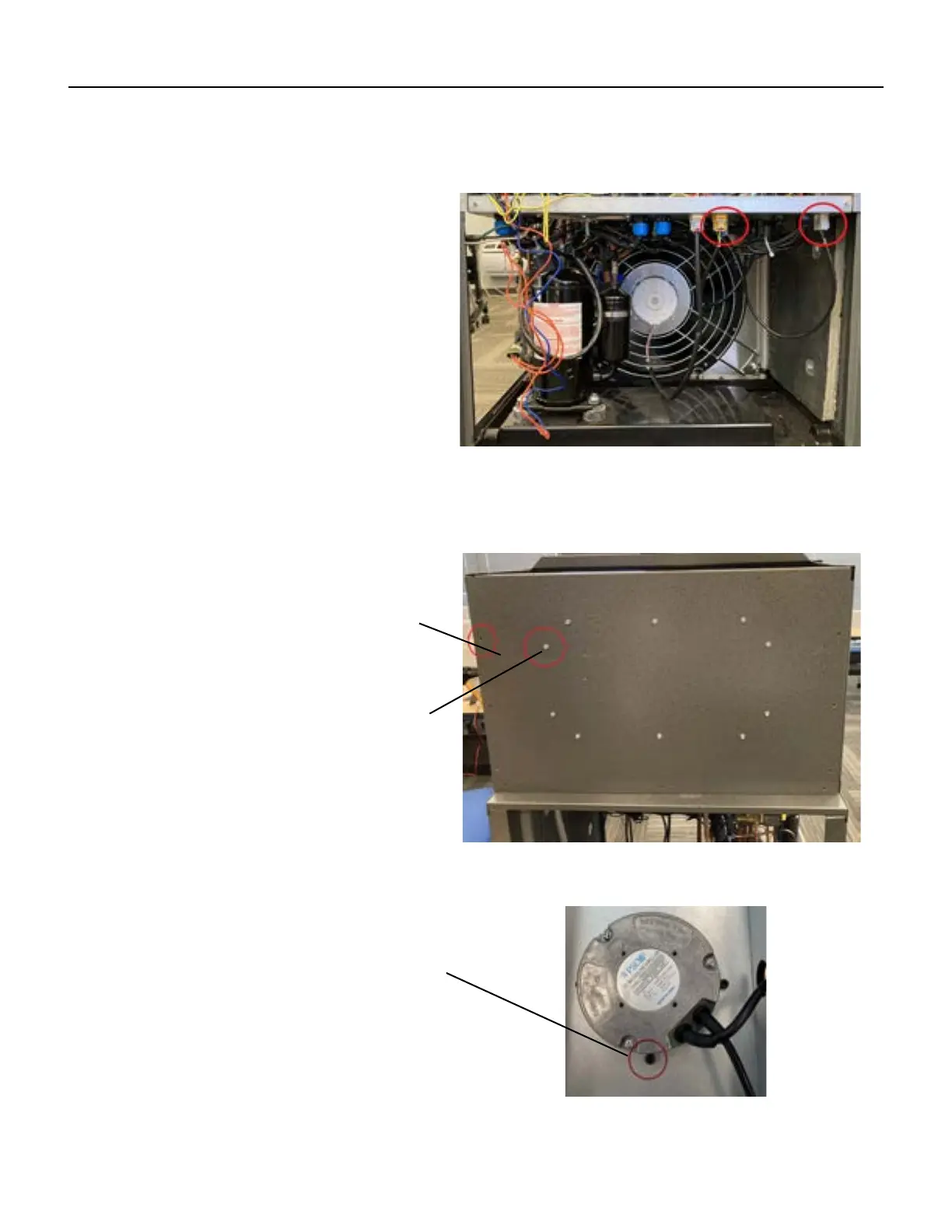

Figure 610 (Indoor Fan)
Figure 608 (Indoor Fan)
Figure 609 (Indoor Fan)
