Frigomat KREAM 2.5 E - Page 25

EN
FRIGOMAT KREAM 2.5 E M04.37389 R.2022.03.30 10
Vaschetta, Pescante, Pompa, Rubinetto Supplied kit
N. COD. DESCRIPTION N. COD. DESCRIPTION
1 P09.028 Star nozze 15 B11.055 Spring
2 P09.006 Splash guard 16 V14.0001 Knob
3 P10.045 Gasket 17 Z89.37017 Pump cover
4 Z84.35271 Tap 18 P02.37049 Non return valve
5 P10.105 Gasket 19 P10.019 Gasket
6 P09.029 Labyrinth 20 P22.37023 Shutter
7 B03.027 Sleeve 21 P22.40664 Scrape
8 P02.145 Plug for insert 22 P10.031 Gasket
9 P10.028 Gasket 23 B17.115 Rotor
10 Z89.37016 Pump body 24 Z06.37015 Pump
11 T10.080 Rubber tube (0.135 mt) 25 P16.37133 Removable tank
12 B17.175 Tube head 26 P13.001 Brush
13 P22.37022 Cream regulator 27 P13.007 OR Disassembler Tool
14 P10.103 Gasket

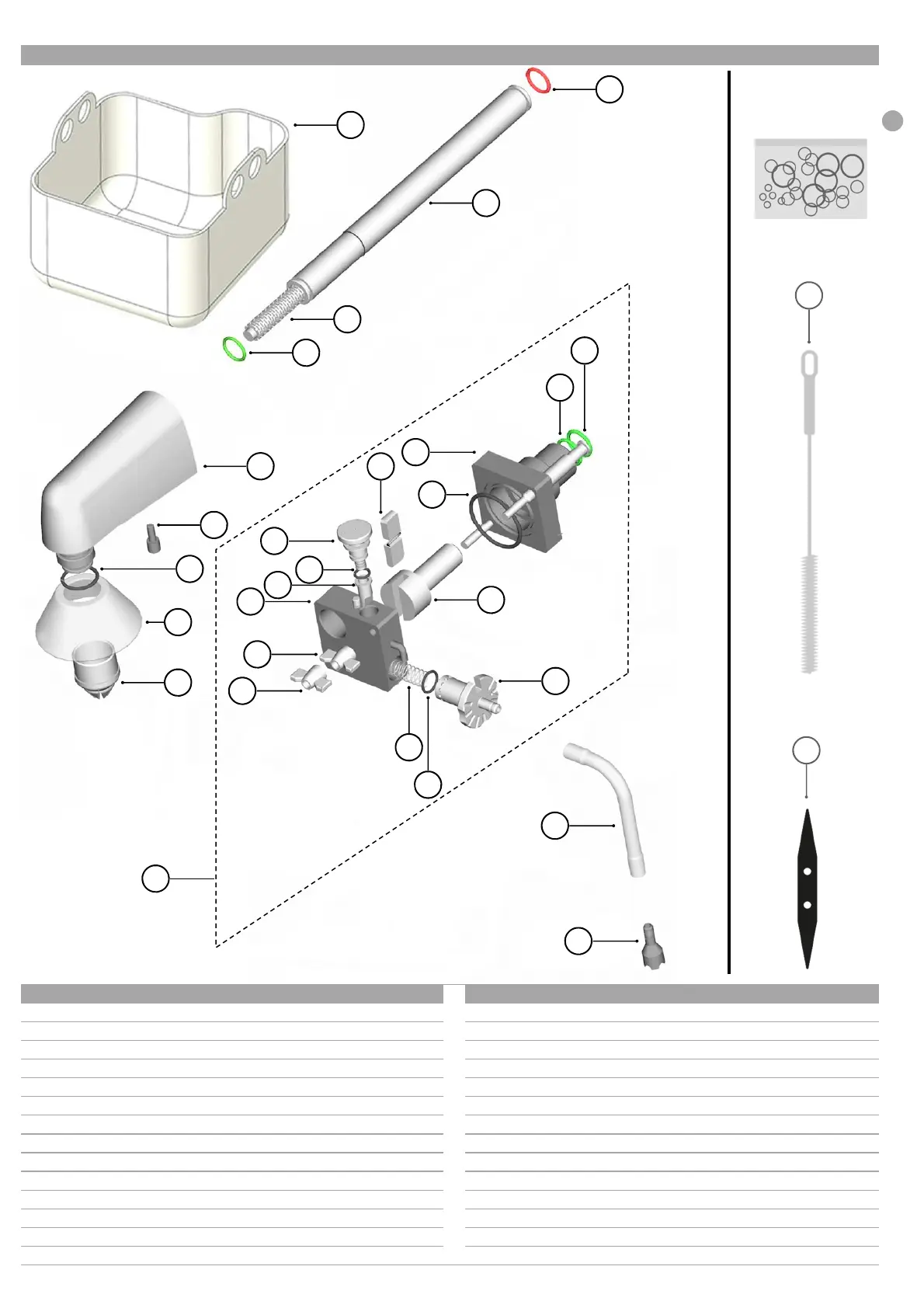

Operator exploded view, Supplied kit
9
7
6
5
4
8
1
2
3
12
11
13
23
16
16
22
17
20
18
19
5
5
14
15
21
24
10
25
26
27
