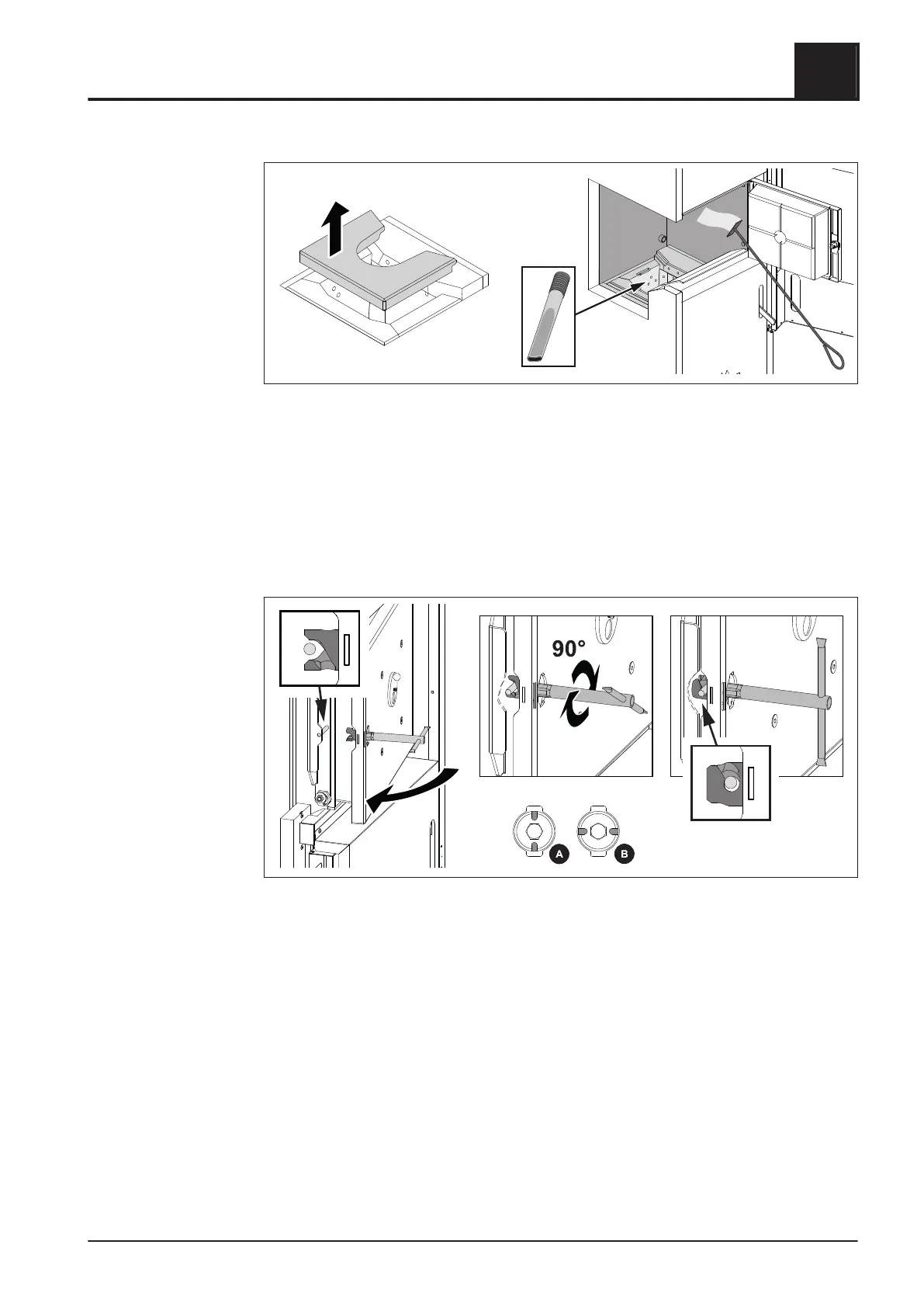

❒ Remove the burn-out ring
❒
Remove the ash deposits from the walls of the entire combustion chamber (top,
side, back) using an ash scraper or broom
❒ Use a small shovel or similar to remove any ash from the combustion chamber
➥ Ash vacuum recommended
➥ Do not throw the ash onto the grate
❒ Check the firebricks and combustion grate for dirt and deposits and clean if
necessary
❒ Close the combustion chamber door by turning the Allen wrench (90°)
➥ A – Notch in screw cap vertical: Door open
➥ B – Notch in screw cap horizontal: Door closed
Servicing the system
5
Maintenance work by the operator
Operating Instructions T4e | B1560520_en 57
