T4e 200-350

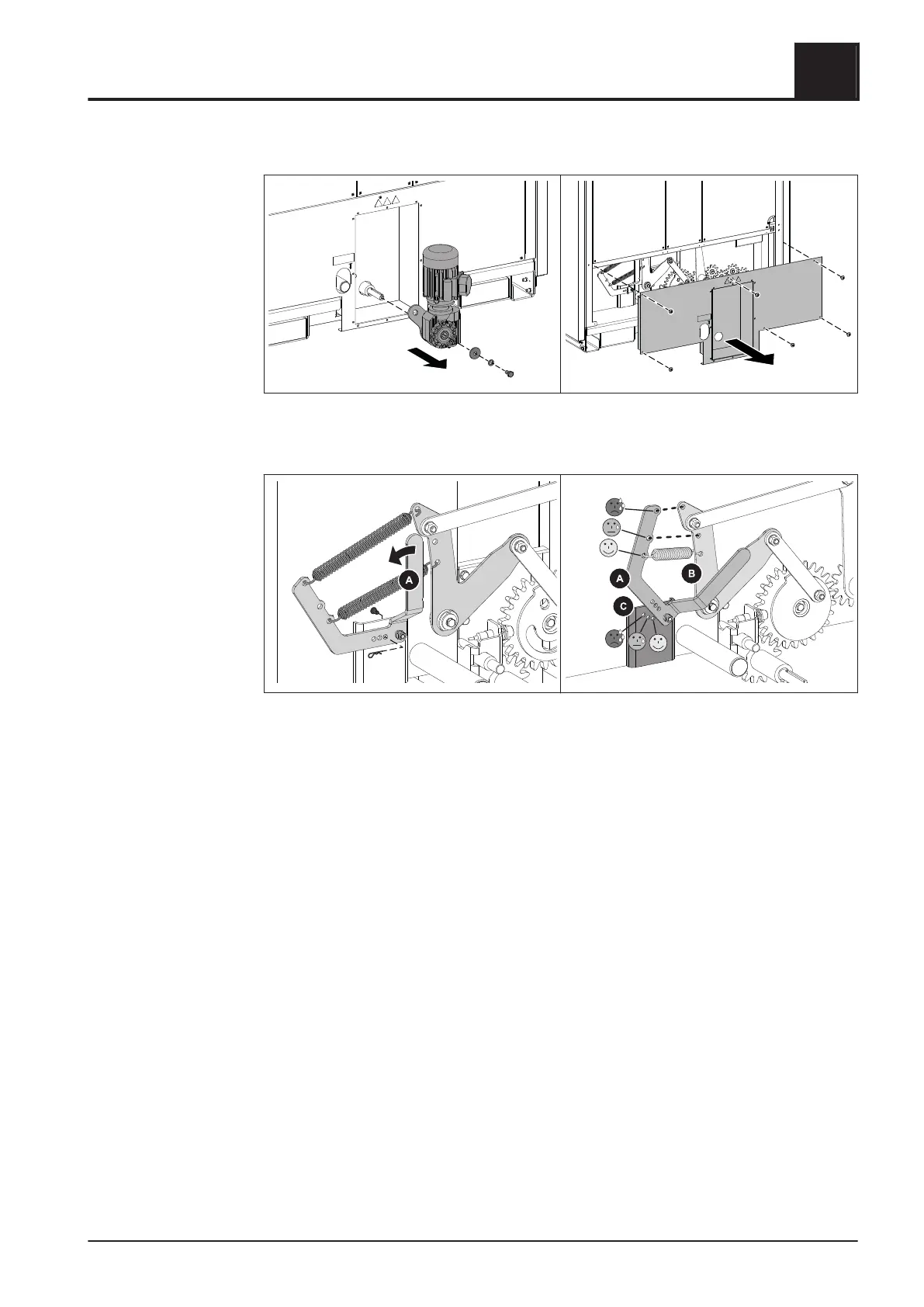

❒ Remove the geared motor from the back of the boiler
❒
Remove lower back panel
❒ Push the clamping lever (A) to the left, against the spring’s force and remove the
spring cotter pin and non-threaded stud
❒
Hook the tension springs into the applicable holes on the clamping lever (A) and
the carrier plate (B)
❒ Use the spring cotter pin and non-threaded stud to attach the clamping lever to the
applicable hole of console (C)
EFFECT: The more tension is applied to the springs, the more force is applied to
clean the WOS pipes, and the impact is increased.
Servicing the system
5
Maintenance work by technicians
Operating Instructions T4e | B1560520_en 69
