4.7 Checking the fill level of the ash container and emptying if required
WARNING
When removing the ash container cover during operation:
False air infiltration via the ash screw duct can lead to uncontrolled combustion
and the risk of accidents.
Before checking the ash level / emptying the ash container:
❒ Switch off the boiler by tapping “Boiler off”
➥ The boiler follows the shutdown procedure and switches to "Boiler off"
status.
In “Boiler off” status:
❒

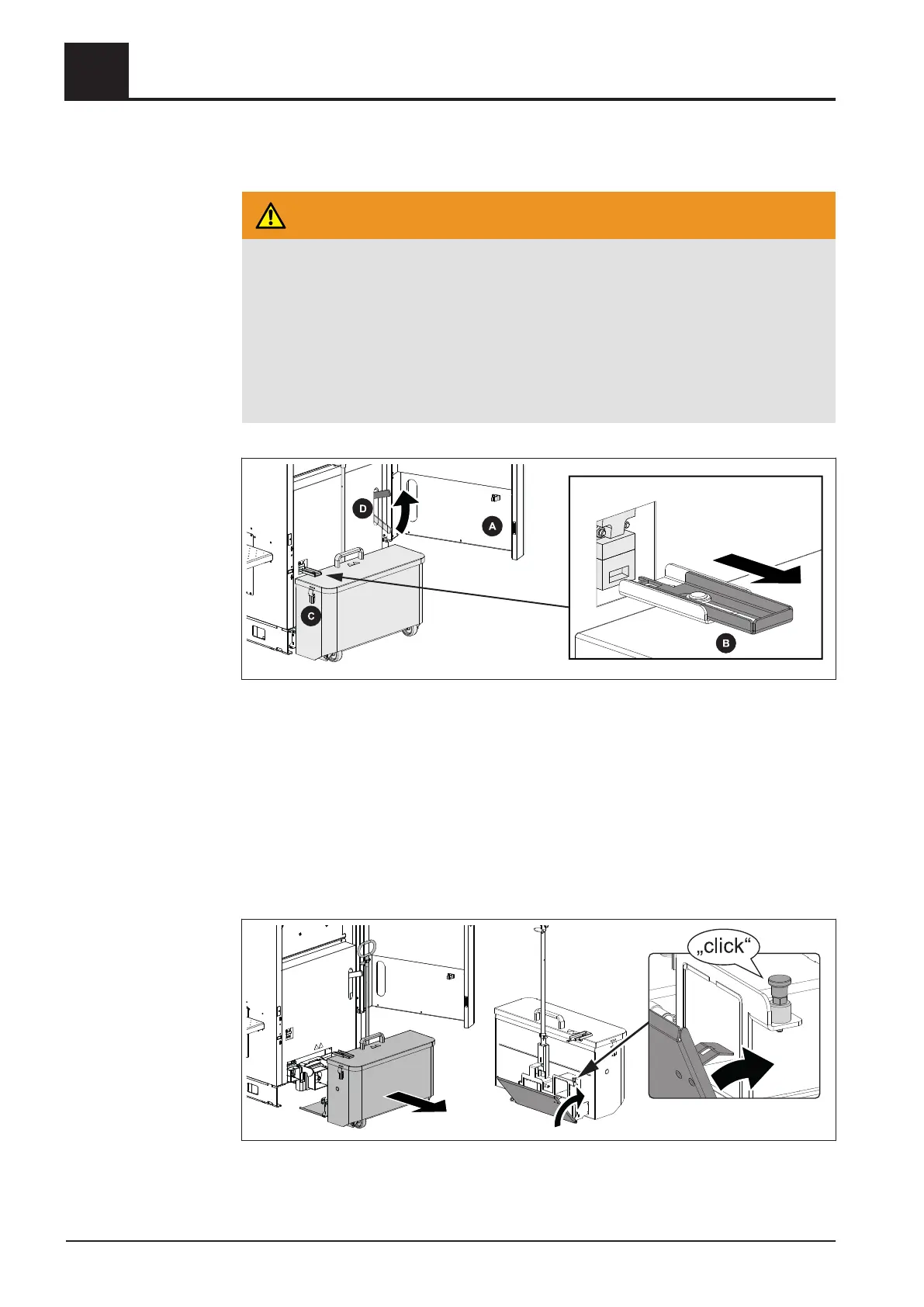

Open the insulated door (A)
❒ Remove the key plate (B) from the safety limit switch
❒ Open the side clamps (C), remove the ash container cover and check the ash
level in the two chambers
➥ If either of the two chambers is more than two thirds full, empty the ash
container
❒ Put the cover on the ash container and use the side clamps (C) to close it again
❒ Open the ash container clamp using the locking lever (D)
❒ Remove the ash container from the boiler
❒
Close the hinged lid on the ash container
➥ Make sure that the hinged lid snaps into place!
Up to boiler type 180:
4
Operating the System
Checking the fill level of the ash container and emptying if required
