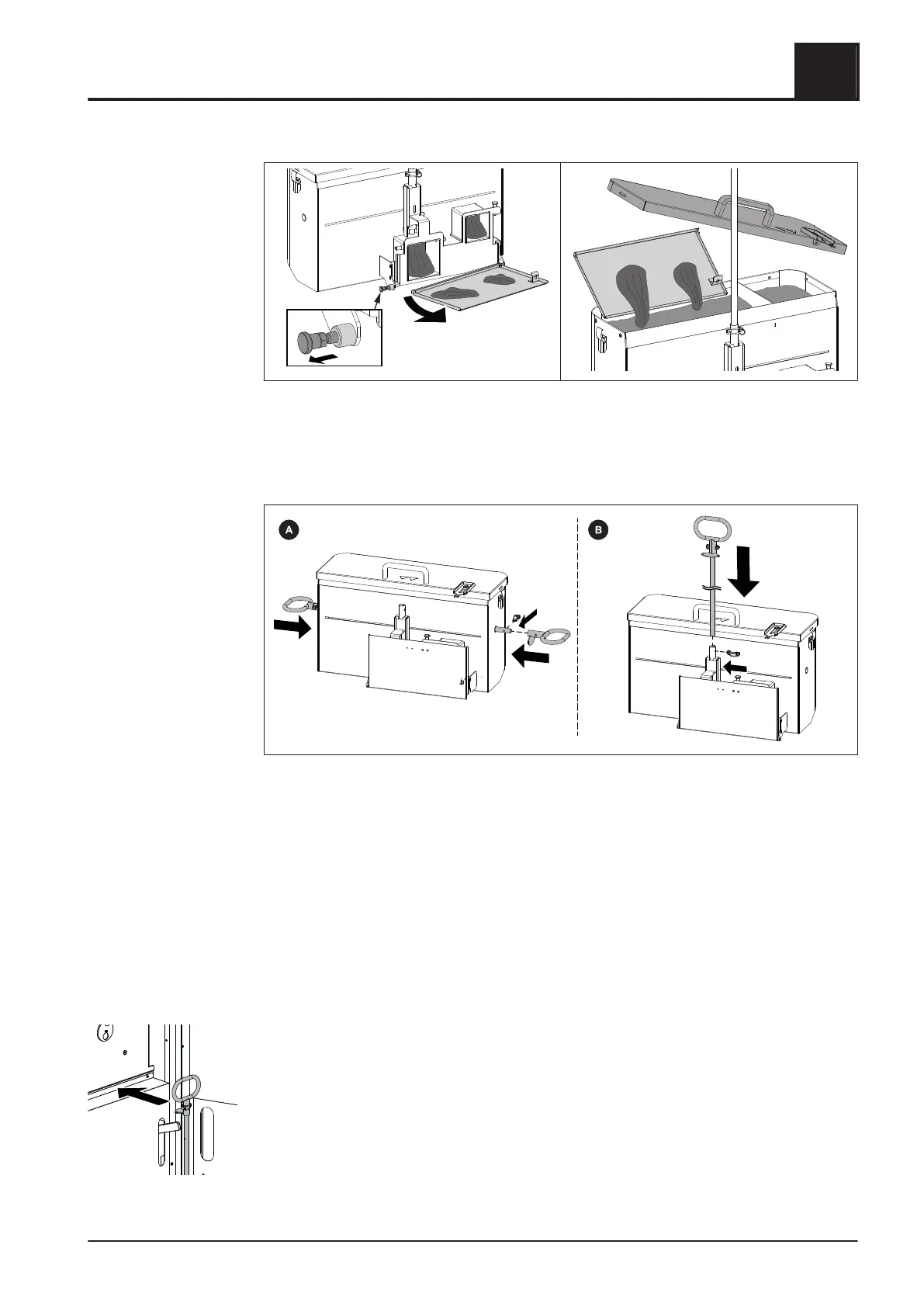

If any ash falls out of the ash container as you are removing it:
❒ Pull out the locking bolt and take out the hinged lid
❒
Remove the top ash container cover and empty the ash in the container
❒ Secure the carrying bar with handles as desired and transport the ash container to
the emptying point
Option A:
❒
Insert the carrying bar with handles on the side of the ash container
❒ Secure the second handle to the opposite side of the carrying bar using a pipe
locking pin
➥ The ash container can now be carried to the emptying point.
Option B:
❒ Insert the carrying bar with handles on the back of the ash container and secure it
with a pipe locking pin
➥ The ash container can now be moved to the emptying point.
After emptying the ash container:
❒ Put the cover on the ash container and use the side clamps to close it again
❒
Remove the locking bolt and open the hinged lid
❒ Replace the ash container in the boiler and clamp with the locking lever
➥ The crescent of the carrying bar should be pointing towards the boiler!
❒ Push the key plate into the safety switch
❒ Close the insulating door
Operating the System
4
Checking the fill level of the ash container and emptying if required
