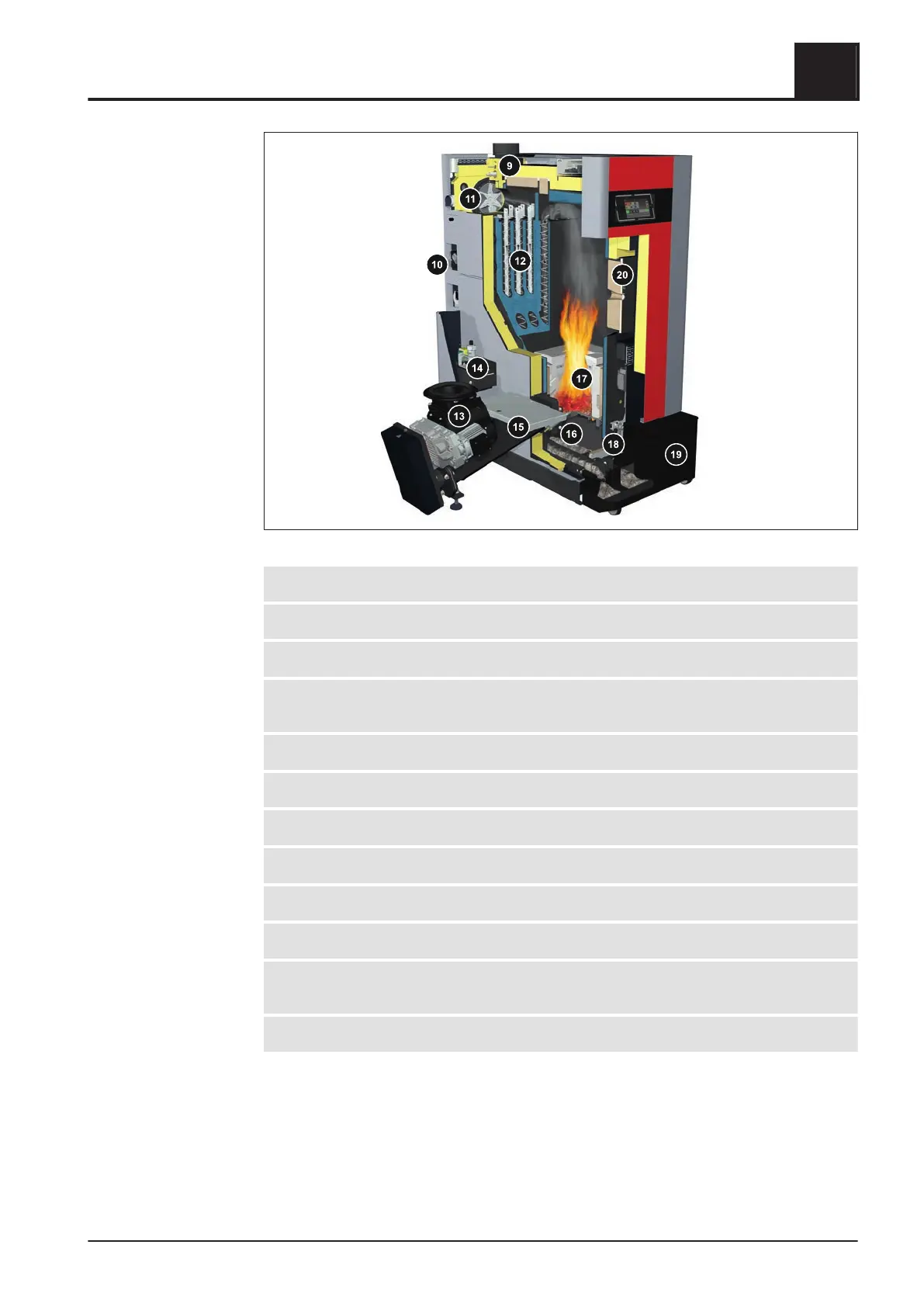

9 Lambda probe for fuel adjustment
10 Integrated return temperature control with pump, mixing valve and ball valve
11 Speed regulated EC induced draught fan
12 WOS system with turbulators and automatic drive for heat exchanger cleaning of the
second and third draught
13 Twin-chamber rotary valve (Ø 200 mm) as burn back protection system (RSE)
14 Integrated electrostatic particle separator (optional)
15 Stoker screw (Ø 100 mm)
16 Ceramic igniter with function monitoring
17 Silicon carbide combustion chamber with automatic tipping grate
18 Tipping grate with drive (rotation angle 110°)
19 Ash box for combined automatic ash removal from combustion chamber and heat
exchanger
20 Combustion chamber door with inspection glass
General
1
Product overview T4e
Operating Instructions T4e | B1560520_en 7
