Connection Options and Knockouts
Connection Op-
tions and Knock-
outs

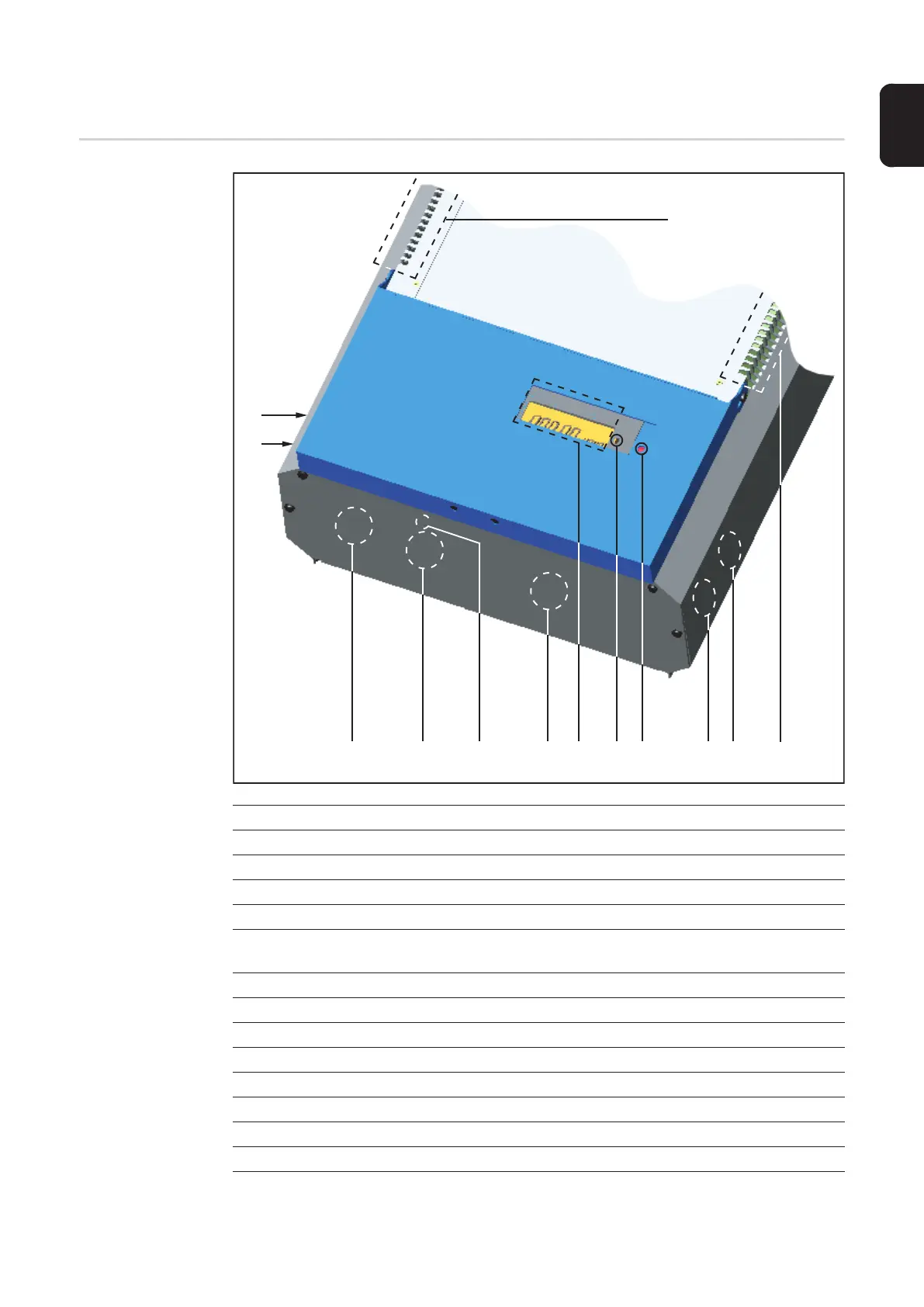

Item Description
(1) Knockout for 1/2 in. / 3/4 in. conduit fitting (DC-cables)
(2) Knockout for 1/2 in. / 3/4 in. conduit fitting (DC-cables)
(3) Knockout for 1/2 in. / 3/4 in. conduit fitting (AC-cables)
(4) Knockout for 1/2 in. / 3/4 in. conduit fitting (AC-cables)
(5) Knockout for grounding electrode
(may be required by local authorities)
(6) Knockout for 1/2 in. / 3/4 in. conduit fitting (data communication cables)
(7) Display
(8) LED for operating status
(9) LED for GFDI status
(10) Knockout for 1/2 in. / 3/4 in. conduit fitting (data communication cables)
(11) Knockout for 1/2 in. / 3/4 in. conduit fitting (data communication cables)
(12) Air vents - Intake
(13) Air vents - Exhaust
(3) (4) (6) (7) (8) (9)
(12)
(13)
(5) (10) (11)
(2)
(1)
