Options If the DatCom component for the required options is not available, the message "N.A." (not
available) is shown.

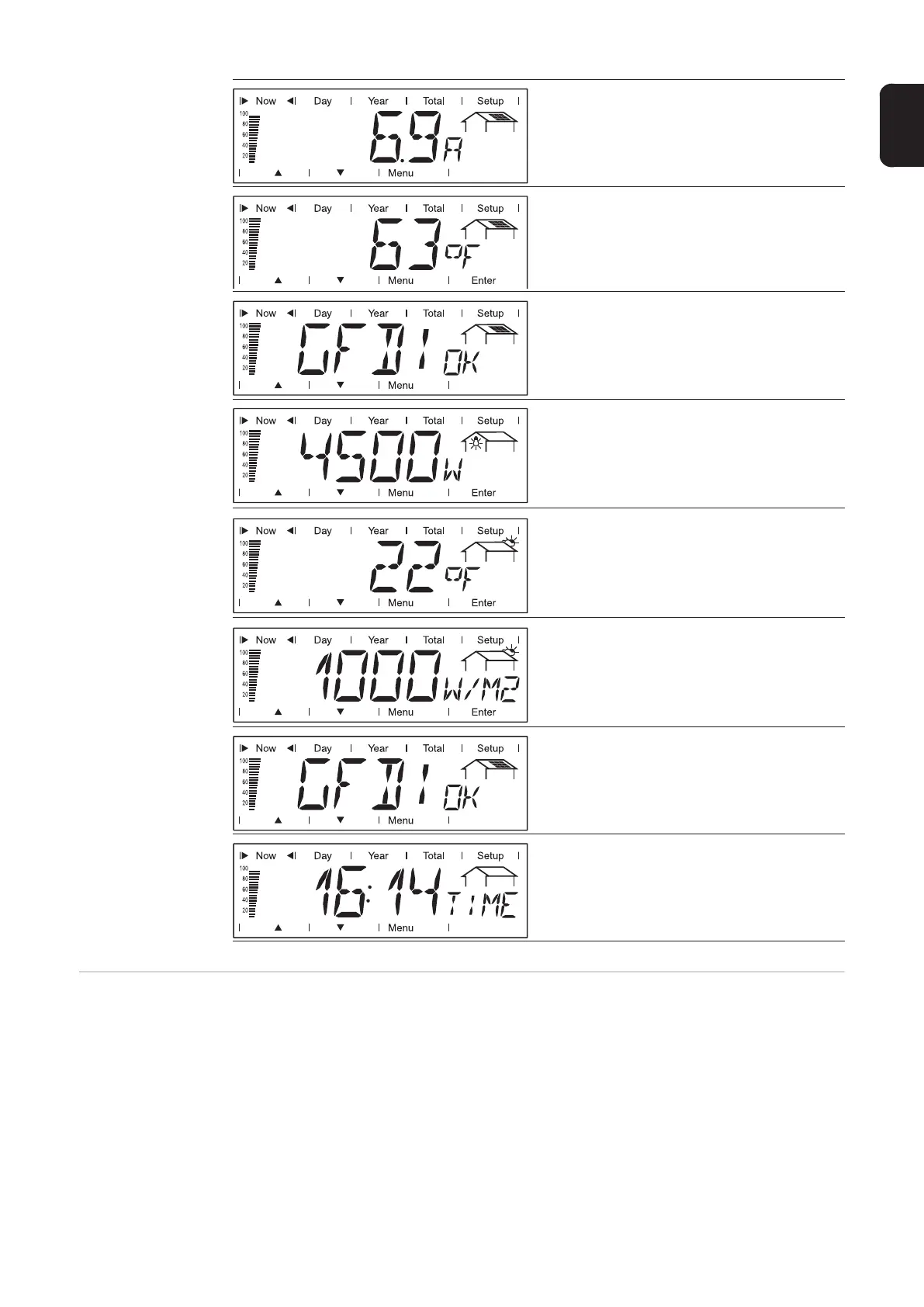

Solar module current
current supplied by solar array at the par-
ticular moment (Amperes)
Solar modul temperatur (optional Sen-
sor Card/Box)
temperature at solar modules, tempera-
ture sensor No.1 (°F)
GFDI status
if there is no ground fault in the system
"GFDI OK" is displayed
Output reading of consumption meter
(optional Sensor Card/Box)
present power drawn from the grid (Watts)
Ambient temperature (optional Sensor
Card/Box)
Temperatur-Sensor No. 2 (°F)
Irradiance (optional Sensor Card/Box)
the sunlight’s power per square meter
(W/m²)
GFDI status
If there is no ground fault in the system,
‘GFDI OK’ is displayed
Time (optional datalogger)
When the time on the inverter or on a dat-
alogger is changed, this changes the time
on all devices connected via Solar Net.
