Fronius IG-TL 4.0 - Connecting to the Public Grid (AC)

29

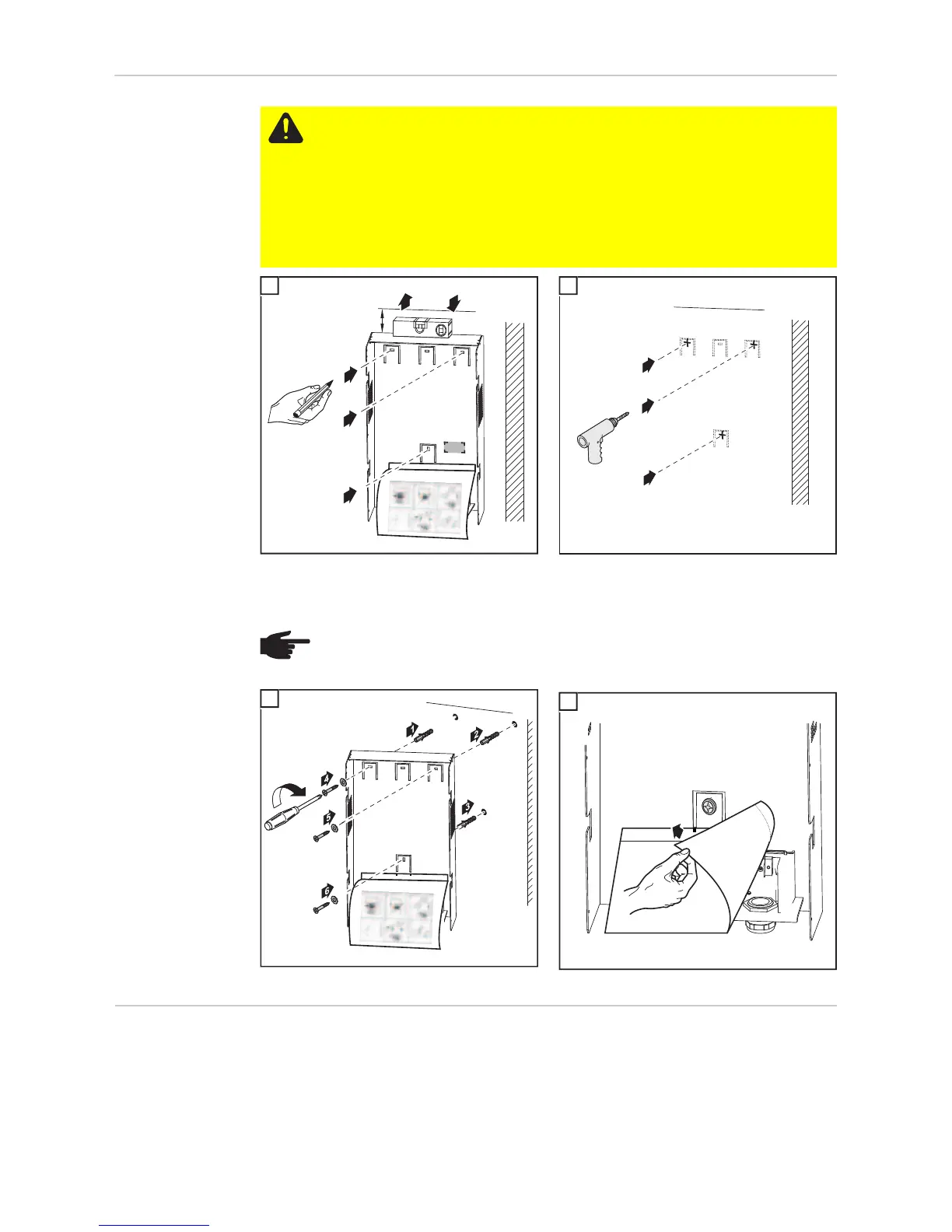

Attaching the wall
bracket - Wall in-
stallation
CAUTION! The inverter can be damaged by soiling or water on the terminals and
contacts of the connection area.
- When drilling, make sure that terminals and contacts in the connection area
do not become soiled or wet. Leave the dust cover in position.
- The wall bracket apart from the power stage set does not possess the degree
of protection of the complete inverter and, therefore, should not be attached
without a power stage set.
Protect the wall bracket against soiling and moisture during installation.
min. 50 mm
min. 2 in.
1
1
2
3
4
(*)
1
1
2
3
2
IMPORTANT! Attach the wall bracket so that the display marking (*) on the wall bracket is
at eye level.
NOTE! When attaching the wall bracket to the wall, make sure that the wall brack-
et is not warped or deformed.
3
3
4
1
2
4
1
4
