The Display Modes
Display modes The following display modes are available for the inverter:
Selecting a dis-
play mode
The ‘NOW’ display mode ...... Displays real-time values
The ‘TODAY’ display mode ...... Displays values for power fed into the grid during
that day
The ‘YEAR‘ display mode ...... Shows data for the current calendar year
The ‘TOTAL’ display mode ...... Displays values for power fed into the grid since
your inverter first started operating

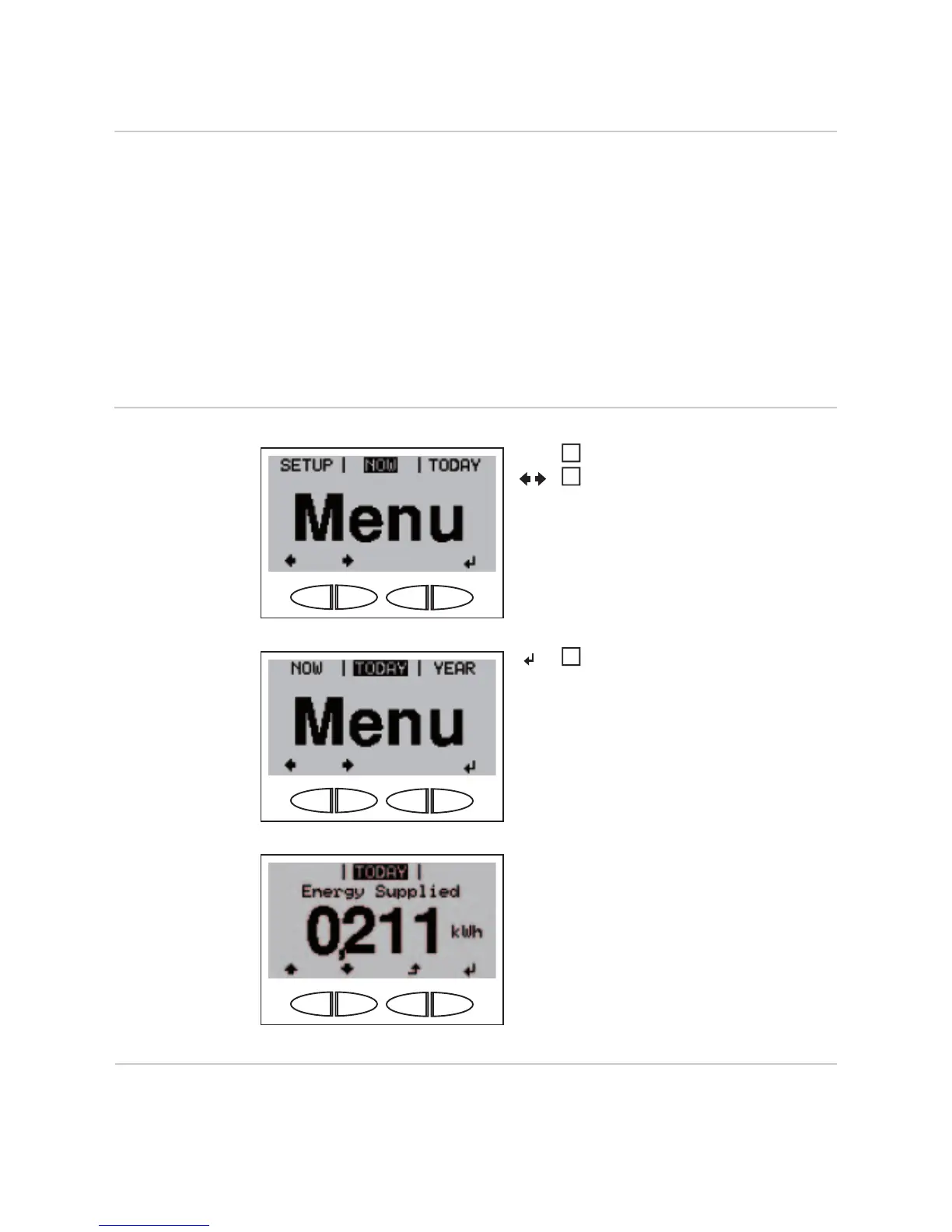

Access the menu level
Use the ‘left’ or ‘right’ keys to select
your preferred display mode
Press the ‘Enter’ key
The first display value of the selected dis-
play mode is shown.
1
2
3
