Scope of supply
NOTE!
The "Robacta Reamer" parting agent
(item number 42,0411,8042) and the cle-
aning cutter are not part of the scope of
supply.

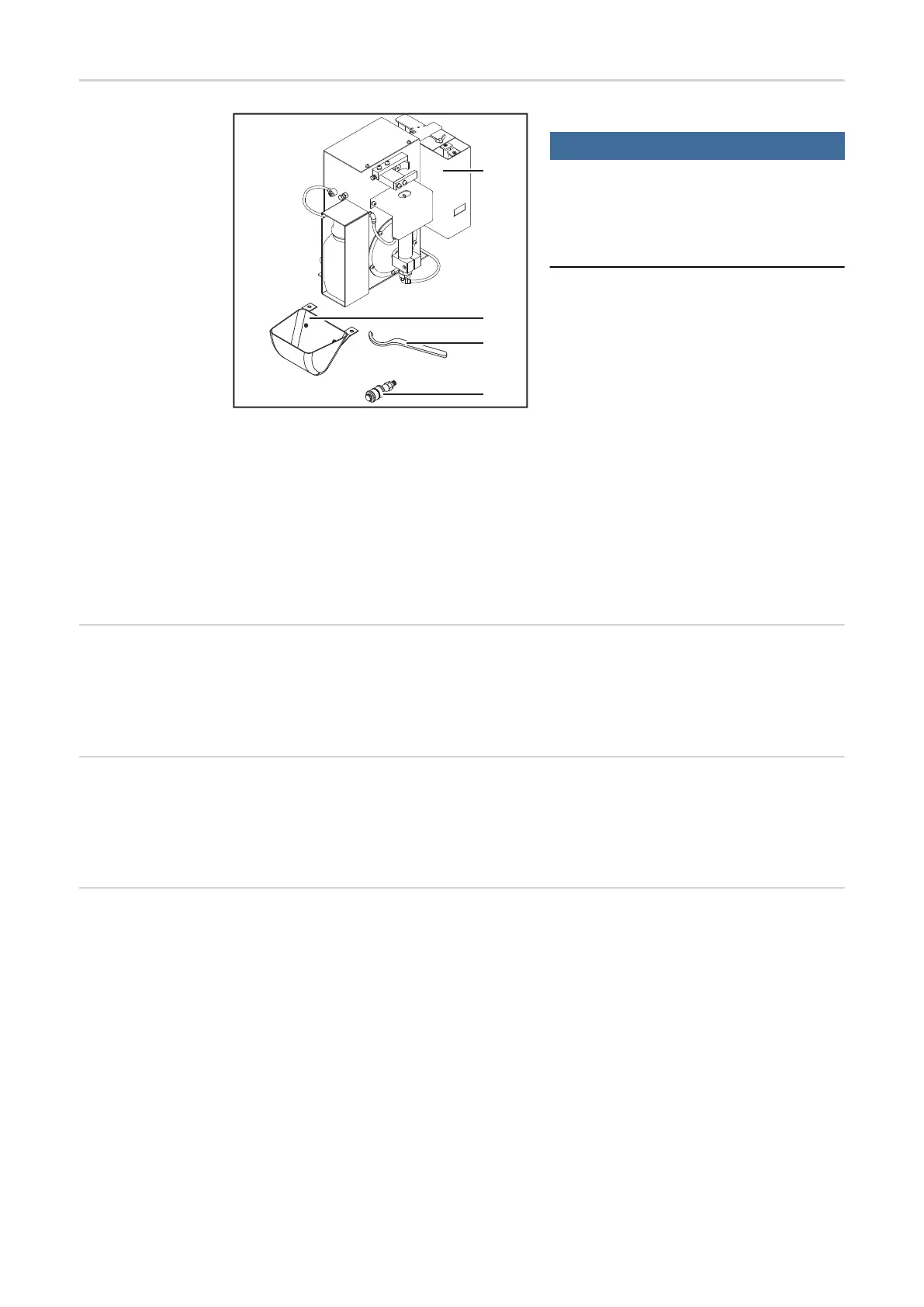

(1) Robacta Reamer V Twin cleaning
device with wire cutter
(2) Spatter tray
(3) Tightening key for cleaning motor
(4) Compressed air relief valve
not shown:
(5) Standard I/O connecting plug (X1) without cable
(6) Operating instructions
(7) Fixings for assembling the cleaning device:
- 4 screws
- 4 washers
- 4 lock washers
- 4 nuts
Available options The following options are available for the cleaning device:
- Installation stand
- Cleaning cutter adjustment aid
- Level sensor
How the wire cut-
ter works/Maxi-
mum wire
diameter
The wire cutter opens and closes when there is an active signal from the robot control.
Two wire electrodes with a diameter of up to 1.6 mm (0.063 in.) can be cut at the same
time by the cleaning device wire cutter.
Warning notices
on the device
The Robacta Reamer V Twin is fitted with warning notices and a rating plate. The warning
notices and rating plate must not be removed or painted over.
