3

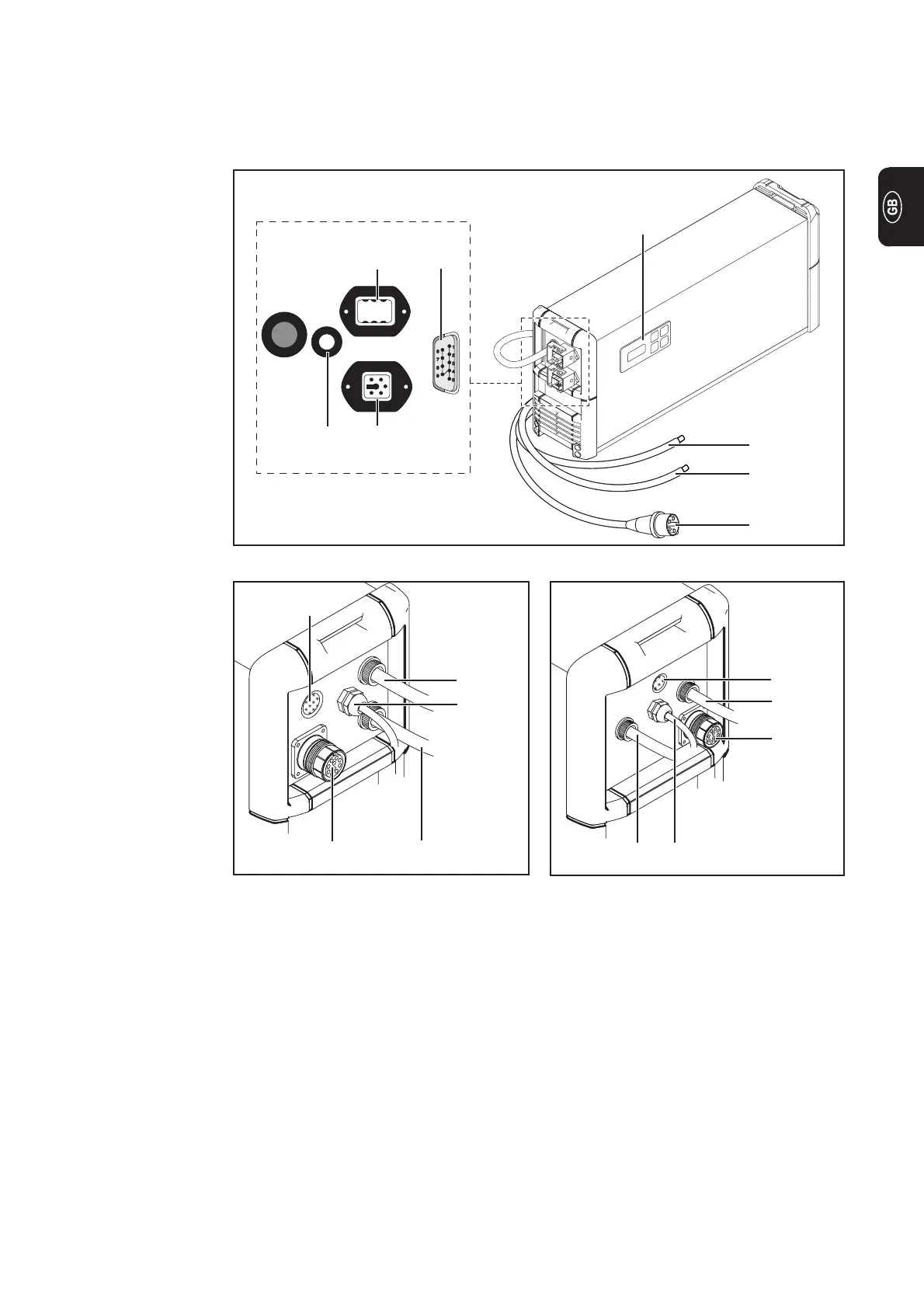

Fig.1 Control panel and connections on the front
(3)
(1)
(2)
(4)
(9)(7)
(6)
(13)
(7) (8)
Fig.2 Rear of charger version 1
(12)
(11)
(2)
(10) (3)
(12)
(3)
(11)
(10)
Fig. 3 Rear of charger version 2
Controls and connections
Controls and
connections
(1) Mains cable/plug
(2) (-) charger lead
(3) (+) charger lead
(4) Multifunction panel with integrated display and membrane keypad
(5) RS 232 serial interface option
(6) Temperature-controlled charging option
(7) External electrolyte circulating pump option - plug X6/X7
(8) Aquamatic/end of charging option
(9) External stop option
(10) Standardised LocalNet connection socket for remote display option
(11) Internal electrolyte circulation option: compressed air output
(12) Internal electrolyte circulation option: air intake with air filter
(13) Relay board option: bushing for control lines
(5)
(2)
X7
X6
