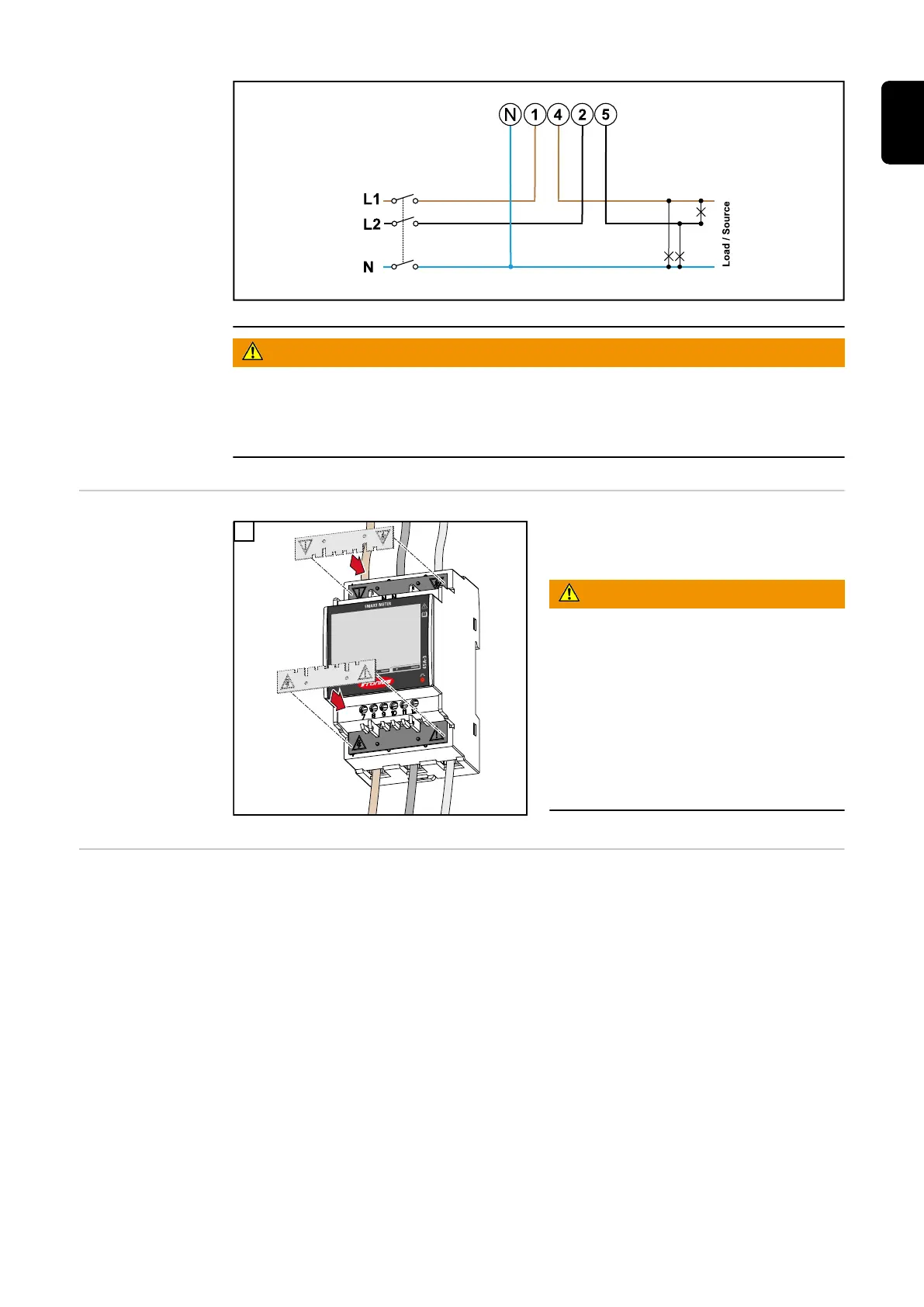

2 phases, 3 conductors
WARNING!
Danger from mains voltage.
An electric shock can be fatal.
▶
Always switch off the power supply before connecting the mains voltage in-
puts to the Fronius Smart Meter TS.
Fitting the pro-
tective cover for
the terminals
1
Insert the protective covers into the
guides and press firmly.
WARNING!
Danger due to electrical voltage from
missing or improperly fitted protect-
ive covers.
An electric shock can be fatal and/or
cause serious damage to property.
▶
Fit the protective covers immedi-
ately after installing the live
cables.
▶
Fit the protective covers properly
and check that they are secure.
Connecting the
data communic-
ation cable to
the inverter
Connect the data communication connections of the Fronius Smart Meter TS to
the Modbus interface of the Fronius inverter using a network cable (type CAT5
or higher).
Several Smart Meters can be installed in the system, see chapter Multi-meter
system - Fronius SnapINverter on page 24.
