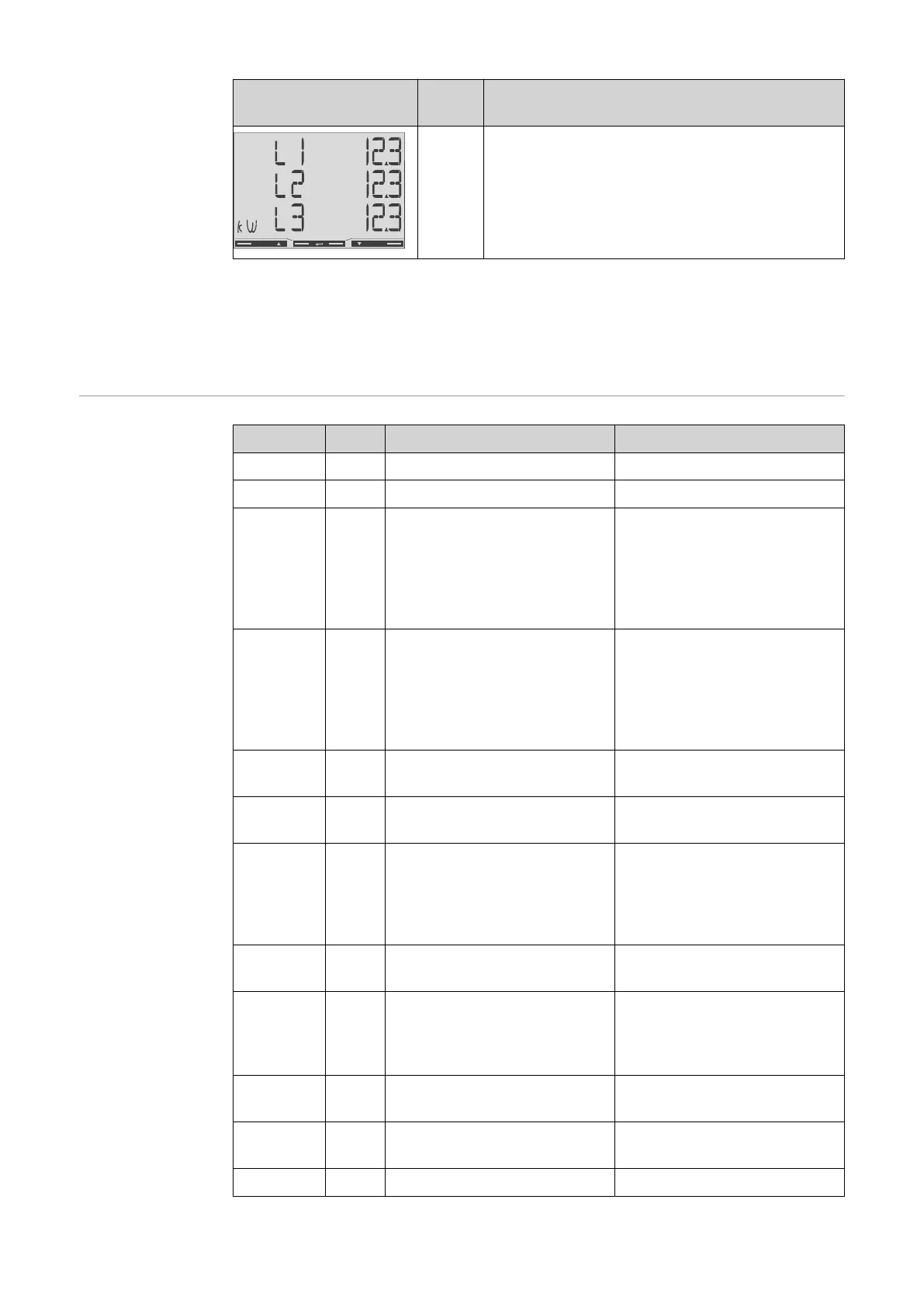

Image Scree
n
Description
19
1.
Effective power
* Displayed when easy connection mode is activated (measurement = A).
This value indicates the total energy without considering the direction.
** Factory setting - displayed when drawn and delivered energy are meas-
ured separately (measurement = b).
Configuration
menu - structure
and parameters
Screen Code Description Values
PASS*** P1 Enter the current password 2633*
nPASS P2 Password change ** Four digits (0000-9999)
SYStEM P3 Type of system 3Pn*: three-phase system,
4-core
3P: three-phase system, 3-
core
2P: two-phase system, 3-
core
MEASurE P6 Measurement mode ** A: easy connection, meas-
ures all energy without tak-
ing the direction into ac-
count.
B*: measures imported and
exported energy separately.
InStALL P7 Connection check On: activated
Off*: deactivated
P int P8 Average power calculation
interval (minutes)
1* - 30
MOdE P9 Display mode ** Full*: full display
Easy: reduced display. The
values that are not dis-
played are still transmitted
via the serial interface.
tArIFF P10 Tariff management ** On: activated
Off*: deactivated
HoME P11 Screen showing measured
variables displayed at star-
tup and after 120 seconds
of inactivity **
For full display (Mode =
Full): 0 - 20*
Ad-
drESS***
P14 Modbus address 1* - 247
bAUd P15 Baud rate (kBit/s) ** 9.6* / 19.2 / 38.4 / 57.6 /
115.2
PArITY P16 Parity ** Even/No*
30
