Connecting the
terminating res-
istor

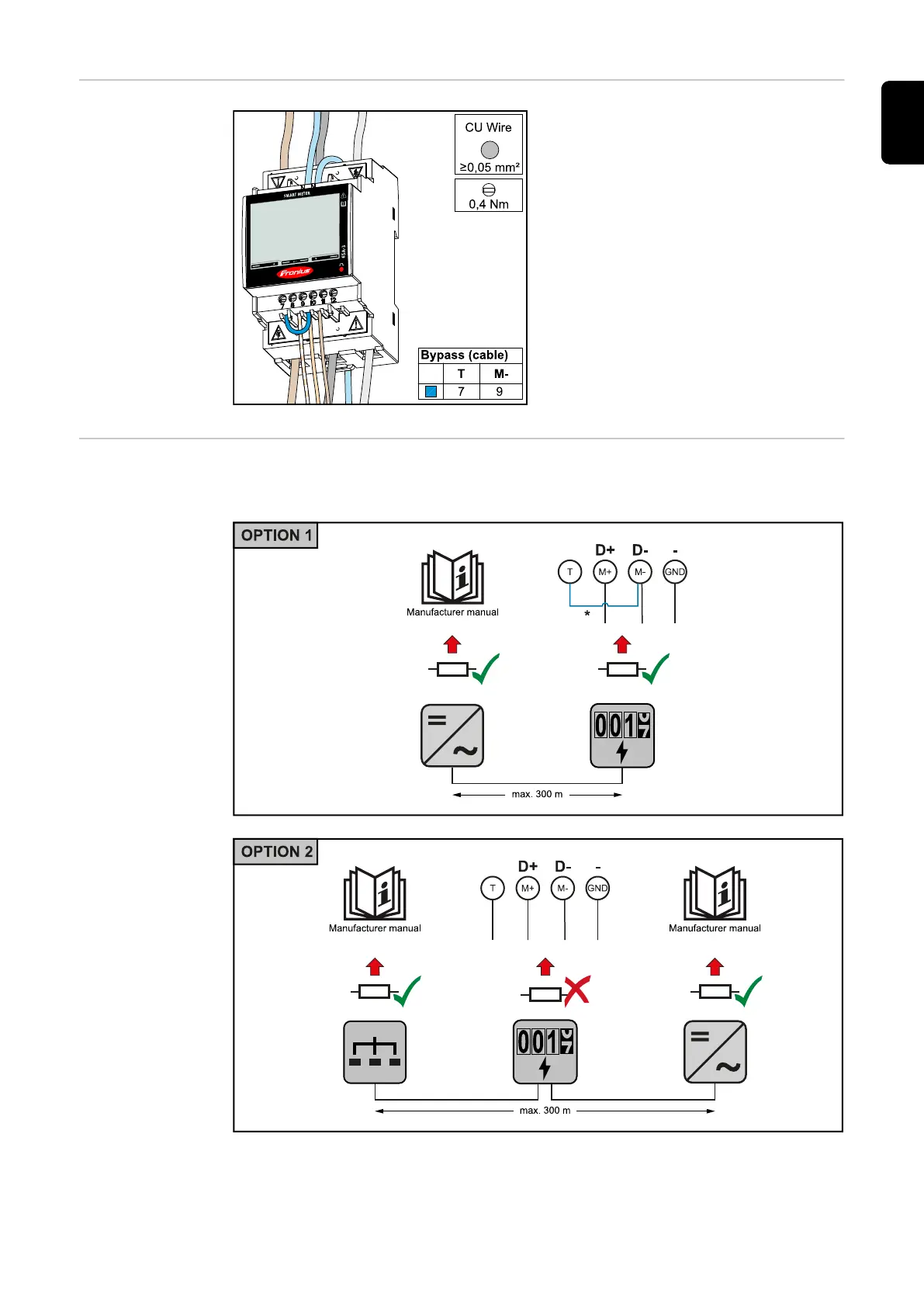

The terminating resistor is integrated
in the Fronius Smart Meter TS and is
manufactured with a bridge between
the M and T connections (T = termina-
tion).
Terminating res-
istors
Due to interference, it is recommended that terminating resistors are used as il-
lustrated below to ensure proper functioning.
