Frontier TD2427 - Machine Adjustments; Tine Pitch Adjustment Method

9
ADJUSTMENTS
Tine Pitch Adjustments
Figure 7
Figure 8
Figure 10Figure 9

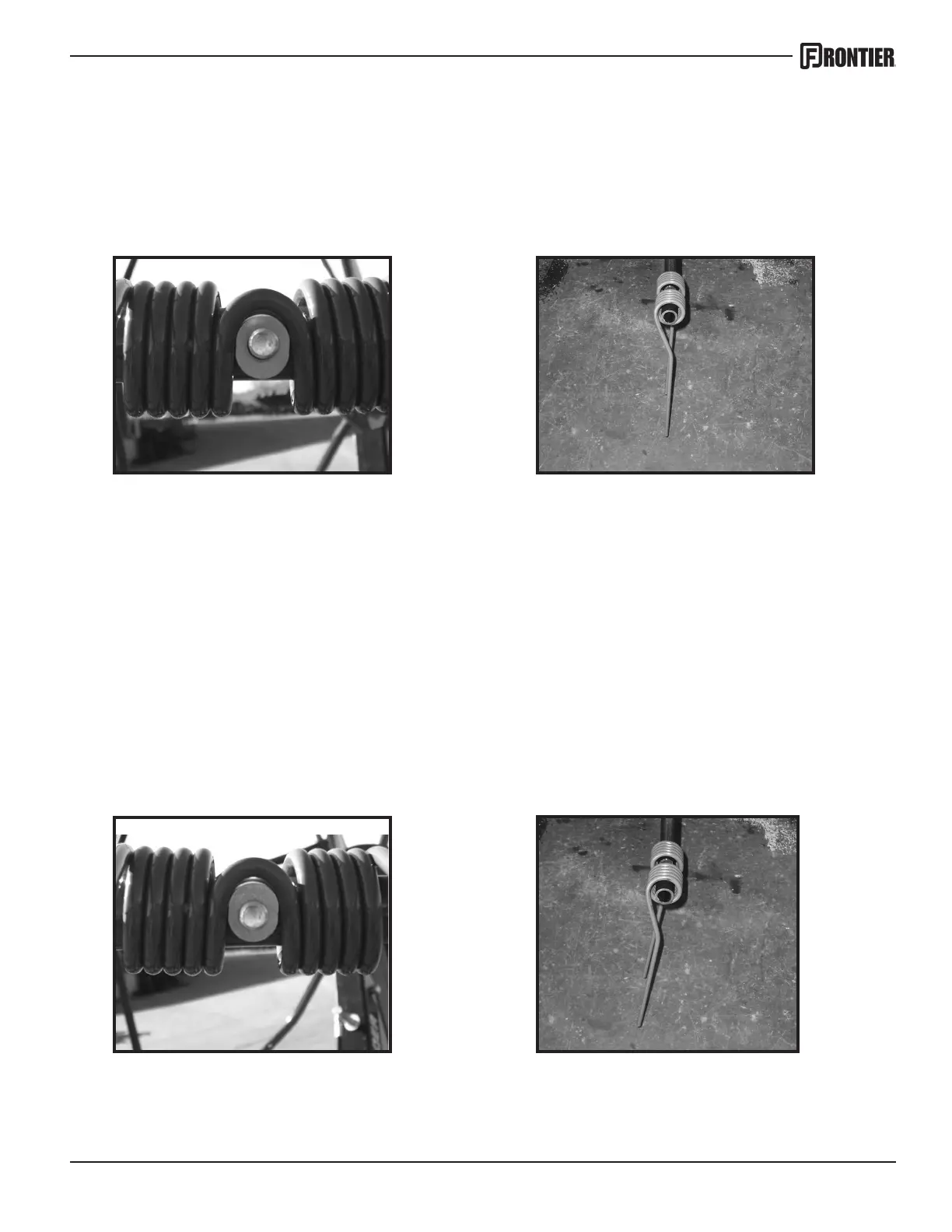

The tine pitch (the angle of the tine in relation to the tine arm) can be adjust-
ed by reversing the eccentric spacer washer. The spacer position in Figure 7
will give the tine a less aggressive position as shown in Figure 8.
The spacer position shown in Figure 9 will give the tine a more aggressive
position as shown in Figure 10.
A more aggressive tine position will throw the hay higher.
