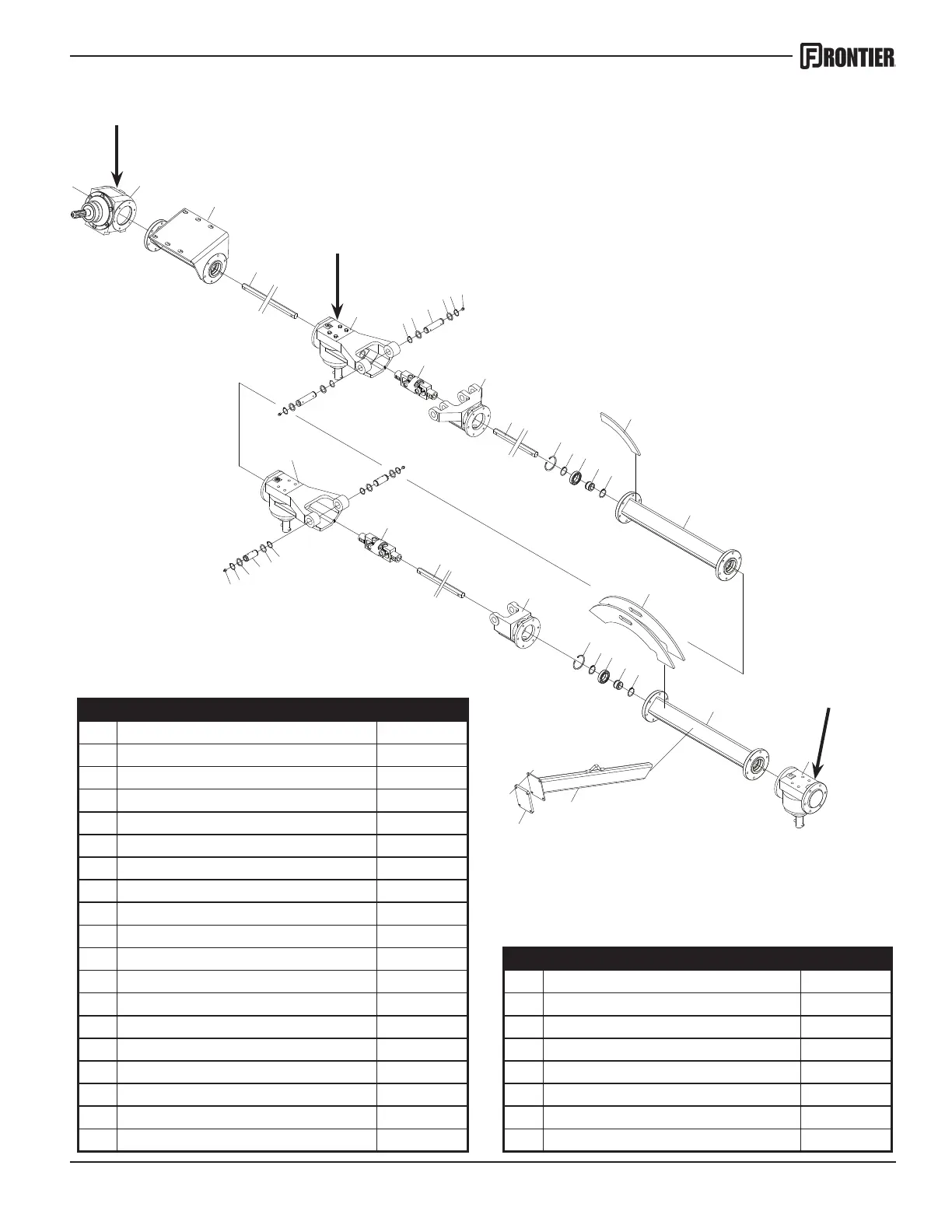

Gearbox Assembly
Ref# Description Part#
1 Input Gearbox Assembly 5PQ702090
2 Center Hex Shaft, 25MM x 63.313 5PQ701190
3 Pivot Rotor Gearbox Assembly, Inner 5PQ702093
4 Retaining Ring, 30MM Ext. 5PQ701138
5a Machinery Bushing 14ga. 5PQ701148
5b Machinery Bushing 10ga. 5PQ701147
6 Pivot Pin 5PQ701139
7 Grease Fitting 5PQ400117
8 Double U-Joint Assembly 5PQ701107
9 Pivot Casting HT150 5PQ702069
10 Center Wing Hex Shaft, 25MM x 42.500 5PQ701192 Ref# Description Part#
11 Retaining Ring, 68MM Int. 5PQ702003 19 Pivot Rotor Gearbox Assembly, Outer 5PQ702091
12 Retaining Ring, 40MM Ext. 5PQ702007 20 Rubber Block 5PQ702560
13 Ball Bearing, 6008-2RS 5PQ702040 21 Wing Support 5PQ702361
14 Bushing, 25mm Hex Bore, 40mm OD 5PQ702039 22 Gearbox Connector Tube 5PQ701163
15 Outer Hex Shaft, 25MM x 37.000 5PQ701191 23 Cylinder Mount Assembly 5PQ700998
16 Pivot Casting 5PQ702057 24 Stop Bracket 5PQ701108
17 Outer Rotor Gearbox Assembly 5PQ702092 25 Center Connecter Assembly, Left 5PQ701600
18 Pivot Pin 5PQ701188 Center Connecter Assembly, Right 5PQ701601
