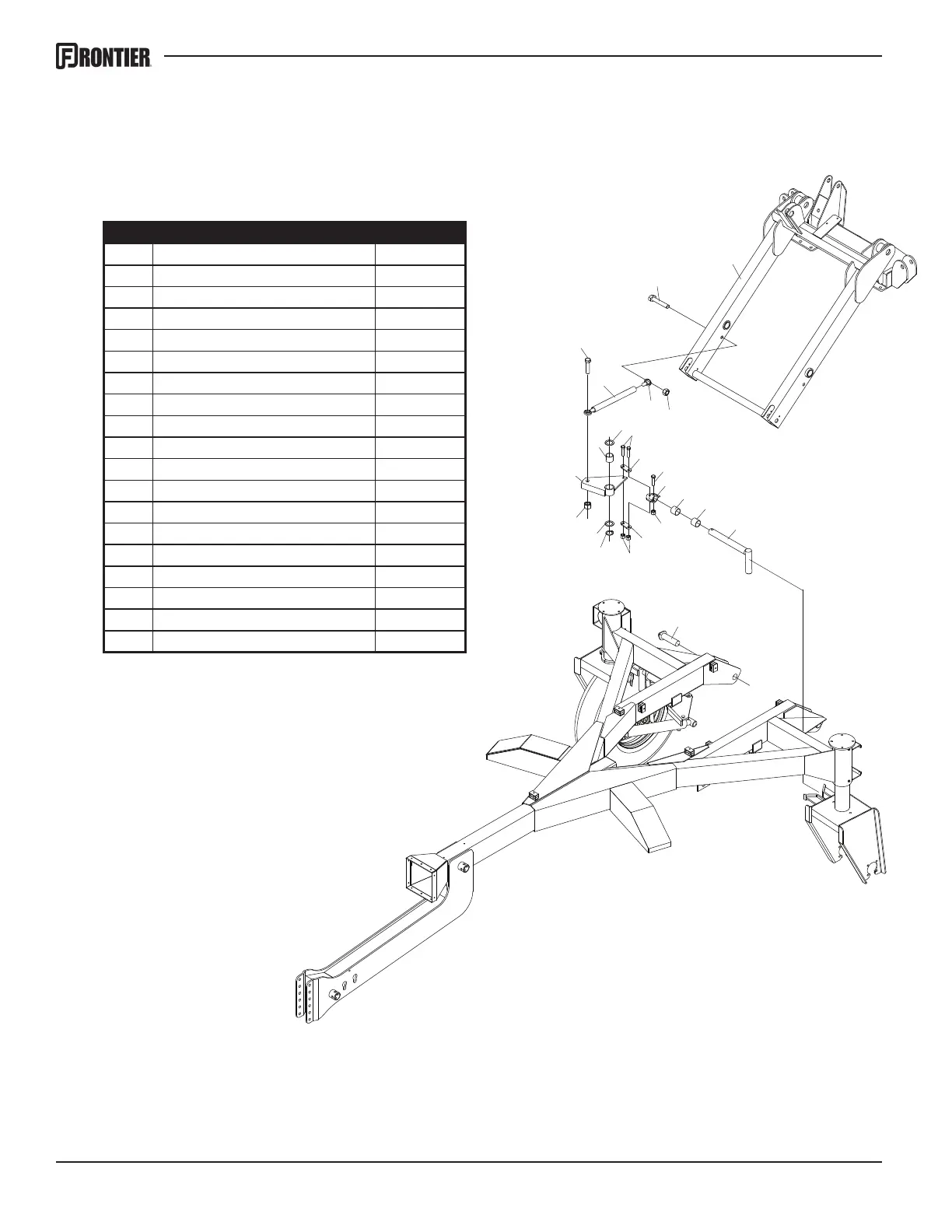

Frontier TD2427 - Transport Lock Assembly

26
Transport Lock Assembly
1
2
3
4
5
6
8
7
9
10
11
12
13
13
14
15
10
15
16
8
17
19
Ref# Description Part#
1 Bolt, 3/4 x 3 5PQ000715
2 Lock Push Arm Assembly 5PQ702402
3 Bolt, 3/4 x 6-1/2 5PQ000766
4 Lift Carriage Assembly 5PQ702323
5 Locknut, 3/4 5PQ000990
6 Ball Joint Swivel 5PQ300044
7 Bronze Bushing 5PQ400311
8 Machinery Bushing 5PQ500197
9 Bolt, 1/2 x 2 5PQ000452
10 Lock Linkage 5PQ702399
11 Bolt, 1/2 x 3 5PQ000470
12 Shaft Guide 5PQ702397
13 Bronze Bushing 5PQ400311
14 Lock Shaft 5PQ702375
15 Locknut, 1/2 5PQ000950
16 1.500 Ext. Retaining Ring 5PQ702423
17 Locknut, 3/4 5PQ000990
18 Pivot Plate 5PQ702400
19 Pivot Pin 5PQ702441
