33

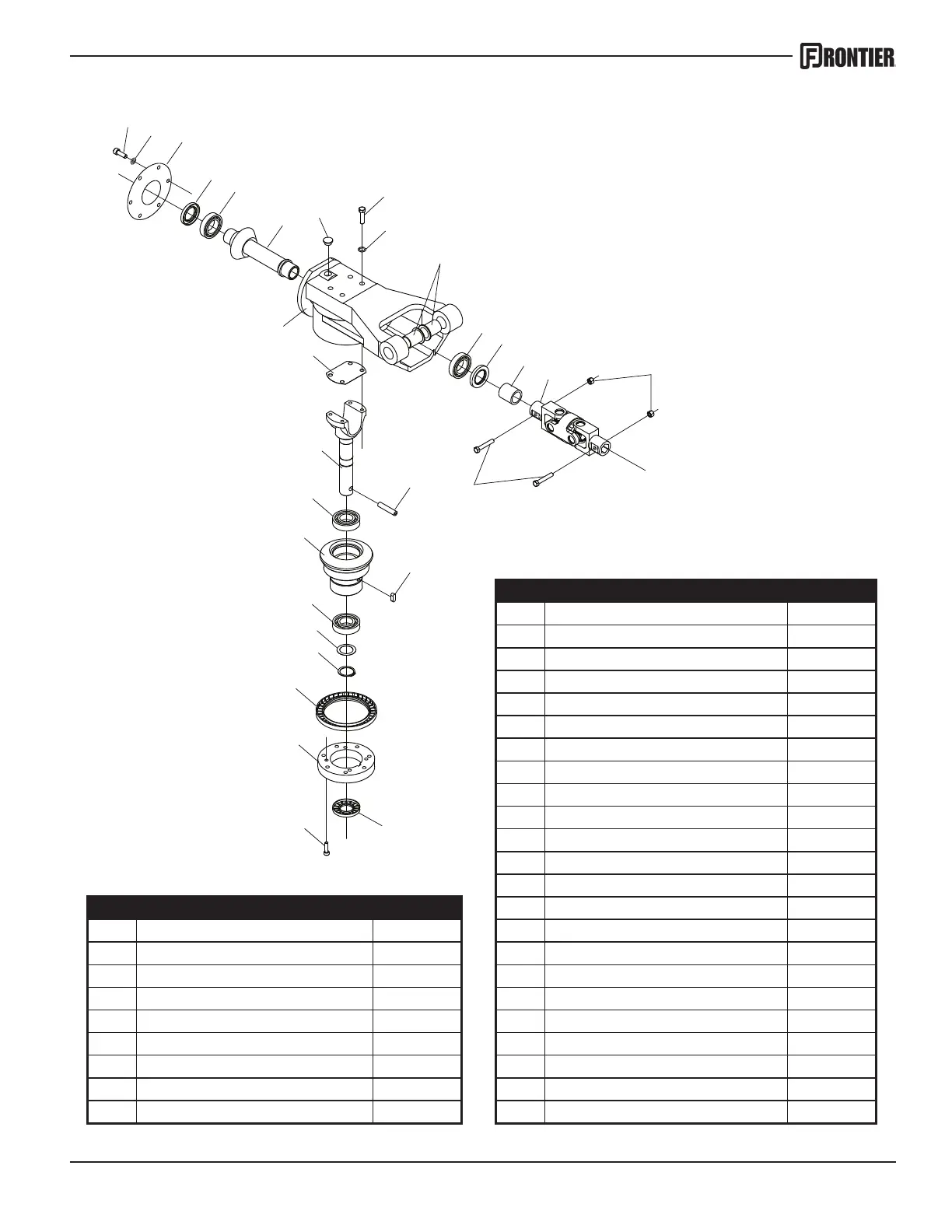

Pivot Gearbox Assembly
1
3
2
4
5
6
7
8
9
10
11
5
4
12
13
14
15
16
17
18
19
20
21
22
23
24
23
25
27
26
Ref# Description Part#
8 Hex Head Bolt, M10 x 40 5PQ002415
9 Split Lock Washer, M10 5PQ002862
10 Bronze Bushing, 35mm x 30mm 5PQ702041
11 Joint Spacer 5PQ701197
12 Double U-Joint 5PQ701107
13 Locknut, 3/8 5PQ003000
14 Bolt, 3/8 x 2-1/4 Grade 8 5PQ000345
15 Roll Pin, 12mm x 60mm 5PQ702019
16 Rectangular Key, 10 x 8 x 20 5PQ702024
17 Seal, 35 x 72 x 8 5PQ702034
18 M8-1.25 x 30 Socket Head Bolt 5PQ002876
19 Rake Flange 5PQ702002
20 Seal, 120 x 160 x 12 5PQ702035
Ref# Description Part# 21 Retaining Ring, 35mm Ext. 5PQ702005
1 Hex Head Bolt, M10 x 40 5PQ002415 22a Shim, 0.2mm 5PQ702022
2 M10 Nord-Lock Washer 5PQ700944 22b Shim, 0.3mm 5PQ702021
3a Shim, 0.1mm 5PQ702030 23 Ball Bearing, 6207 5PQ702046
3b Shim, 0.2mm 5PQ702029 24 Gear, 35 Tooth 5PQ702055
3c Shim, 0.5mm 5PQ702028 25 Spindle Shaft 5PQ702049
4 Seal, 40 x 62 x 8 5PQ702036 26a Shim, Spindle 0.2mm 5PQ702027
5 Ball Bearing, 6008 5PQ702040 26b Shim, Spindle 0.3mm 5PQ702026
6 Pinion, Inboard - 20 Tooth 5PQ702052 26c Shim, Spindle 0.5mm 5PQ702025
7 Breather Plug 5PQ702070 27 Housing, Hinge HT100 5PQ702061
