Frontier TD2427 - Rotor & Tine Arm

29

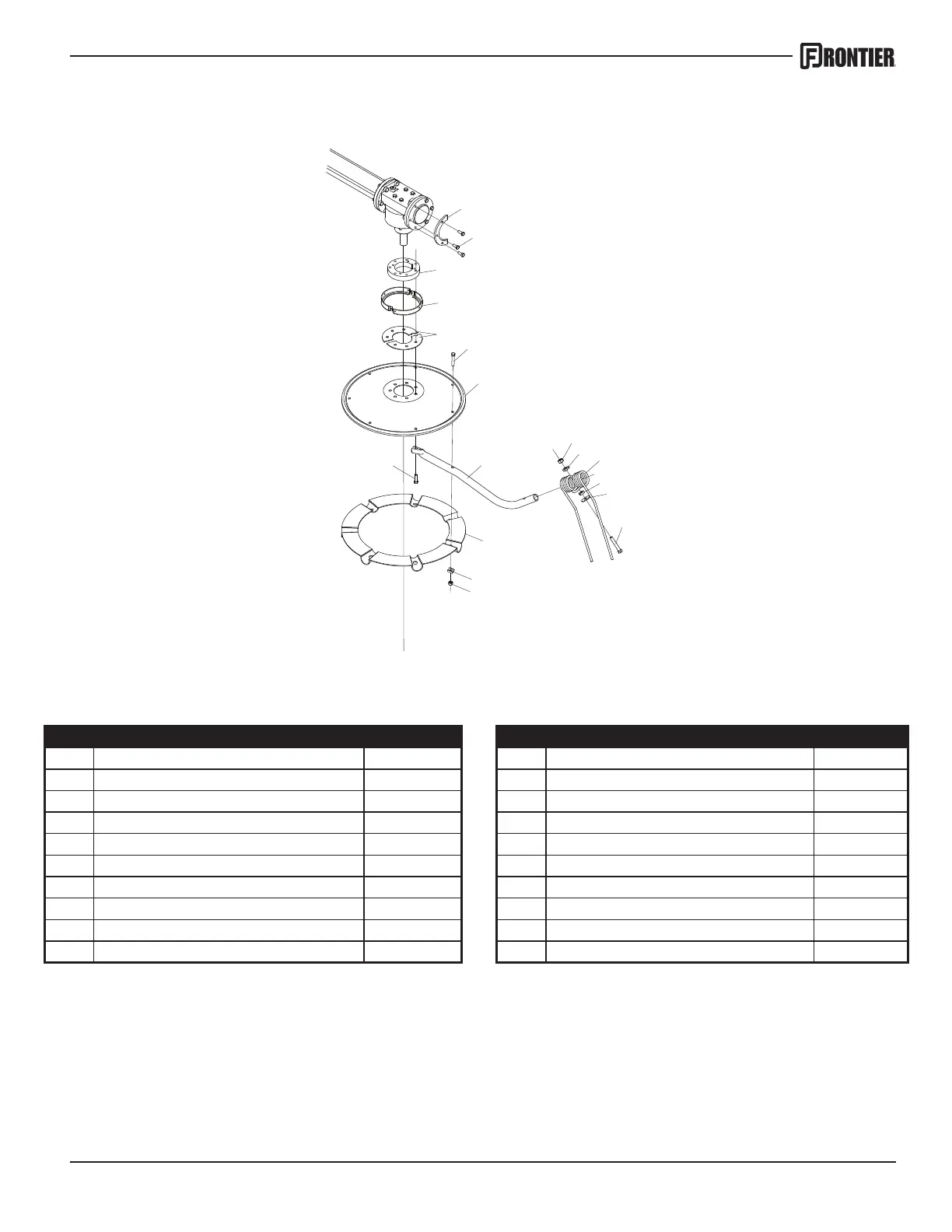

Rotor & Tine Arm
1
2
3
4
6
7
8
9
10
12
14
16
15
17
18
11
13
5
Ref# Description Part# Ref# Description Part#
1 Spacer Plate 5PQ701006 10 Radius Washer 5PQ701008
2 Bolt, M10 x 40 5PQ002415 11 Black Tine, Counter Clockwise Rotation 5PQ700901
3 Rake Flange 5PQ702002 Grey Tine, Clockwise Rotation 5PQ700929
4 Hay Guard (half circle) 5PQ701185 12 Tine Pitch Adjustment Washer 5PQ701005
Hay Guard Kit (2 halves plus hdwr.) 5PQ701185K 13 Bottom Tine Washer 5PQ701004
5 Retaining Plate 5PQ700943 14 Bolt, 1/2 x 3 5PQ000471
6 Bolt, 7/16 x 2-1/2 5PQ000375 15 Retaining Plate 5PQ700942
7 Tine Arm Plate 5PQ700950 16 Radius Washer 5PQ701008
8 Tine Arm 5PQ903153 17 Locknut, 7/16 5PQ000385
9 Lock Nut, 1/2” 5PQ000950 18 Bolt, 7/16 x 1-1/2 Flange Head 5PQ000725
