Frontier TD2427 - Lift Frame Assembly

27

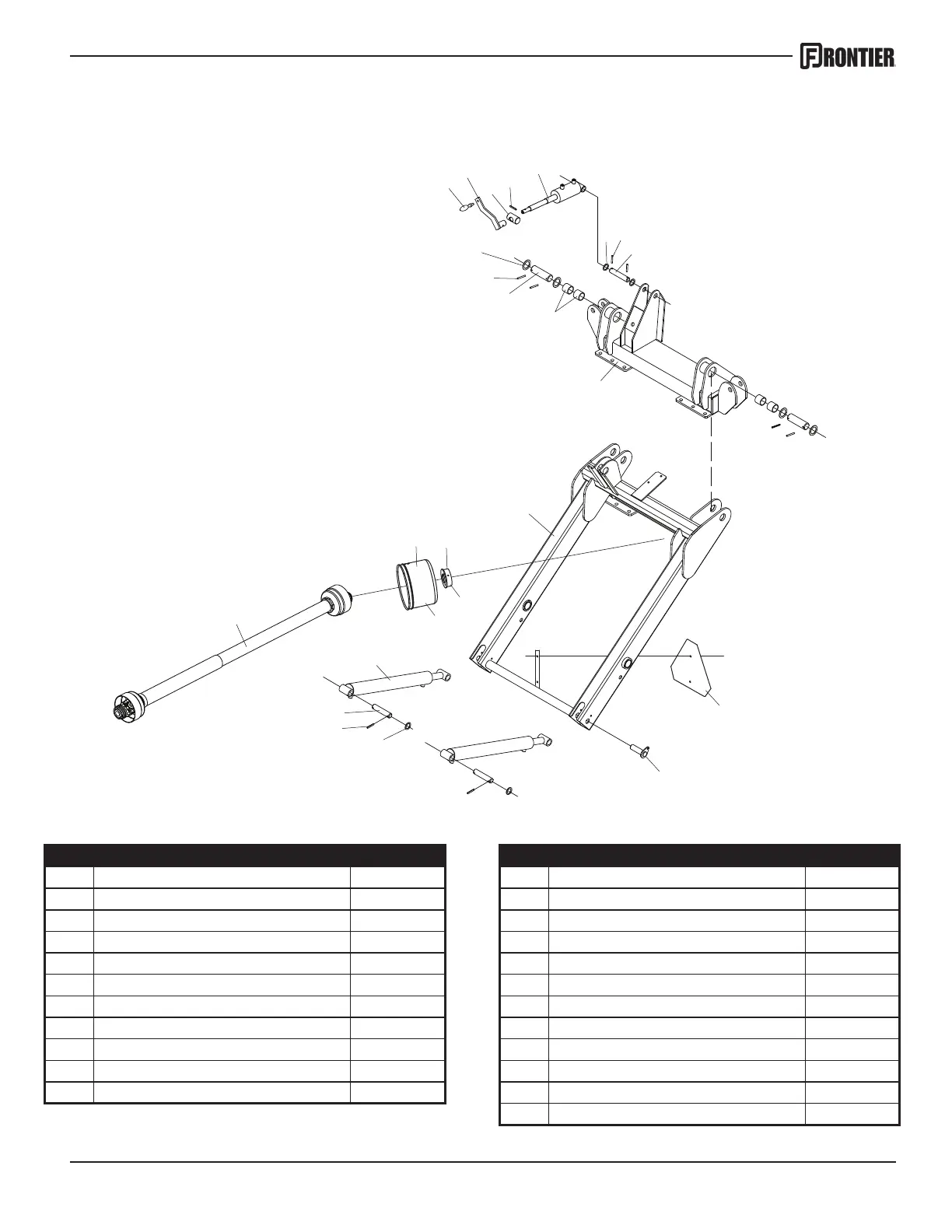

Lift Frame Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
20
Ref# Description Part# Ref# Description Part#
1 Handle 5PQ502149 12 Roll Pin, 1/4 x 1-3/4 5PQ500187
2 Front Cylinder Handle 5PQ502269 13 Cylinder Pin 5PQ701021
3 Threaded Cylinder Mount 5PQ502218 14 Cylinder 5PQ702358
4 Roll Pin, 1/4 x 1-3/4 5PQ500187 15 Lift Carriage Assembly 5PQ702323
5 Tilt Cylinder 5PQ701070 16 Tunnel Assembly 5PQ700997
6 Machinery Bushing 5PQ001008 17 Bronze Bushing 5PQ400311
7 Roll Pin, 1/4 x 1-3/4 5PQ500187 18 Pivot Pin 5PQ701102
8 Cylinder Pin 5PQ701016 19 Roll Pin, 1/4 x 2-1/4 5PQ502282
9 SMV Triangle 5PQ507166 20 Machinery Bushing 5PQ500197
10 Pivot Pin 5PQ702439 21 PTO Shaft Complete 5PQ701202
11 Machinery Bushing 5PQ001008 22 Shield 5PQ701205
23 Shield Mounting Bracket 5PQ701303
