Frontier TD2427 - PTO Shaft Assembly S;N 800350

36

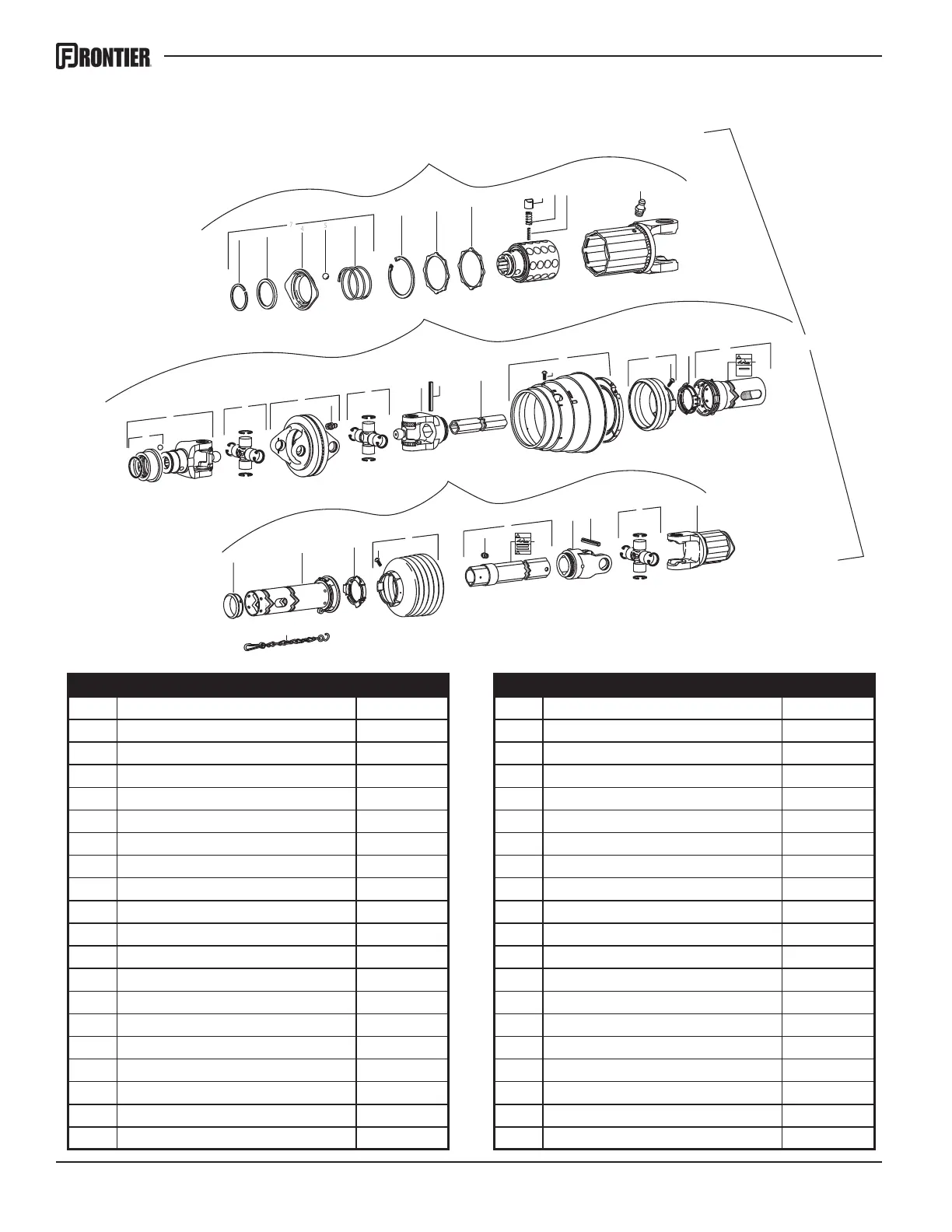

PTO Shaft Assembly 800350+
CLUTCH
7
7
2
5
5
6
4
4
3
8
9
10
11
12
13
14
40
1
SHAFT
15
16
17
19
18
38
21
20
22
23
26
28
25
27
24
23
FRONT
REAR
26
30
31
29
32
23
34
21
36
35
33
37
1
DANGER
!
DANGER
!
DANGER
!
Ref# Description Part# Ref# Description Part#
1 Radial Pin Clutch 5PQ702290 21 Roll Pin, M10 x 75 5PQ702254
2 Retainer Ring 5PQ500048 22 Inner Prole 5PQ702286
3 Flanged Collar 5PQ500047 23 Screw 5PQ500058
4 Lock Collar 5PQ500046 24 CV Cone & Bearing Assembly 5PQ702291
5 Ball 5PQ500044 25 Shied Cone, 3-Rib 5PQ702292
6 Compression Spring 5PQ500045 26 Bearing Ring 5PQ702260
7 Flange Kit 5PQ500050 27 Outer Shield Tube 5PQ702293
8 Retainer Ring 5PQ500043 28 Decal 5PQ500059
9 Thrust Ring 5PQ500042 29 Support Bearing 5PQ702266
10 Seal Ring 5PQ500041 30 Inner Shield Tube 5PQ702294
11 Cam 5PQ500038 31 Safety Chain 5PQ500060
12 Outer Spring 5PQ500039 32 Shield Cone, 6-Rib 5PQ702295
13 Inner Spring 5PQ500040 33 Grease Fitting 5PQ500062
14 Grease Fitting 5PQ500049 34 Prole & Sleeve 5PQ702287
15 Collar Kit 5PQ702279 35 Decal 5PQ500061
16 Yoke 1-3/8” 6-Spline 5PQ702282 36 Inboard Yoke 5PQ702288
17 Cross & Bearing Kit 5PQ702283 37 Cross & Bearing Kit 5PQ702289
18 Double Yoke 5PQ702284 38 Cross & Bearing Kit 5PQ702298
19 Grease Fitting 5PQ500049 Reinforcing Collar (for item 32) 5PQ702296
20 Inboard Yoke 5PQ702285 40 Complete PTO Shaft 5PQ702097
