Frontier TD2427 - PTO Shaft Assembly S;N -800350

35

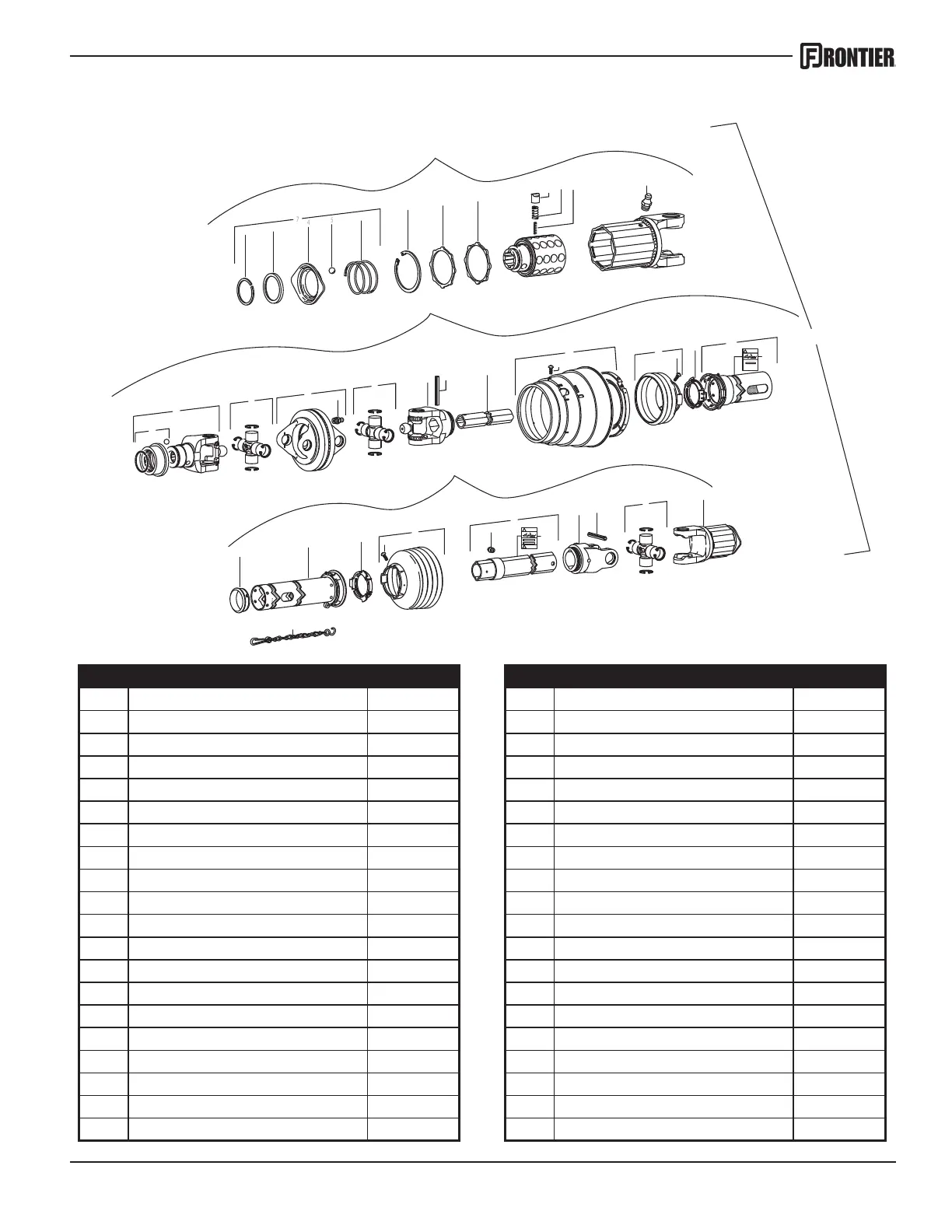

PTO Shaft Assembly -800350
CLUTCH
7
7
2
5
5
6
4
4
3
8
9
10
11
12
13
14
40
1
SHAFT
15
16
17
19
18
17
21
20
22
23
26
28
25
27
24
23
FRONT 38
REAR 39
26
30
31
29
32
23
34
21
36
35
33
37
1
DANGER
!
DANGER
!
DANGER
!
Ref# Description Part# Ref# Description Part#
1 Radial Pin Clutch 5PQ702258 21 Roll Pin, M10 x 75 5PQ702254
2 Retainer Ring 5PQ500048 22 Inner Prole 5PQ702255
3 Flanged Collar 5PQ500047 23 Screw 5PQ500058
4 Lock Collar 5PQ500046 24 CV Cone & Bearing Assembly 5PQ702263
5 Ball 5PQ500044 25 Shied Cone, 3-Rib 5PQ702264
6 Compression Spring 5PQ500045 26 Bearing Ring 5PQ702260
7 Flange Kit 5PQ500050 27 Outer Shield Tube 5PQ702261
8 Retainer Ring 5PQ500043 28 Decal 5PQ500059
9 Thrust Ring 5PQ500042 29 Support Bearing 5PQ702266
10 Seal Ring 5PQ500041 30 Inner Shield Tube 5PQ702262
11 Cam 5PQ500038 31 Safety Chain 5PQ500060
12 Outer Spring 5PQ500039 32 Shield Cone, 5-Rib 5PQ702265
13 Inner Spring 5PQ500040 33 Grease Fitting 5PQ500062
14 Grease Fitting 5PQ500049 34 Prole & Sleeve 5PQ702256
15 Collar Kit 5PQ500064 35 Decal 5PQ500057
16 Yoke 1-3/8” 6-Spline 5PQ702250 36 Inboard Yoke 5PQ702257
17 Cross & Bearing Kit 5PQ702253 37 Cross & Bearing Kit 5PQ702259
18 Couble Yoke 5PQ702251 38 Front Half Assembly 5PQ702267
19 Grease Fitting 5PQ500049 39 Rear Half Assembly 5PQ702268
20 Inboard Yoke 5PQ702252 40 Complete PTO Shaft 5PQ701142
