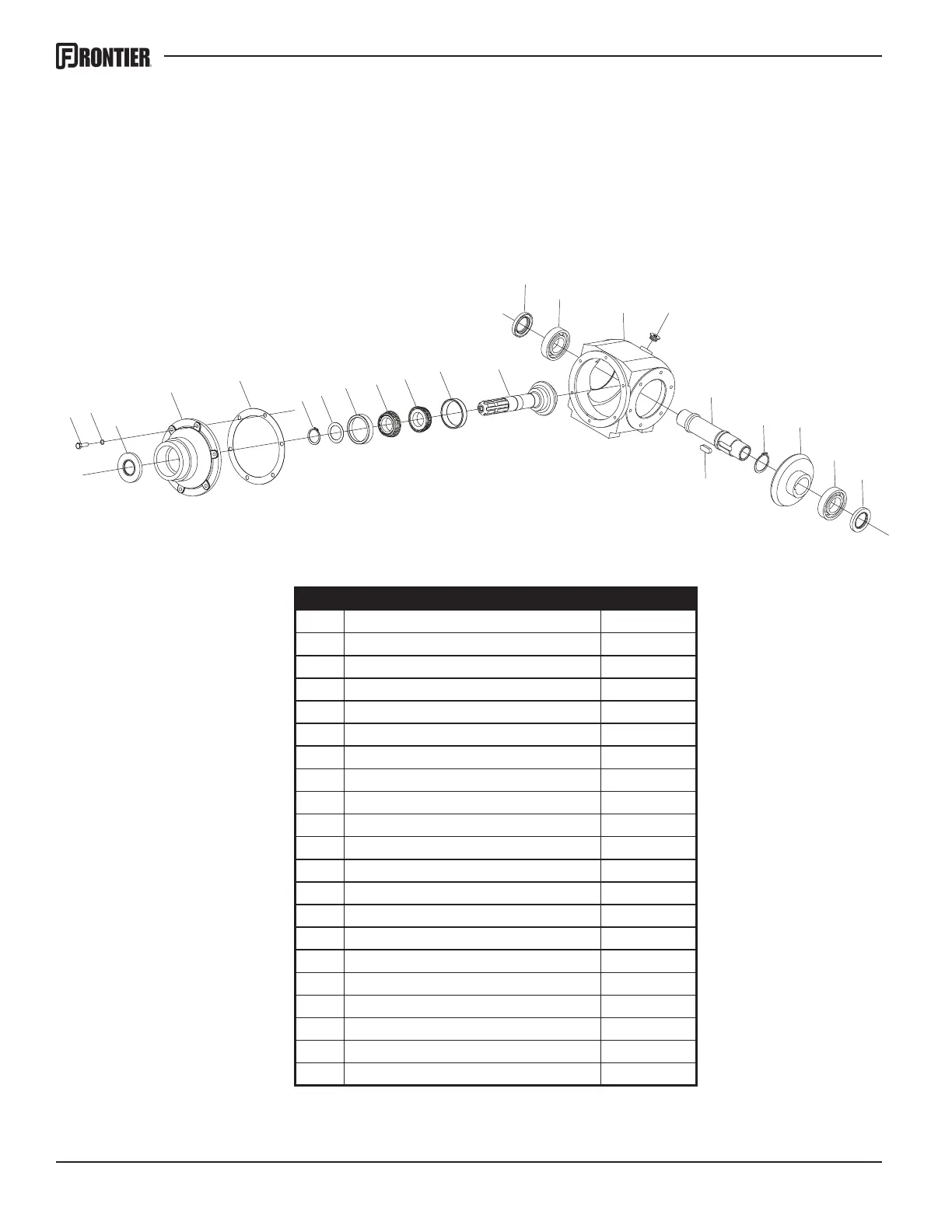

Frontier TD2427 - Input Gearbox Assembly

32
Input Gearbox Assembly
3
2
1
4
5
6
7
8
9
9
8
10
11
12
13
15
14
16
17
12
11
18
Ref# Description Part#
1 M8-1.25 x 30 Hex Head Bolt 5PQ002875
2 Lockwasher, M8 5PQ002860
3 Oil Seal, 35 x 72 x 8 5PQ702034
4 Cap, Cantilevered 5PQ702059
5a Shim, Cantilevered Cap 0.1MM 5PQ702033
5b Shim, Cantilevered Cap 0.2MM 5PQ702032
5c Shim, Cantilevered Cap 0.5MM 5PQ702031
6 Retaining Ring, 35MM Ext. 5PQ702005
7a Shim, 0.2MM 5PQ702022
7b Shim, 0.3MM 5PQ702021
8 Bearing, Tapered Cup - 30207 5PQ702043
9 Bearing, Tapered Cone - 30207 5PQ702042
10 Pinion, 20 tooth 1-3/8 - 6A Spline 5PQ702056
11 Seal, 40 x 62 x 8 5PQ702036
12 Ball Bearing, 6208 5PQ702045
13 Housing, HT75B 5PQ702062
14 Breather Plug 5PQ702070
15 Shaft, Hex Bore 5PQ702047
16 Retaining Ring, 45MM Ext. 5PQ702006
17 Gear, 35 Tooth 5PQ702053
18 Rectangular Key, 12 x 8 x 32 5PQ702023
