25

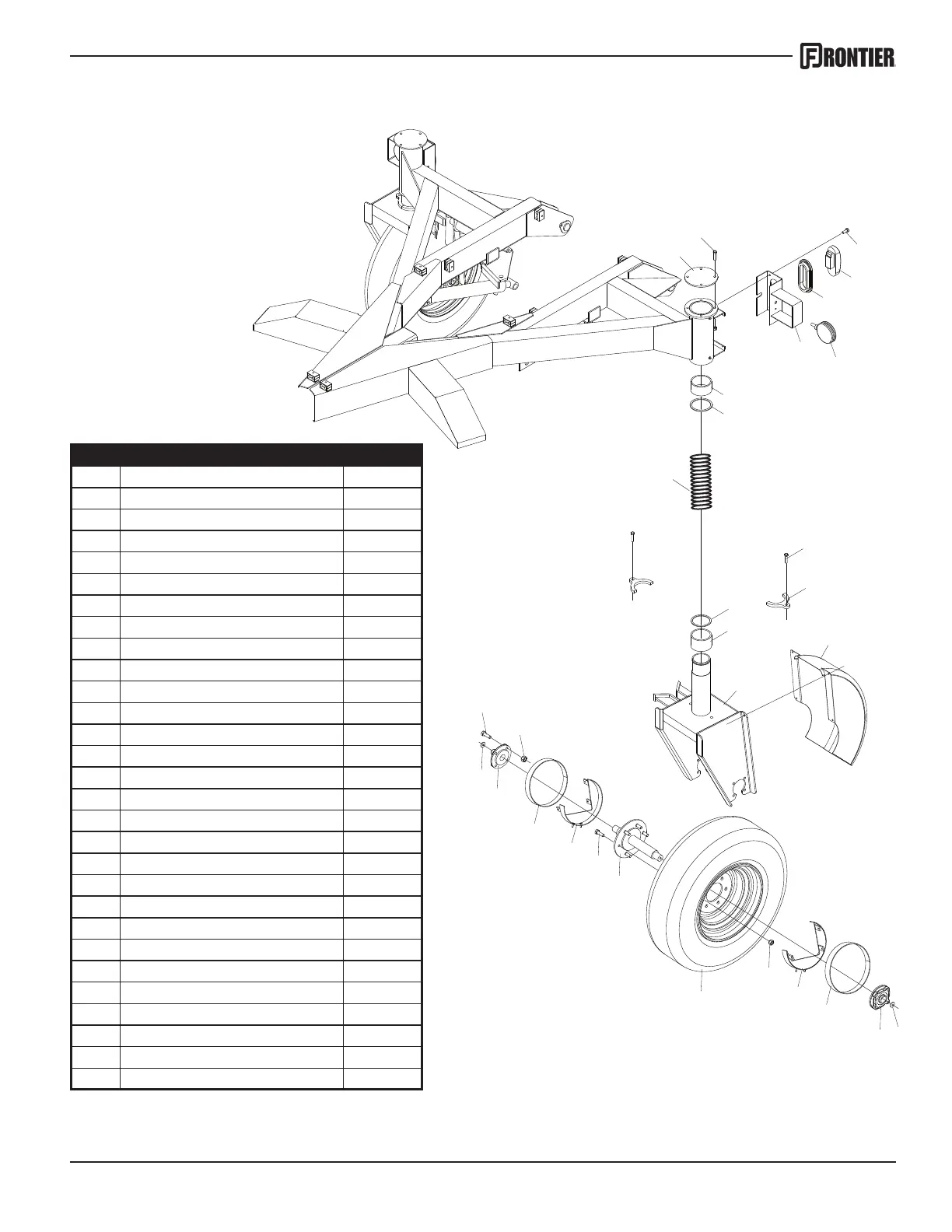

Transport Axle Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
19
20
21
22
16
15
17
18
17
15
23
24
25
27
26
Ref# Description Part#
1 Spring Cap 5PQ702412
2 Bolt, 3/8 x 1-1/4 5PQ000275
3 Bolt, 1/4 x 3/4 5PQ000170
4 Oval Taillight, Red 5PQ100139
5 Oval Grommet 5PQ100140
6 Round Taillight, Amber 5PQ507164
7 Light Box 5PQ702506
8 Bronze Bushing 5PQ702339
9 3.500 Ext. Ring 5PQ702409
10 4” Ext.Spiral Retaining Ring 5PQ702408
11 Bronze Bushing 5PQ702340
12a Dolly Wheel Frame, Left 5PQ702107
12b Dolly Wheel Frame, Right 5PQ702108
13 Bolt, 1/2 x 1-1/2 5PQ000435
14 Dolly Spacer 5PQ702424
15 Spindle Washer 5PQ702354
16 1-1/4 Cartridge Bearing 5PQ702349
17 Hay Wrap Plastic Strip 5PQ702112
18 Hay Wrap Guard, Left 5PQ702113
19 Tapered Wheel Nut 5PQ101458
20 Wheel & Tire Assembly 5PQ702105
21 Wheel Shaft Weldment 5PQ702120
22 Bolt, 1/2-20 x 1-1/2 Grade 8 5PQ000436
23 Hay Wrap Guard, Right 5PQ702114
24 Bolt, 7/16 x 1-1/2 5PQ000360
25 Nut, 7/16 5PQ000935
26 Compression Spring 5PQ702370
27 Wheel Fender (Optional) 5PQ701216
Wheel Fender Option (Complete Set) 5PQ740020
