Frontier TD2427 - Outer Gearbox Assembly

34

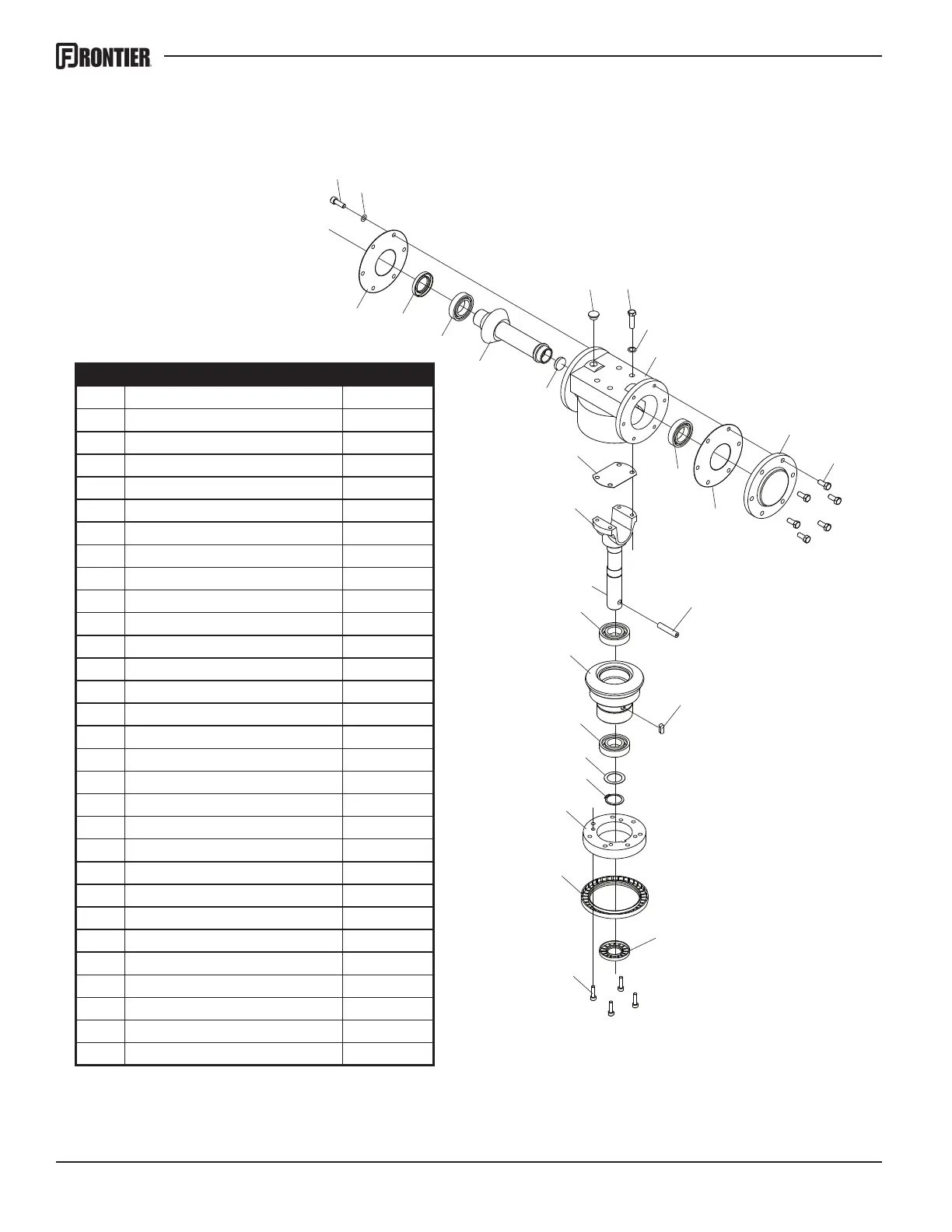

Outer Gearbox Assembly
1
2
3
4
6
5
7
8
11
12
13
14
15
16
17
18
19
20
19
21
22
23
24
10
10
25
9
9
Ref# Description Part#
1 Hex Head Bolt, M10 x 40 5PQ002415
2 M10 Nord-Lock Washer 5PQ700944
3 Breather Plug 5PQ702070
4 Hex Head Bolt, M10 x 40 5PQ002415
5 Split Lock Washer, M10 5PQ002862
6 Housing, HT75B Outboard 5PQ702060
7 Cap, Blank 5PQ702058
8 M10-1.50 x 25 Hex Head Bolt 5PQ002405
9a Shim, 0.1mm 5PQ702030
9b Shim, 0.2mm 5PQ702029
9c Shim, 0.5mm 5PQ702028
10 Ball Bearing, 6008 5PQ702040
11 Roll Pin, 12mm x 60mm 5PQ702019
12 Rectangular Key, 10 x 8 x 20 5PQ702024
13 Seal, 35 x 72 x 8 5PQ702034
14 M8-1.25 x 30 Socket Head Bolt 5PQ002876
15 Seal, 120 x 160 x 12 5PQ702035
16 Rake Flange 5PQ702002
17 Retaining Ring, 35mm Ext. 5PQ702005
18a Shim, 0.2mm 5PQ702022
18b Shim, 0.3mm 5PQ702021
19 Ball Bearing, 6207 5PQ702046
20 Gear, 35 Tooth 5PQ702055
21 Spindle Shaft 5PQ702049
22a Shim, Spindle 0.2mm 5PQ702027
22b Shim, Spindle 0.3mm 5PQ702026
22c Shim, Spindle 0.5mm 5PQ702025
23 Plug, Pressed Fit 5PQ702014
24 Pinion, Outboard - 20 Tooth 5PQ702054
25 Seal, 40 x 62 x 8 5PQ702036
