ELECTRICAL
Your tedder is equipped with lights to be used when transporting on public roads. Make sure the wir-

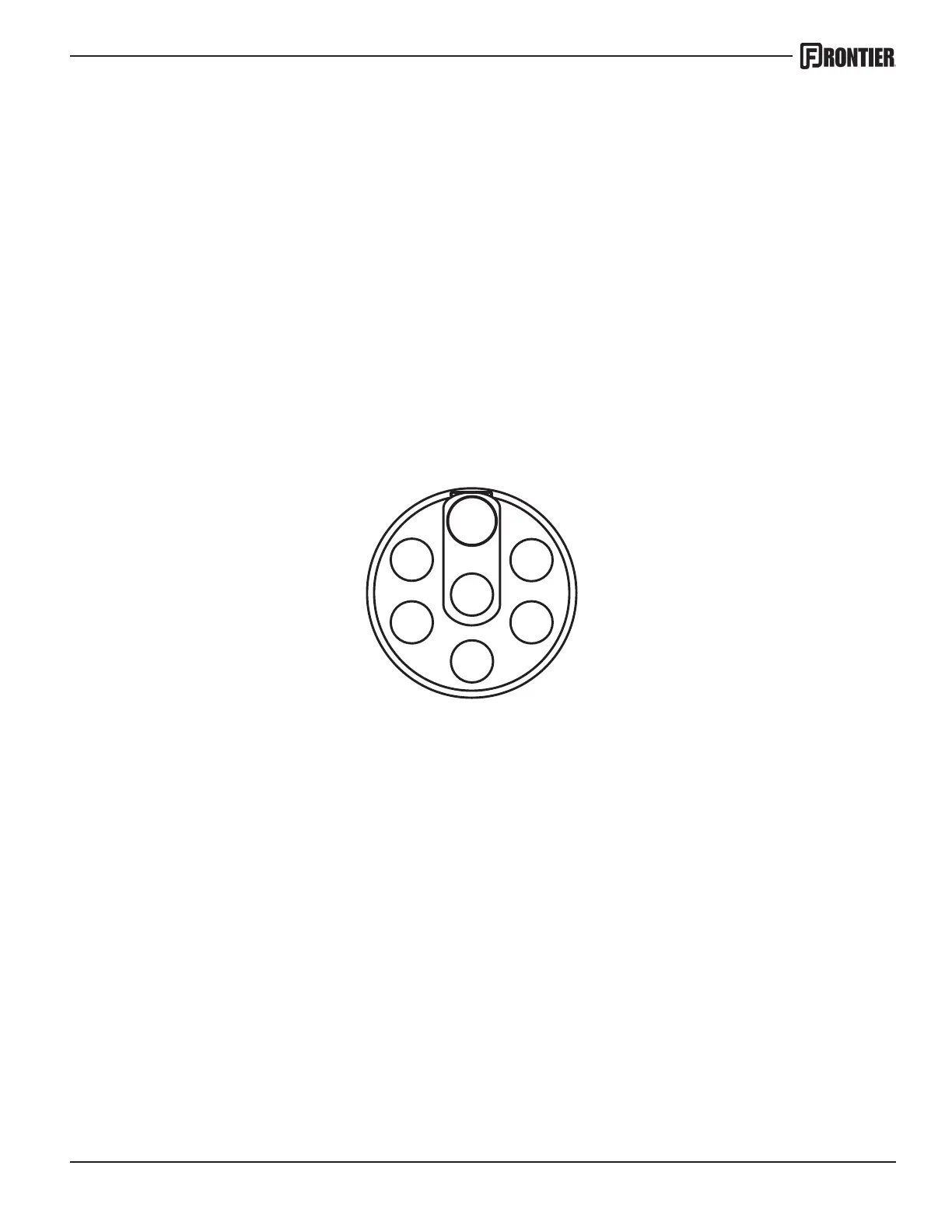

ing and the lights are kept fully functional at all times. Shown below is the wiring diagram for the 7-pin
connector plug and the color code used for all Frontier equipment and trailers. The drawing is shown
looking at the back side of the plug insert. NOTE: this is showing the full wiring schematic for this type
of plug. The tedder only uses four of these wires; #1, #3, #5, & #6.
1
2
3
4
7
6
5
Position Function Wire Color
1 Ground White
2 Spare Circuit
3 Left Turn Signal Yellow
4 Auxiliary Red
5 Right Turn Signal Green
6 Running Lights Brown
7 Electric Brakes Black
Wiring Schematic for 7-Pin Wiring Plug
