30

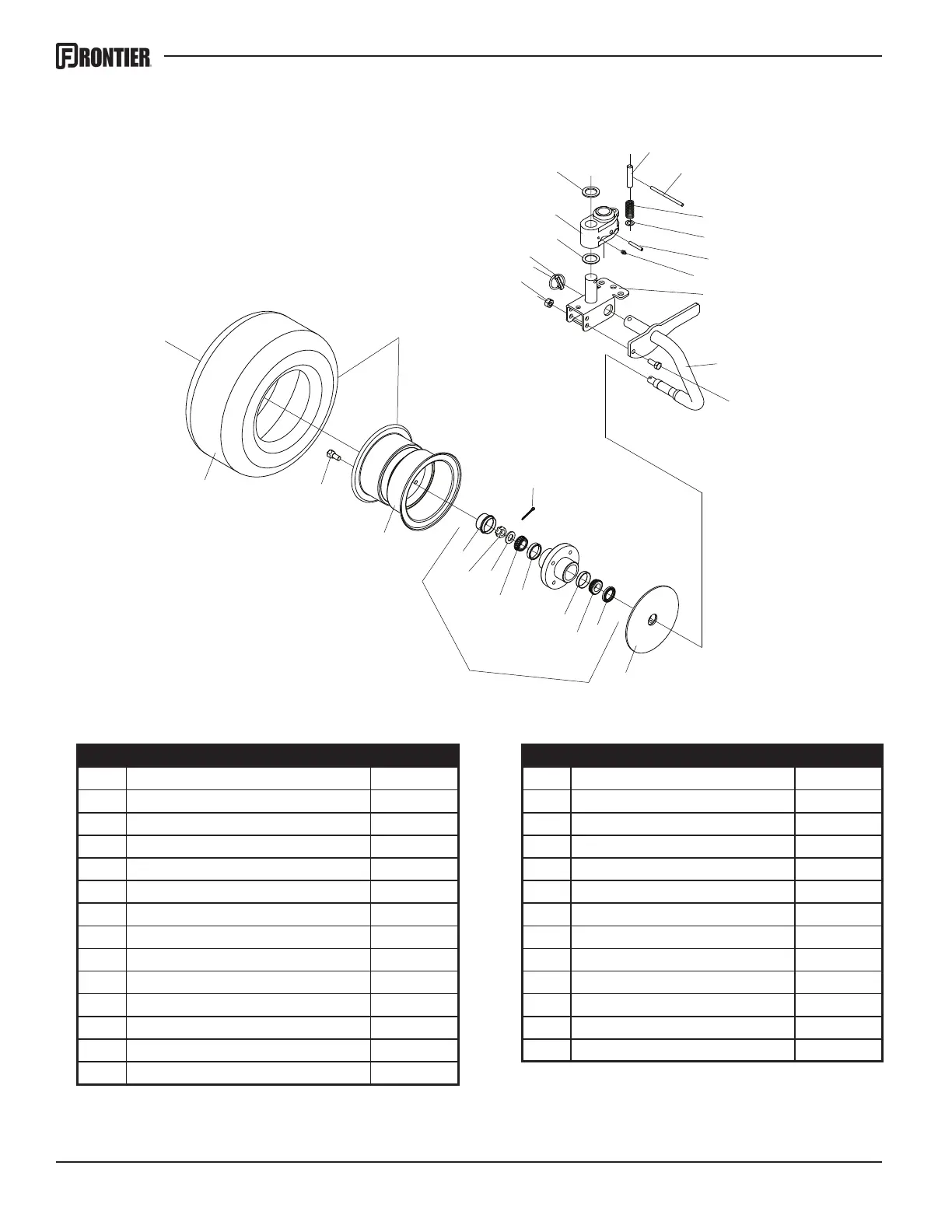

Axle Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
13
12
14
15
16
17
18
19
20
22
21
23
24
25
26
25
Ref# Description Part# Ref# Description Part#
1 Spindle Adjustment Pin 5PQ701026 14 Spindle Washer 5PQ500206
2 Spindle Adjustment Handle 5PQ701025 15 Spindle Nut 5PQ500207
3 Spindle Adjustment Spring 5PQ701027 16 Dust Cap 5PQ500209
4 Machinery Bushing, 5/8” 5PQ401442 17 Complete Hub 5PQ500199
5 Roll Pin, 12mm x 60mm 5PQ702019 18 4-Bolt Rim 5PQ500222
6 Grease Fitting, M8 x 1 5PQ702015 19 Lugbolt 5PQ500210
7 Spindle Mounting Assembly 5PQ700913 20 Tire, 215/60-8 5PQ500221
8 Spindle Assembly, Left 5PQ700960 21 Tire & Wheel Assembly 5PQ500220
Spindle Assembly, Right 5PQ700961 22 Cotter Pin 5PQ500208
9 Bolt, 1/2 x 1-1/4 5PQ000421 23 Locknut, 1/2” 5PQ000950
10 Wheel Cover Assembly 5PQ701002 24 Lynch Pin 5PQ701048
11 Grease Seal 5PQ500201 25 Machinery Bushing, 1-3/8 5PQ001505
12 Bearing, L44643 5PQ500202 26 Spindle Mounting Bracket 5PQ701200
13 Race, L44610 5PQ500204
