USING YOUR FLLUID

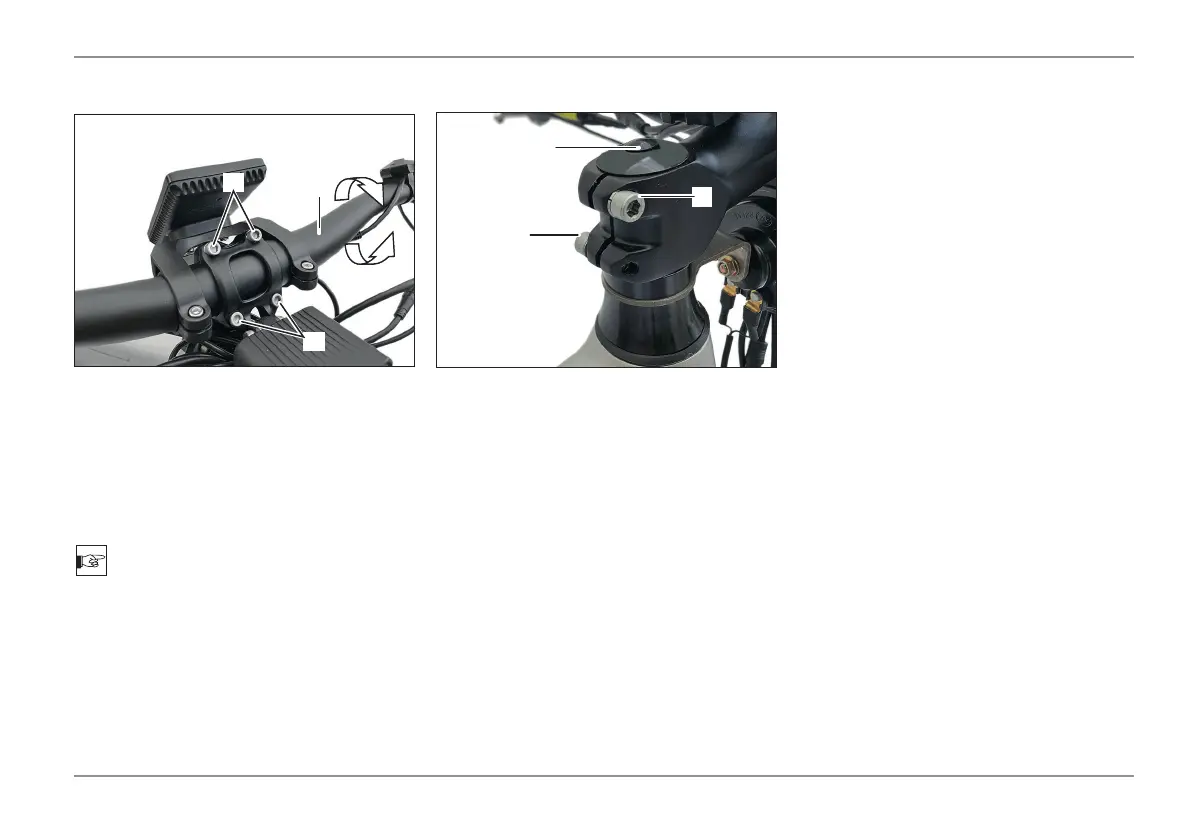

Handlebar Adjustment
- Loosen the 4 Allen screws (1) of the
handlebar clamp with a 4 mm Allen key.
- Determine the handlebar position and
tighten the handlebar (2) with the hexa-
gon socket screws (1).
NOTE
Ensure tension-free routing of the cables and
avoid extreme adjustment of the handlebars
upwards or downwards.
Align handlebar stem with handlebar
Align the stem with the handlebar and
tighten the two Allen screws (1) to 7-9 Nm
with the 5 mm Allen key.
Tighten the cap on the hexagon socket
screw (3) with a 5 mm hex wrench to a
torque of 3-4 Nm.
Check setting of the stearing head bear-
ing, adjust if necessary by loosening the
screws (1) and adjusting the screw (3).
1
2
1
1
1
3
