FUELL Flluid 1 - Front Wheel Maintenance for Transport

Flluid 1
45
Removal:
- Completely open the quick release lever
(1) and press the quick release axle (2)
through the dropouts and pull out.
- Remove the front wheel (3) from the
fork downwards.
WARNING
Failure to completely close the quick
release lever can result in it coming open.
Thiscan lead toserious falls.Theip
of the quick-release lever must be tight
enough that it requires the palm of your
hand for the tension to be tight enough.
Position A = OPEN
Position B = CLOSED
Install:
- Insert the front wheel (3) into the dropouts
(4) of the front fork
- Make sure that the brake pads (5) on
the disc brake do not tilt.
- Insert the thru-axle (2) until it clicks. The
segment ange (6) in the front fork must
be spread.
- Preload and close the quick release lever (1).
- Close quick release lever (1).
- The quick release lever (1) must point
upwards and close with a noticeable
counter pressure.
Check the function of the front wheel
brake!

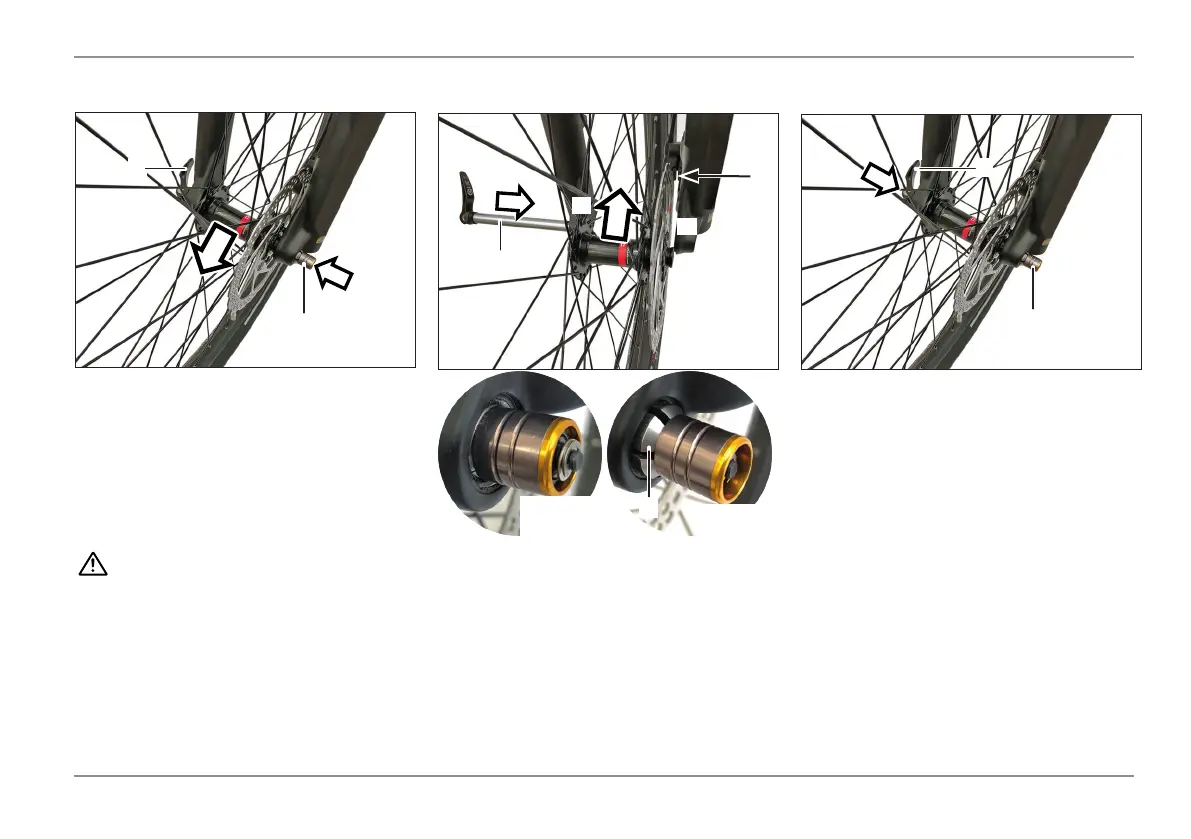

Removing and installing front wheel for transport
